SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Page 8.3
8.3. BRAKE WINDING POSITIONING

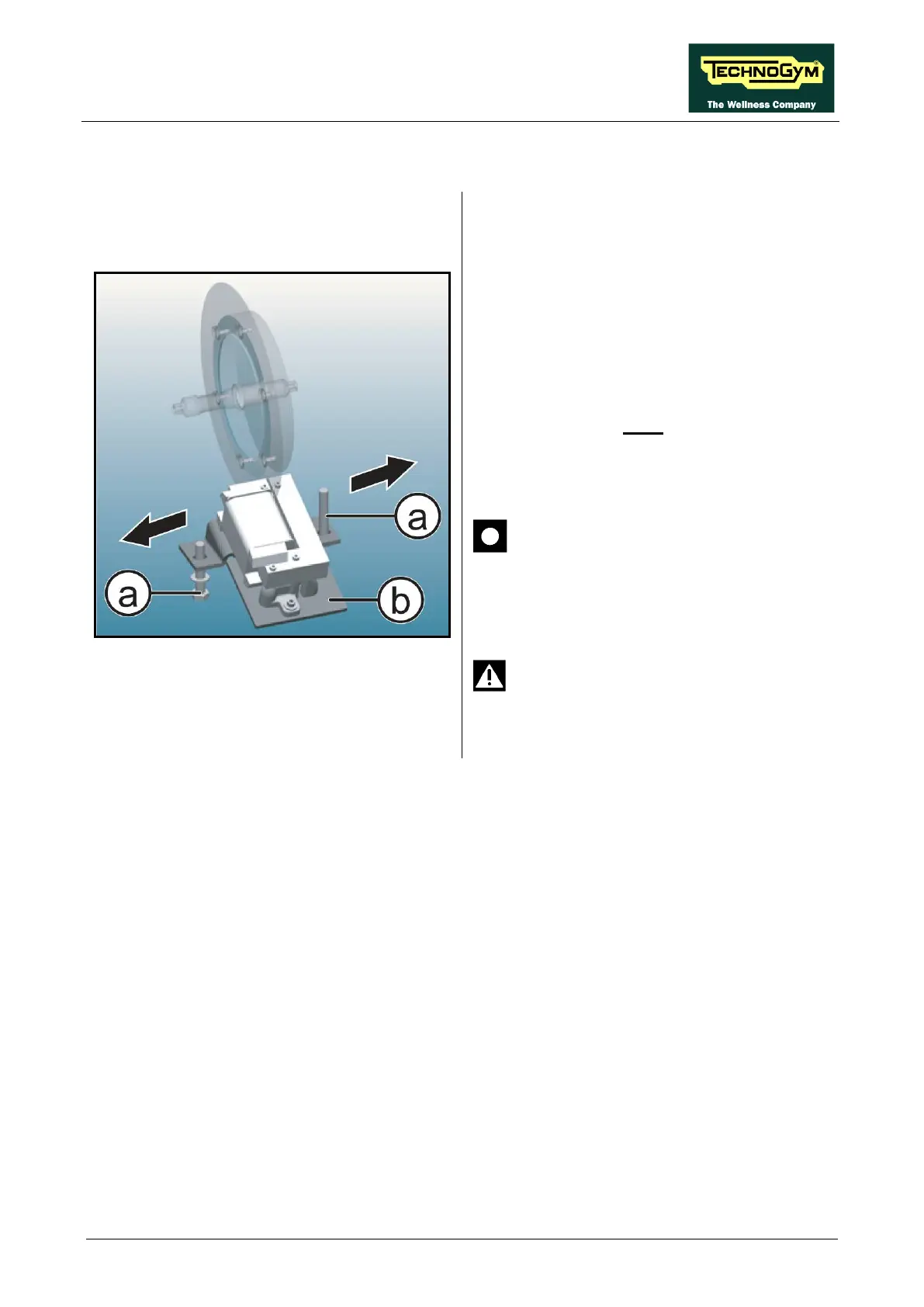

Figure 8.3-1
Carry out the operations described in
paragraph: 7.7.1. “Rear guard”.
1. Loosen the 2 screws (a) with a 17mm
wrench.
2. Move the brake winding plate support (b),
horizontally as indicated by arrows,
the copper disk is centred on
winding, using a 1mm thickness gauge.
3. Tighten again the screws.
ATTENTION: To correctly adjust the
brake position, test the machine at high
levels and check that the flywheel it is not
touching on it.
WARNING: Use a flatness comparator to
check the copper disk flatness, the
permissible margin is
0.15 mm.
