SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Page 7.37

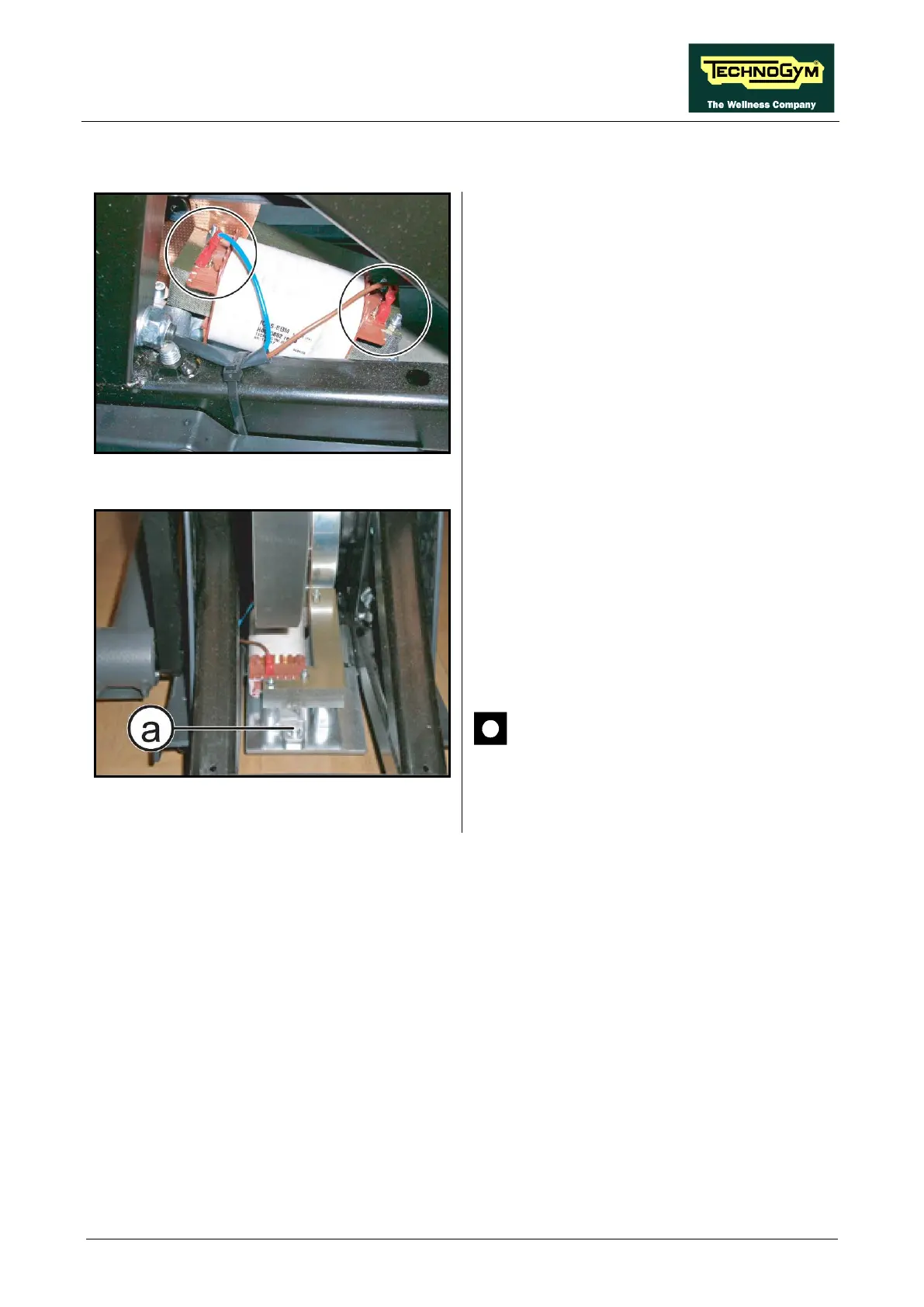

7.13. BRAKE WINDING DISASSEMBLY
Figura 7.13-1
Carry out the operations described in
paragraph: 7.7.1. “Rear guard”.
1. Disconnect the 2 fast-on highlighted in the
figure.
Figure 7.13-2
2. Back off the screw (a) with a 4mm hexagonal
wrench, on both sides.
3. Remove the brake winding from the bottom
and replace if necessary.
To reassemble the brake winding, carry out the
above steps in reverse order.
After completing the reassembly,
carry out the adjustment procedure
described in paragraph: 8.3. “Brake
winding positioning”.
