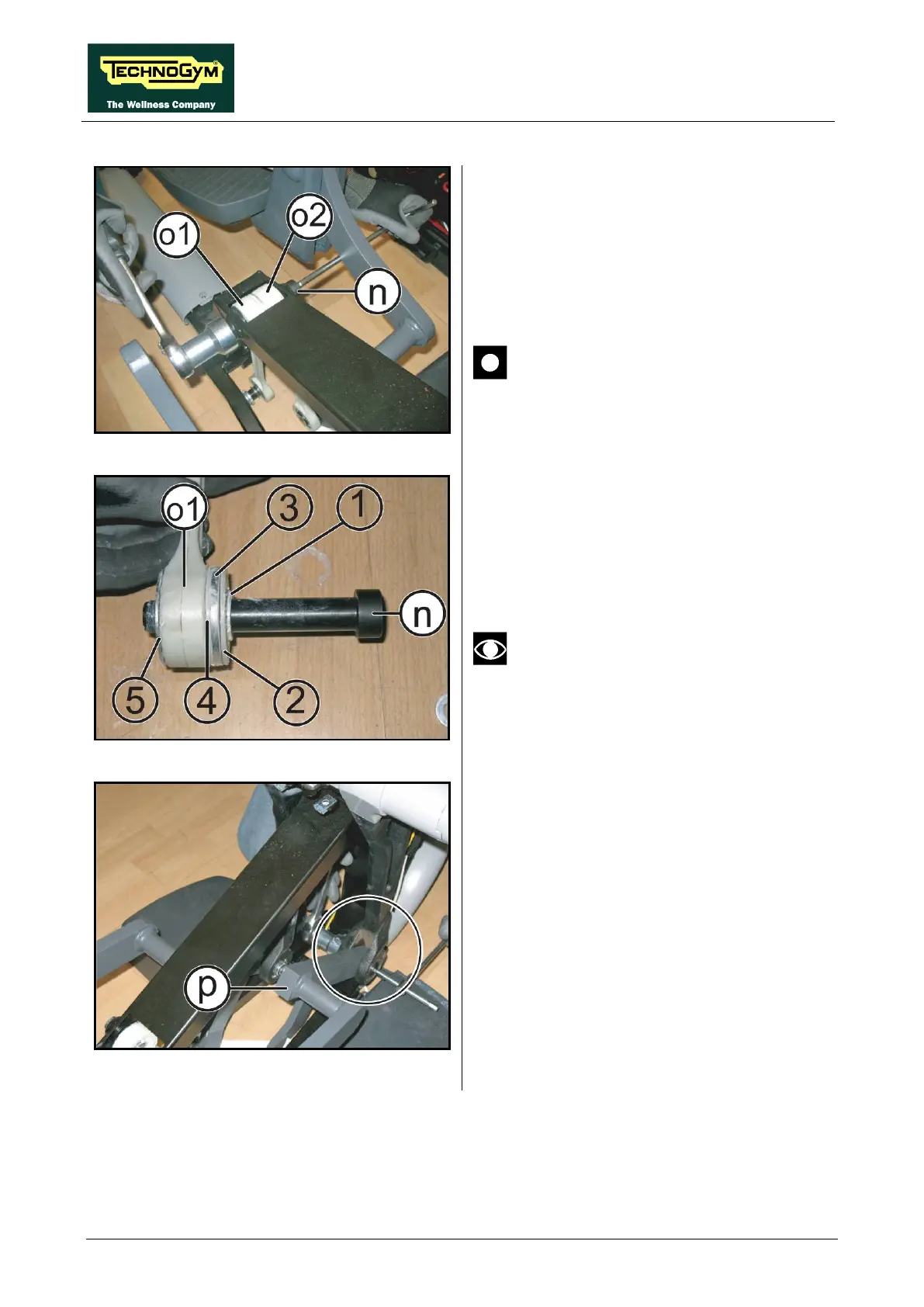

Figure 7.12-12
12. Back off the pin (n) with a 6mm hexagonal
wrench, locking the ring nut on the opposite
side using a 25mm ring nut spanner.
13. Remove the central lever (o1) and/or (o2).
ATTENTION: During reassembly lock
down the ring nut using a torque wrench
setting of 50Nm.
Figure 7.12-13
14. During the reassembly, respect the sequence
of the spacers and the washers
reassembli the two levers (o1) and (o2).
Place some grease on the levers shaft,
before reassembly.
Figure 7.12-14
15. Relase the lever (p) from the pin highlight in
figure, using a 6mm
locking it the opposite ring nut with a 25mm
ring nut spanner.
16.
At this point is possible to remove the lever
(p) from the frame.
