SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Pagina 7.44
7.16. BATTERY DISASSEMBLY
Only for self-powered version (500SP and 700SP).

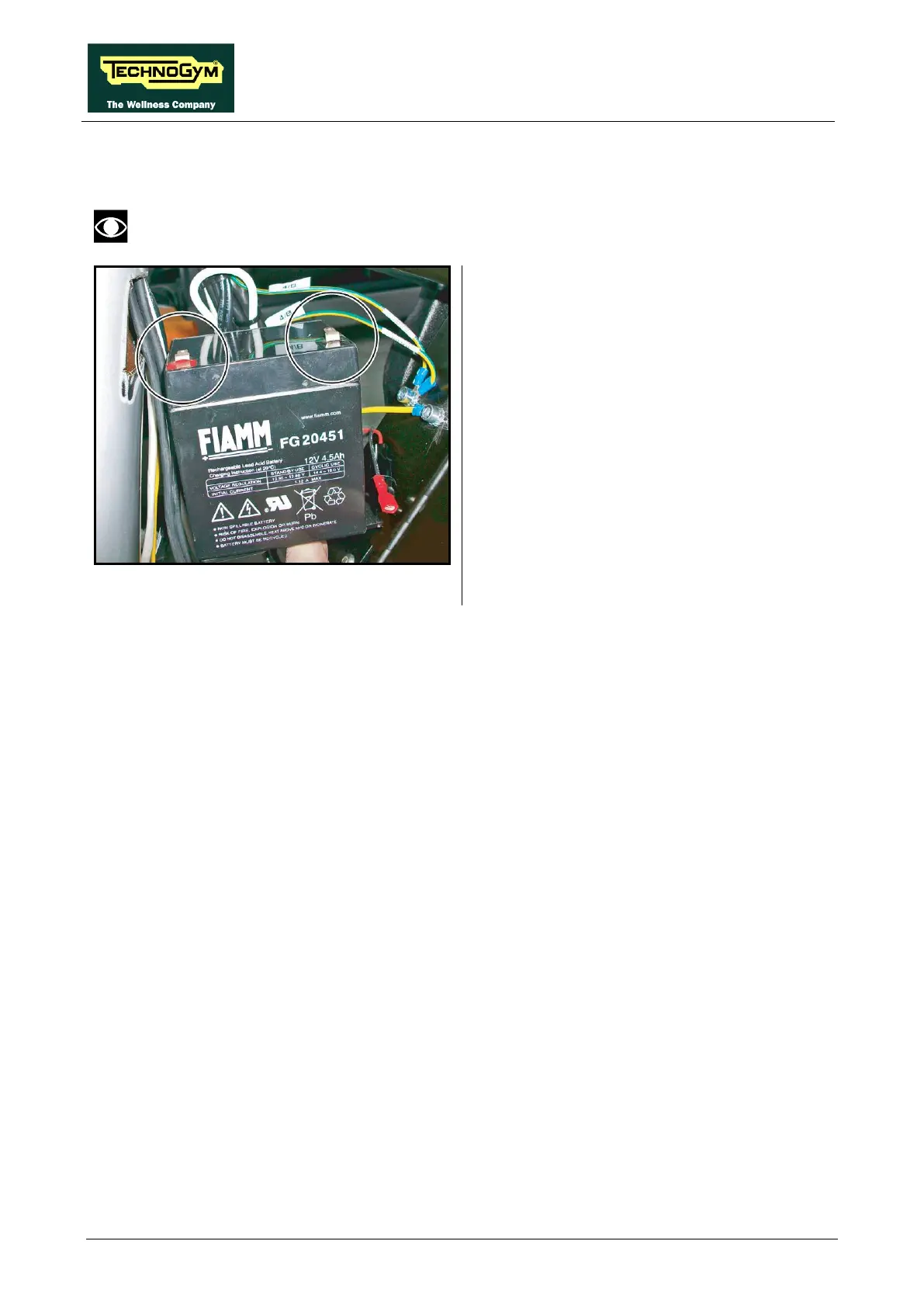

Figure 7.16-1
Carry out the operations described in
paragraphs: 7.7.2. “Front guards” and 7.7.3. .
1. Disconnect the 2 fast-on highlighted in the
figure
2. Remove the battery.
To reassemble the battery, carry out the above
steps in reverse order
