Technogym SYNCHRO EXCITE 2009 - 700 WTV Version (Wellness TV)

SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Pagina 7.6
7.2.3. 700WTV VERSION (WELLNESS TV)

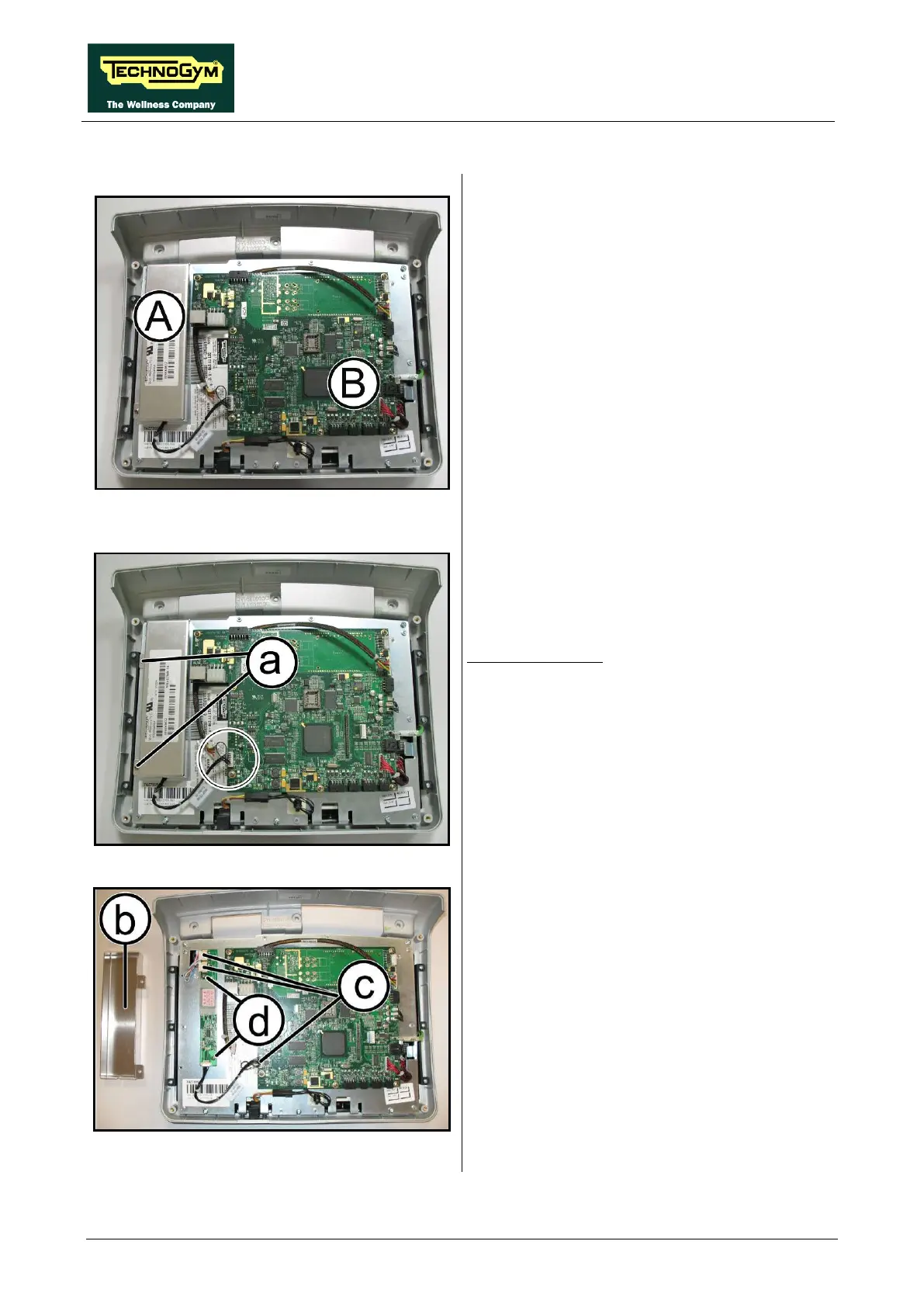

Figure 7.2-7
Carry out the operations described in
paragraphs:
Errore. L'origine riferimento non
è stata trovata.“
Errore. L'origine riferimento
non è stata trovata.”.
Then place the display on a work bench. It is
now possible to disassemble its circuit boards:
• The LCD inverter (A),
• The CPU Board (B).
And the circuit boards mounted on the rear
display support:
• Digital TV Board
•
Input AUX Board
Figure 7.2-8
LCD inverter (A):
1. Back off the 2 screws (a)
with a medium
Phillips screwdriver
2.
Disconnect the circled connector, shown in
the figure.
Figure 7.2-9
3. Remove the covering plate (b)
of the LCD
inverter.
4. Disconnect the connectors (c) [CN2 – CN3-
CN5].
5. Back off the 2 screws (d)
, which fix the
board to the display plate.
6. Remove the LCD inverter.
Continued in following page →
