SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Page 7.45
7.17. FOOTBOARDS, POWER ENTRY MODULE AND WHEELS
DISASSEMBLY

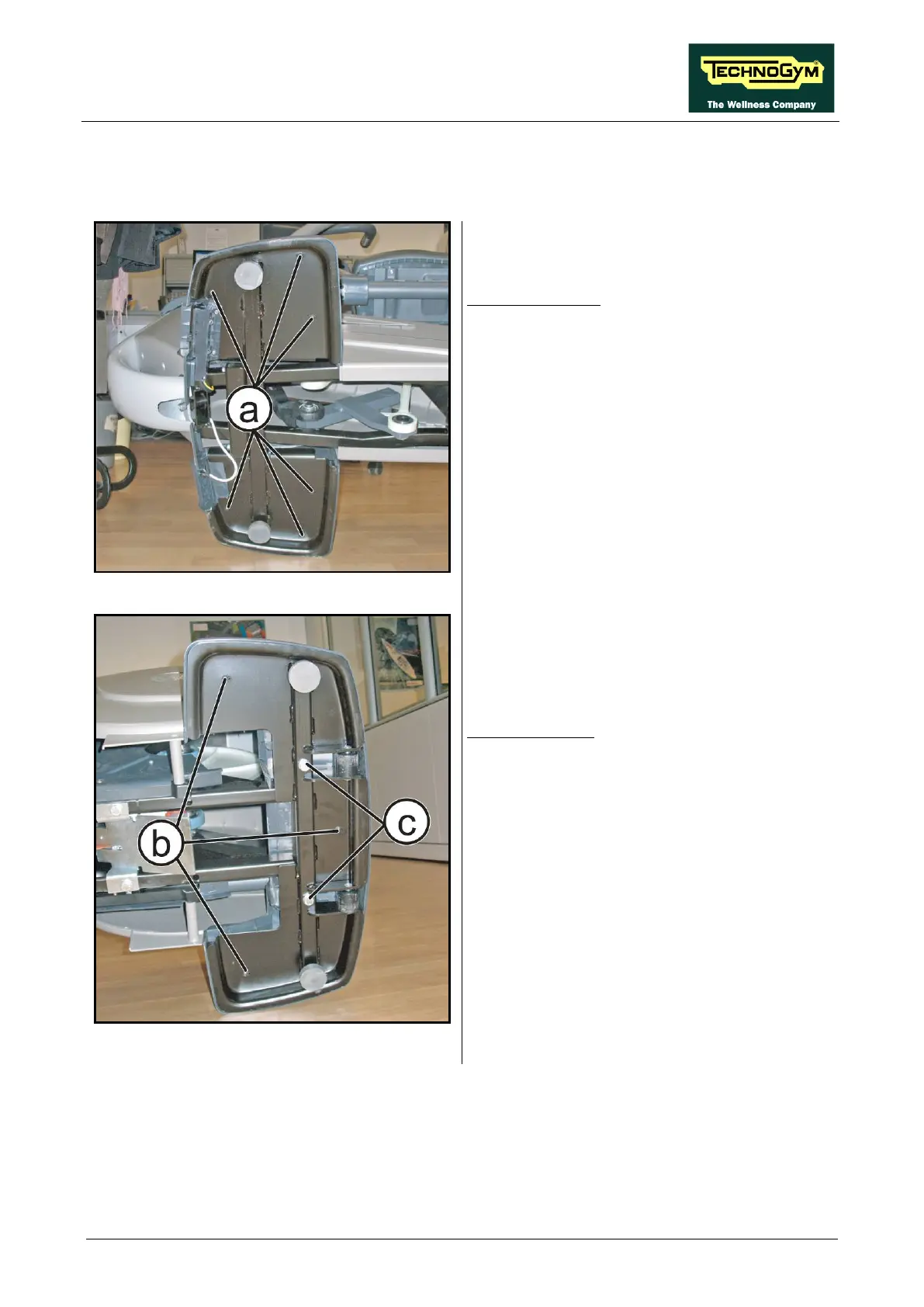

Figure 7.17-1
Front Footboard:
Carry out the operations described in
paragraph: 7.7.3. “Front guards”.
1. Turn the machine on one side.
2. Back off the 6 screws (a) on the front
footboard, with a medium Phillips
screwdriver.
Figure 7.17-2
Rear Footboard:
Carry out the operatio
ns described in
paragraph: 7.7.1. “Rear guard”.
3. Back off the 3 screws (b) on the rear
footboard, with a medium Phillips
screwdriver and the 2 screws (c)
with a
17mm wrench.
Continued in following page
→
