SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Pagina 7.38
7.14. FLYWHEEL AND BETL TENSIONER DISASSEMBLY
7.14.1. POWERED MODELS (500, 700 AND 700WTV)

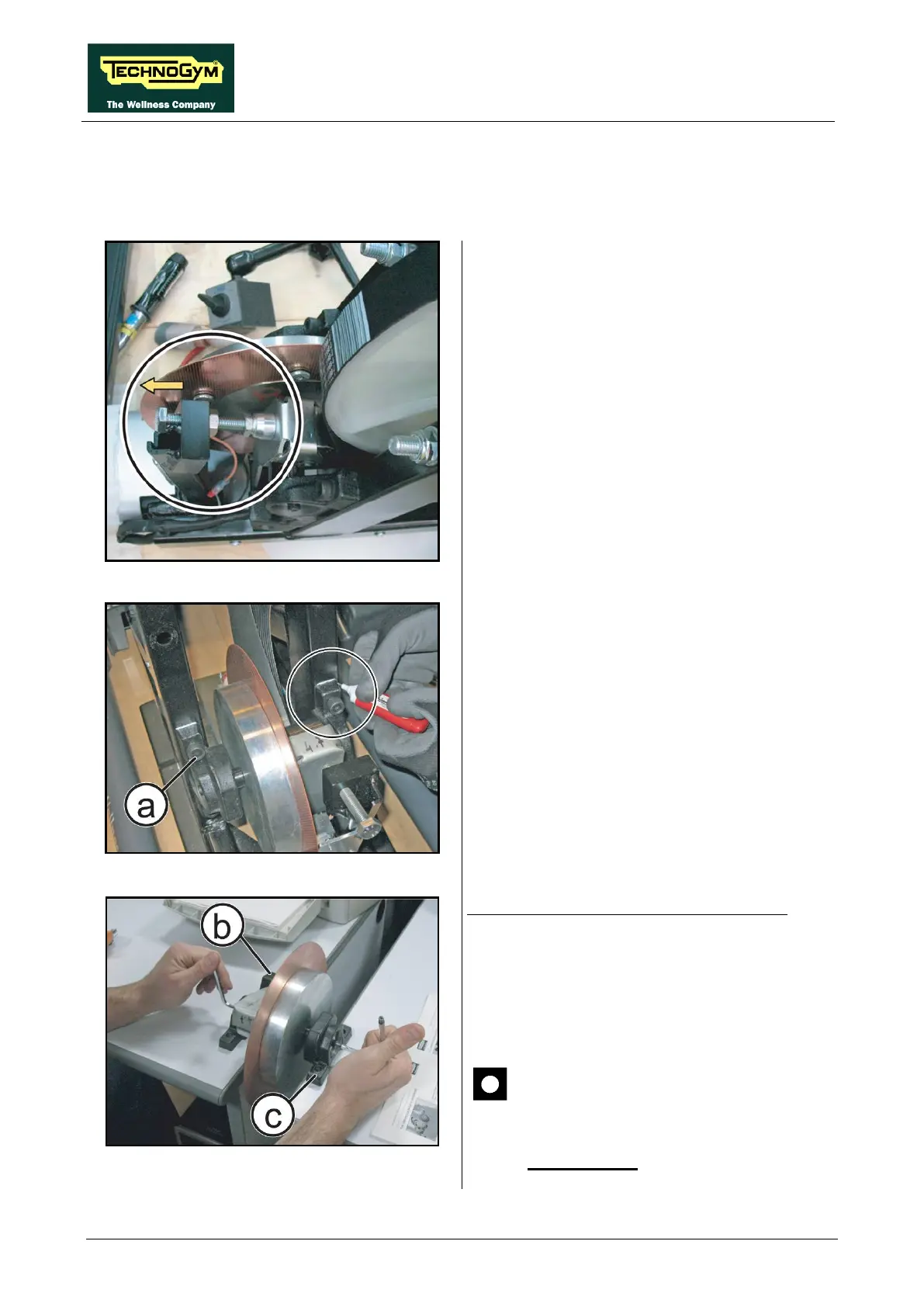

Figura 7.14-1
Carry out the operations described in
paragraph: 7.7.1. “Rear guard”.
1.
Loosen the transmission belt, with a 17mm
wrench, as highlighted in the figure.
Figura 7.14-2
2. Mark the position of pillow blocks, as shown
in the figure.
3. Back off the 4 screws (a)
that support the
flywheel, with a 8mm hexagonal wrench,
locking the nut on the opposite side.
Figura 7.14-3
Bring the flywheel group on a work bench:
4. Remove the 2 pillow blocks (b) and (c) using
two 5mm hexagonal wrenches, one against
the other.
5. Remove the 2 pillow blocks.
ATTENTION: During reassembly lock
down the shaft screws, using
a torque
wrench setting of 10Nm and using the
LOCTITE 243.
Continued in following page →
