SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Page 7.39

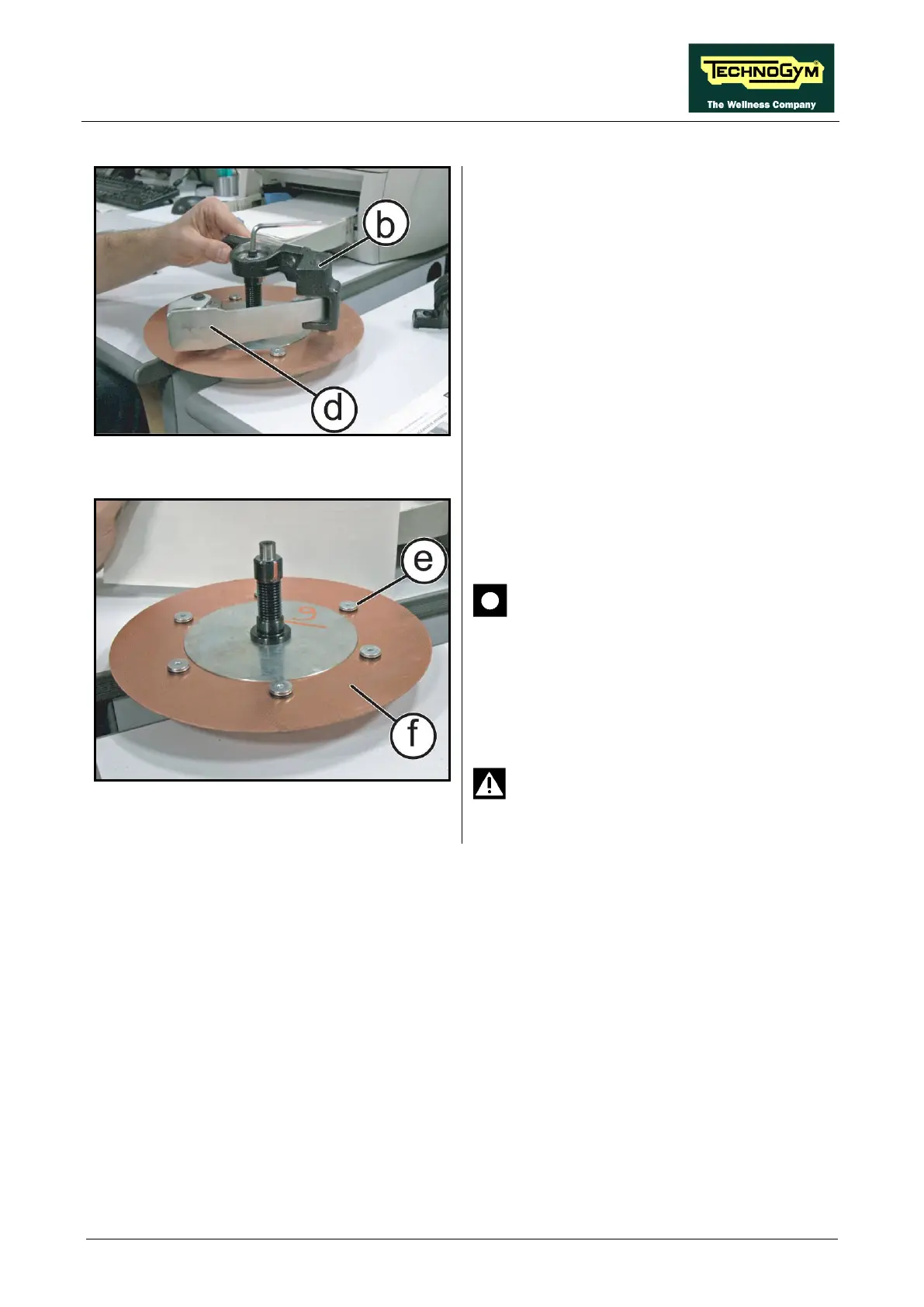

Figura 7.14-4
6. Unthread the pillow blocks
(b).
7. Replace the tensioner belt (d) if necessary.
Figura 7.14-5
8. Back off the 6 screws (e) with a 4mm
hexagonal wrench.
9. Replace the copper disk (f), if necessary.
ATTENTION: During reassembly, lock
down the screws (e) using a torque wrench
setting of 6Nm.
To reassemble the flywheel group, carry out the
above steps in reverse order.
WARNING: Take particular care with
the copper disk, since it can bend easily.
