7.7.2. BRAKE BOX COVER GUARD

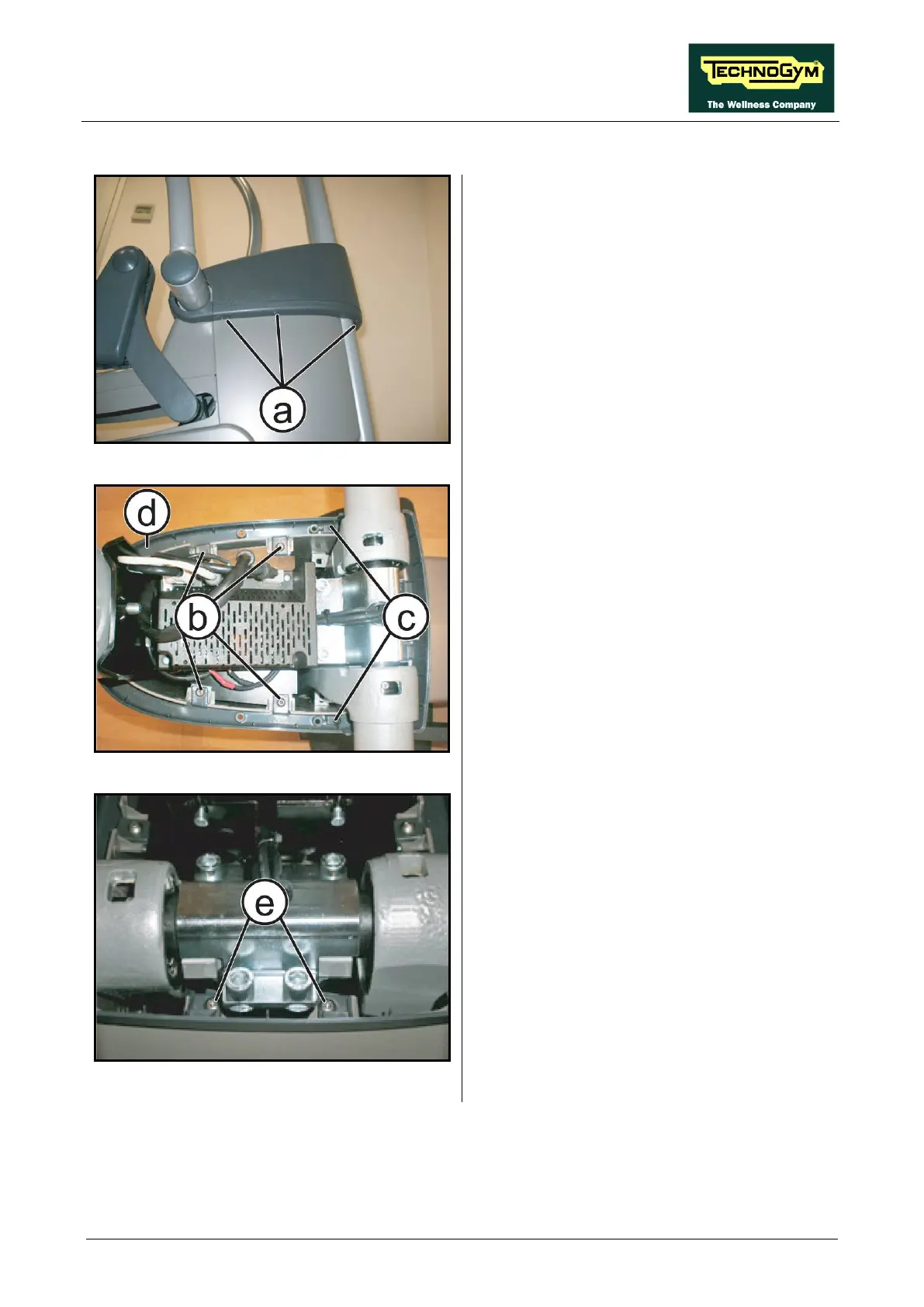

Figure 7.7-3
1. Back off the 3 screws (a),
on both sides of
the machine, using a medium Phillips
screwdriver.
2.
Lift up the top cover along the display
column and secure it with a strap.
Figure 7.7-4
3. Back off the 4 screws (b) with a 4mm
hexagonal wrench.
4. Back off the 2 screws (c)
with a medium
Phillips screwdriver.
5. Remove the front casing (d).
Figure 7.7-5
6. Back off the 2 screw (i), with 4mm
hexagonal wrench.
7. Remove the casing.
