SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Pagina 7.20

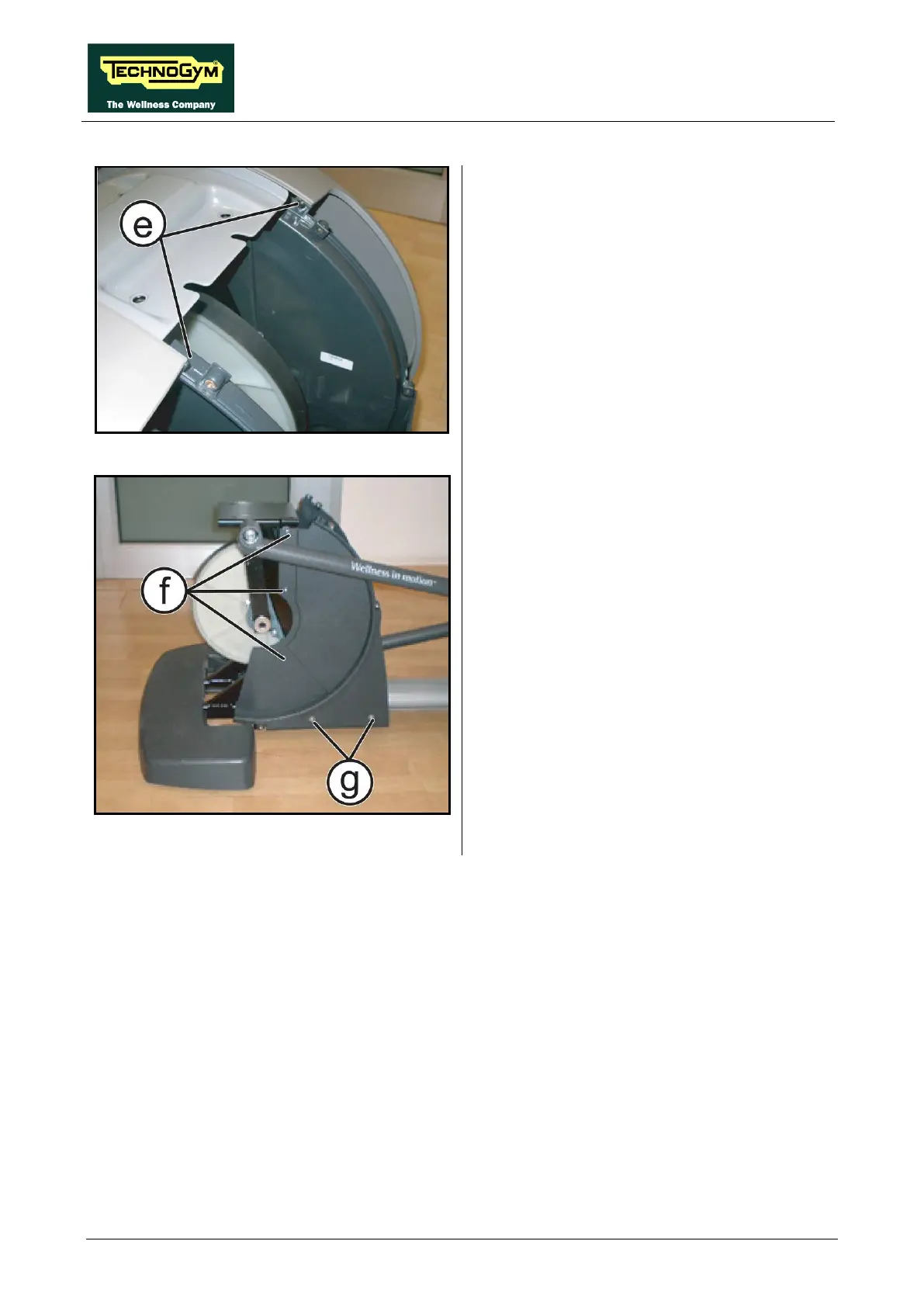

Figure 7.7-1
6. Back off the 2 screws (e),
Phillips screwdriver
Figure 7.7-2
7. Back off the 3 screws (f), on both side of the
machine, using a medium Phillip screwdriver
8. Back off the 2 screws (g), with a 4mm
hexagonal wrench.
9. Remove the guard.
