SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Page 7.17
7.6. HAND SENSOR DISASSEMBLY
Only for versions : 700, 700SP and 700WTV.

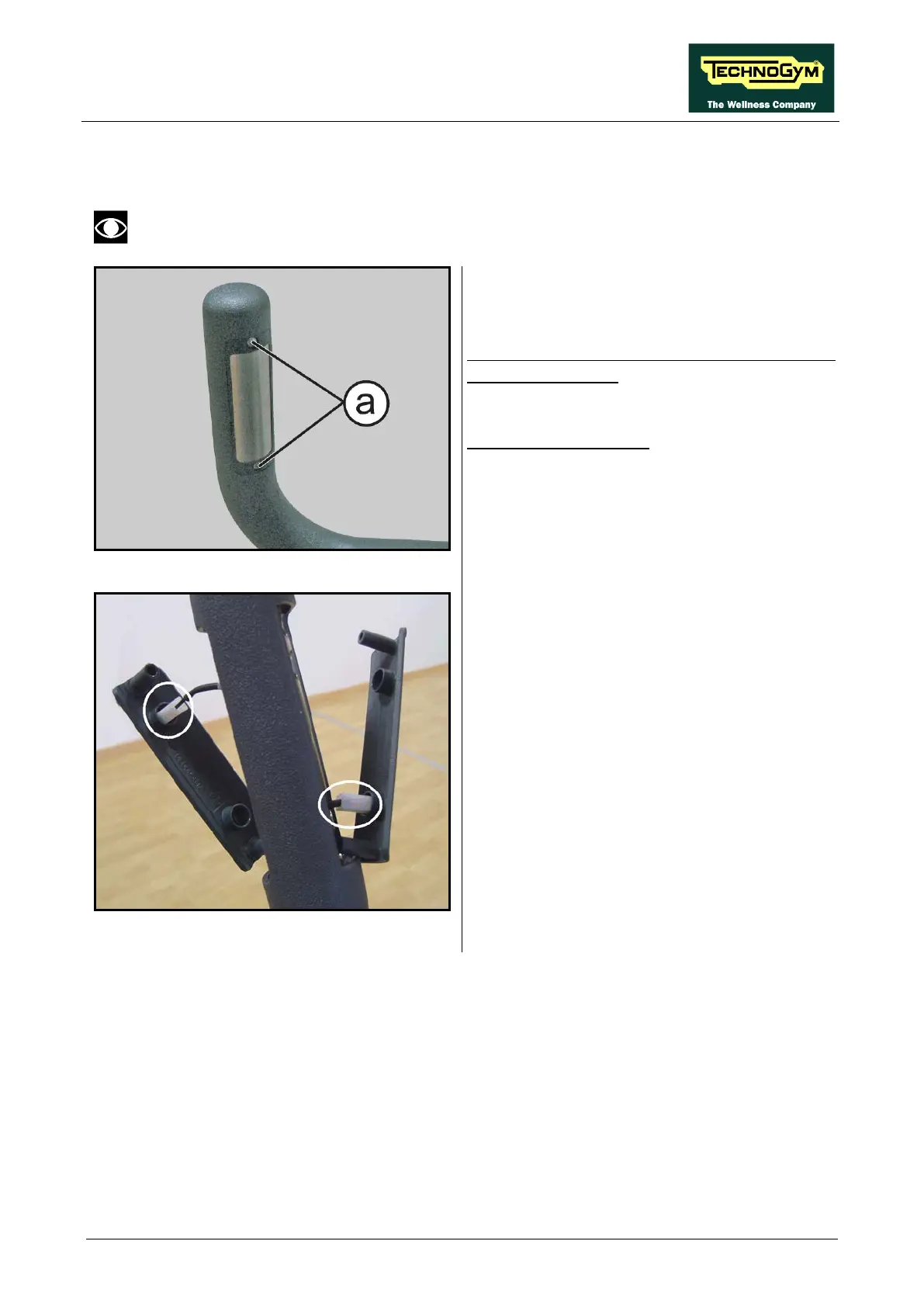

Figure 7.6-1
Turn off the machine and unplug the mains lead
from the wall outlet.
For each handle sensor:
1. Back off the 2 screws (a) using a small
Phillips screwdriver.
Figure 7.6-2
2. Lift up the top sensor.
3. Remove the lower sensor.
4.
To disconnect the sensors, unplug the two
Fast-on indicated in the figure.
Continued in following page
→
