SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Pagina 7.16

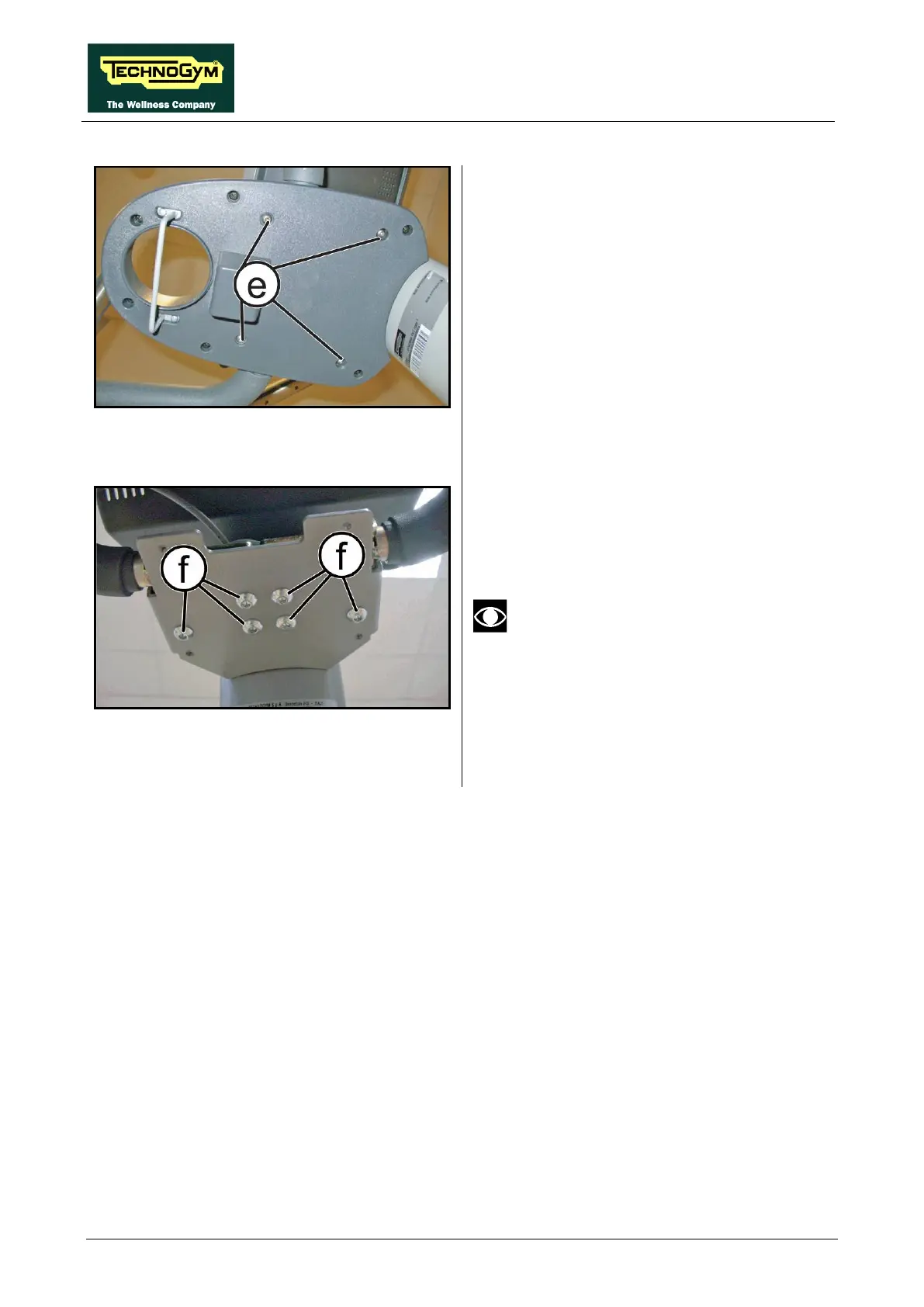

Figure 7.5-4
1. Back off the 4 screws (e)
hexagonal wrench.
2. Remove the lower tray bracket.
Figure 7.5-5
3. Back off the 6 screws (f) with a 6mm
haxagonal wrench (back off the 3 at the right
side or at the left side depending on the
handlebar you want to remove).
4. Remove the handgrips.
In case of a
disassembly the levers,
Hand Sensor cables leaving from upright,
down when to come out.
To reassemble the handgrips, carry out the
above steps in reverse order.
