7.11. PRIMARY SHAFT AND PULLEY DISASSEMBLY

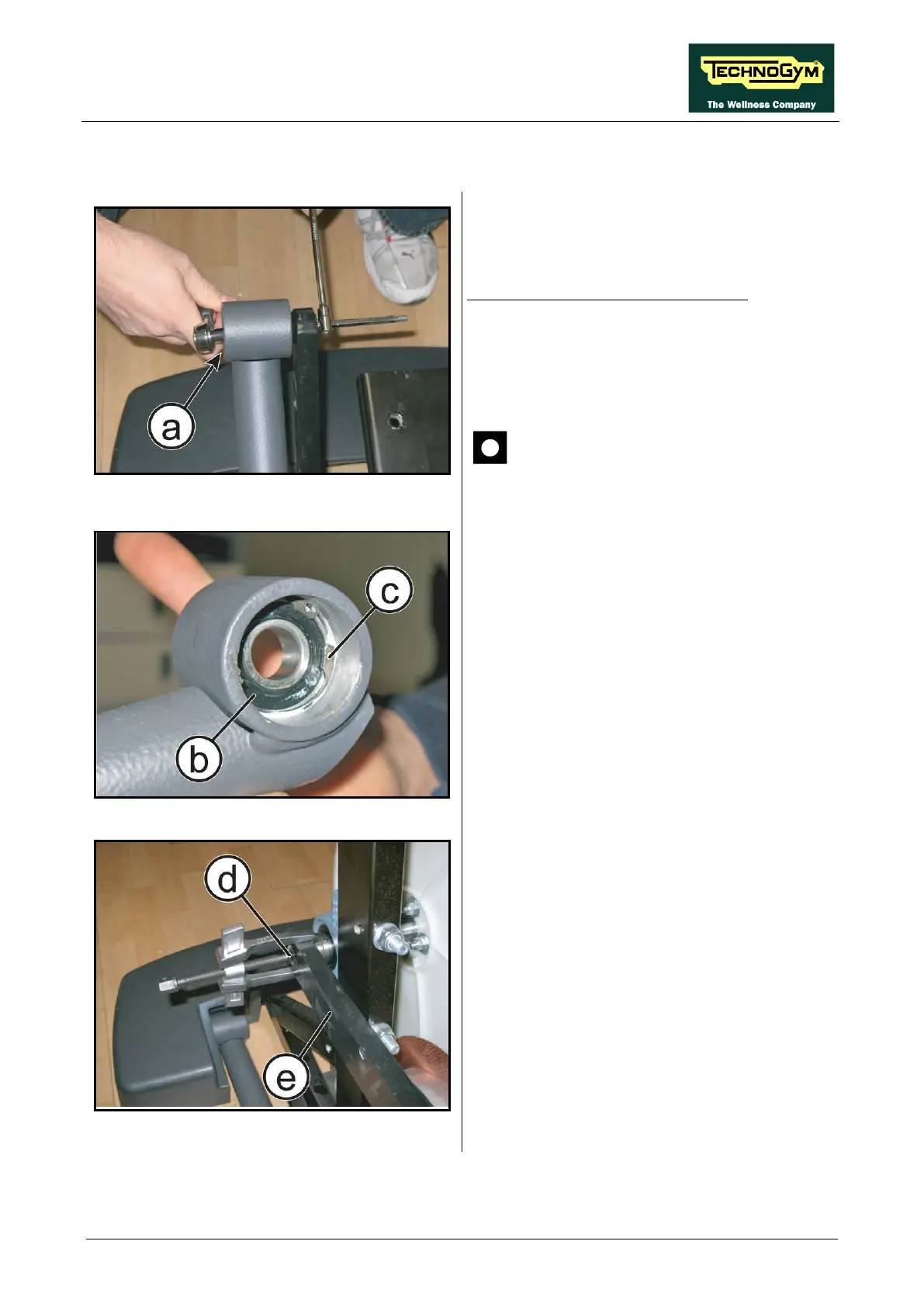

Figure 7.11-1
Carry out the operations described in
paragraph: 7.7.1. “Rear guard”.
For remove the pulley on both levers:
1. Back off the screw (a), with a 10mm
hexagonal wrench, looking it on the opposite
side.
ATTENTION: During reassembly, lock
down the screws (a) using a torque
wrench setting of 9Nm.
Figure 7.11-2
2. If necessary replace the bearing (b) removing
the internal circlip (c).
Figure 7.11-3
3. Back off the screw (d) that look the bars (e)
with a small extractor, as shown in the figure
at the side.
Continued in following page
→
