SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Page 7.35

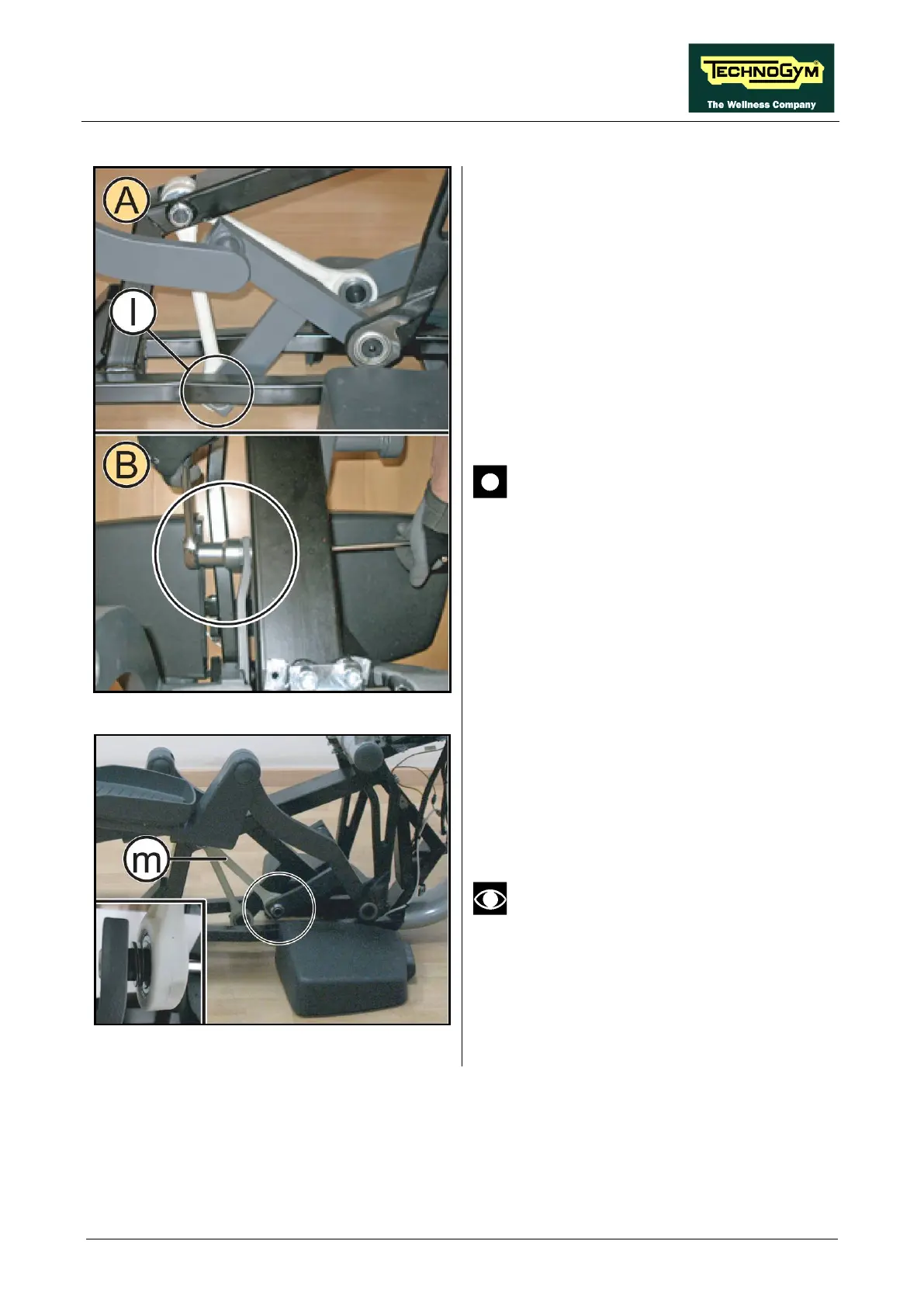

Figure 7.12-10
10. Remove the pin (l) indicate in the figure (A)
with a 6mm
hexagonal wrench and lock the
ring nut on the opposite side with a 27mm
ring nut spanner, as highlight in figure (B).
ATTENTION: During reassembly lock
down the ring nut using a torque wrench
setting of 62Nm.
Figure 7.12-11
11. Release the front lever (m).
During the reassembly place the 3 washer
on the lever side and 1 washer o
internal side, as shown in the detail.
