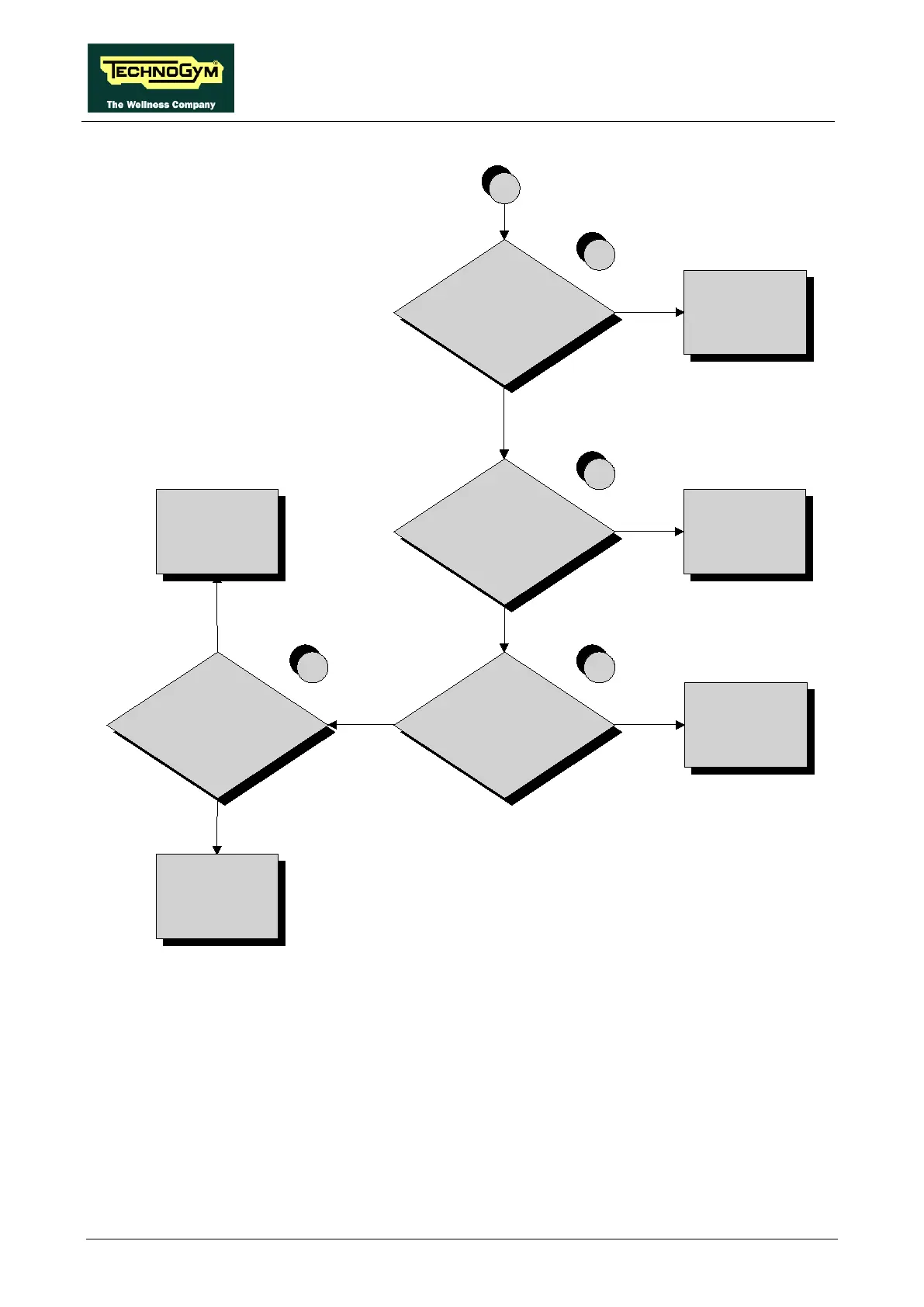

Is the v oltage at the input of the
AUX board correct?
Replace the AUX board
YES
8
Is the v oltage at the output of
the Digital TV board correct?
Replace CU166 cable
YES
9
NO
A
Is the v oltage at the output of
the AUX board correct?
Replace CU167 cable
YES
NO
11
Is the v oltage on the patch
connector correct?
10
Replace Digital TV
board
NO
Replace CU169 cable
NO
YES
