TECO JSDEP Series - Chapter 3: Panel Operator; Digital Operator; Alarm Reset Procedures

3-5

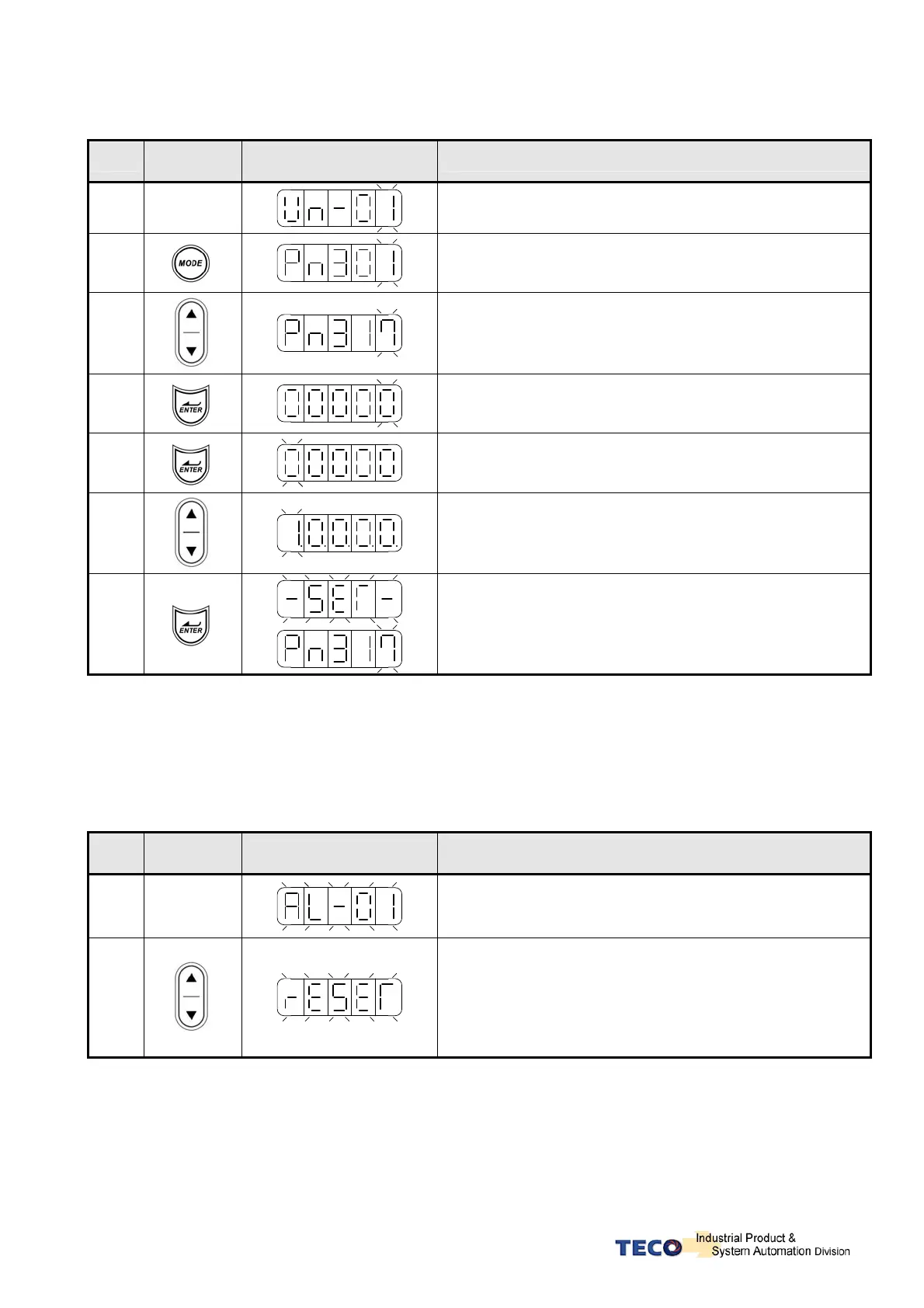

(2) If the negative value has 5 digits follow the steps in the example below:
Ex: Pn317 (internal position preset command 1) set to a negative value -10000 revolutions.
Step
Control
Keys
LED Display after
Operation
Description
1 Power On
On” power on “ Drive Status parameter is displayed.
2
Pressing MODE-Key 8 times, position parameter Pn 301
will be displayed.
3
Use INCREMENT- Key to display Pn317.
4
To view the Pn317 preset press ENTER-Key for 2
seconds.
5
To move to the most significant digit press the
ENTER-Key 4 times.
6
Press DECREMENT-Key once to set the most significant
digit To 1. And press the DECREMENT-Key once again.
A
ll 5 decimal points will light up to indicate a negative
number.
7
To save the altered preset value, Press the ENTER- Key
for 2 seconds until “SET”is displayed briefly and then
display is returned to parameter Pn 317.
z Alarm Reset from the Keypad.
 All alarm displays can be cleared from the keypad without a need for an external Alarm clear
(Reset) signal.
Ex. Under voltage Alarm AL-01.
Step
Control
Key
LED Display after
Opertion
Description
1 Alarm
Under voltage Alarm AL-01 is displayed.
2
To clear Alarm:-
Remove input contact SON (Servo On).
Then press INCREMENT-Key and DECREMENT-Key
at the same time.
The display will show RESET briefly and then returns
back to parameter display.
 The LED display contains status code and the digit of LED, the LED shows different
meaning in Torque/Speed control mode and Position control mode, the statement is below.
