C
LEAR
P
ATH
U
SER
M
ANUAL
R
EV
.
1.97
59
M
ODE
C
ONTROLS

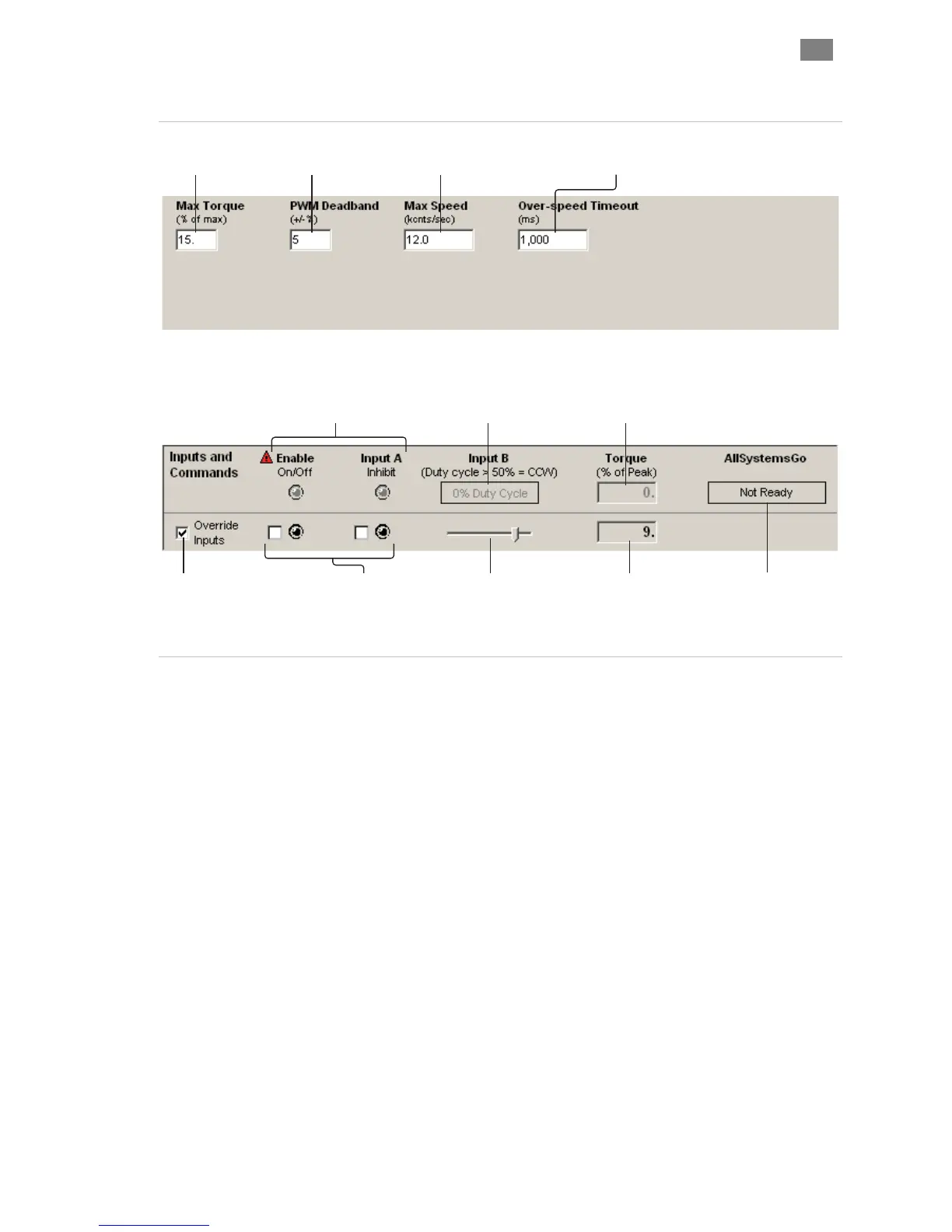

Enter deadband setting
(optional). See text for
description of deadband.
Enter maximum speed.
ClearPath will shut down if
this speed limit is exceeded.
Enter maximum
motor torque (i.e.
full scale torque).
Soft Inputs and LEDs
Emulate hardware inputs. For
use only when Soft Controls
are active. Caution: motor
may spin when enabled.
Displays commanded
torque (when using
Soft Controls).
Displays commanded
torque (when using
hard controls).
Hardware Input Status LEDs
Light = Input asserted (on)
Dark = Input de-asserted (off )
PWM Meter - Displays
duty cycle of PWM source
connected to Input B.
PWM Soft Slider
Emulates PWM
input (for use with
Soft Controls).
Displays output status
HLFB modes supported:
>Servo On
>AllSystemsGo
>Speed Output
Check to turn on Soft
Controls. Override cannot
be activated when ClearPath
is hardware enabled.
Enter value in mS. Determines
how long ClearPath can spin at
max speed before shutting down.
T
EKNIC
,
I
NC
.
F
AX
(585)784-7460
V
OICE
(585)784-7454
