H OMING S ETUP (H ARD S TOP H OMING )
In this mode, ClearPath can be configured to home to a hard stop to
establish a home reference position before functional positioning begins.
1. Install a hard stop that guarantees the moving element of the
axis makes solid, repeatable contact with the stationary
element when driven into it.
2. Enable homing in MSP.
3. Click the Setup button to open the homing dialog.
4. Enter homing parameters. See figure next page for description
of homing parameters.

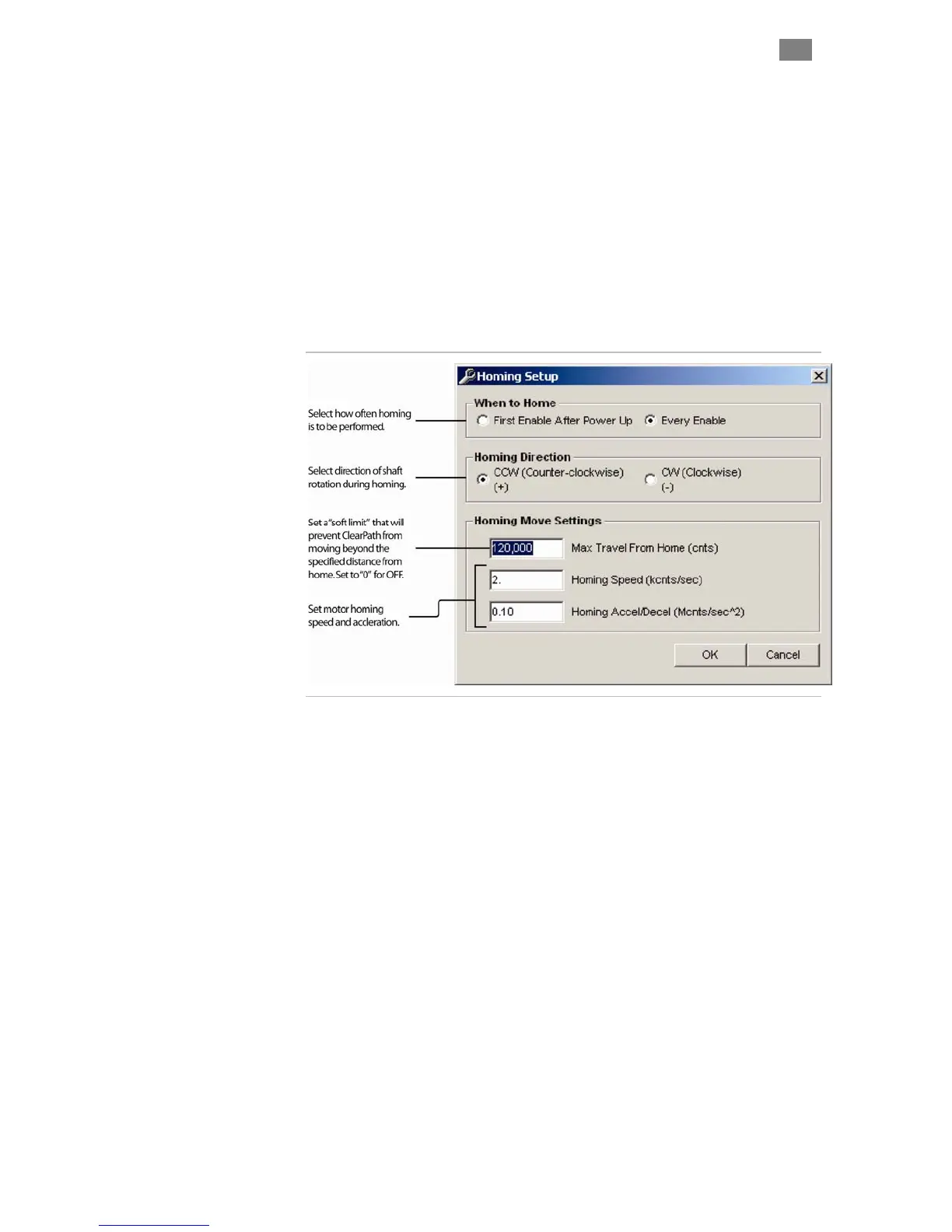

Homing Setup dialog
5. Test and modify your homing setup for consistent, repeatable
performance.
