Operating Basics
Firmware upgrade
procedure
Use the followi
ng steps to upgrade the instrument firmware using a network
connection:
1. Connect the in
strument and a Windows PC to your local Ethernet network
or directly connect the instrument to a Windows PC. (See page 7, Network
installation.)
2. Power on the instrument.
3. Prepare the instrument for the fi rmware upgrade:
a. Press and hold the PANEL ENABLE button to enable the front-panel
control buttons. The instrument beeps when the panel buttons are enabled.
b. Press the front-panel MA NUAL MODE button to put the instrument
in Manual mode.
c. Press the front-panel BACK button as necessary to acce ss the top-level
Main menu.
d. Press the up (▲)ordown(▼) arrow button to select SYSTEM CONFIG,
and then press the ENTER button to access the SYSTEM CONFIG menu.
e. Press the up (▲)ordown(▼) arrow button to select FIRMWARE
UPGRADE.

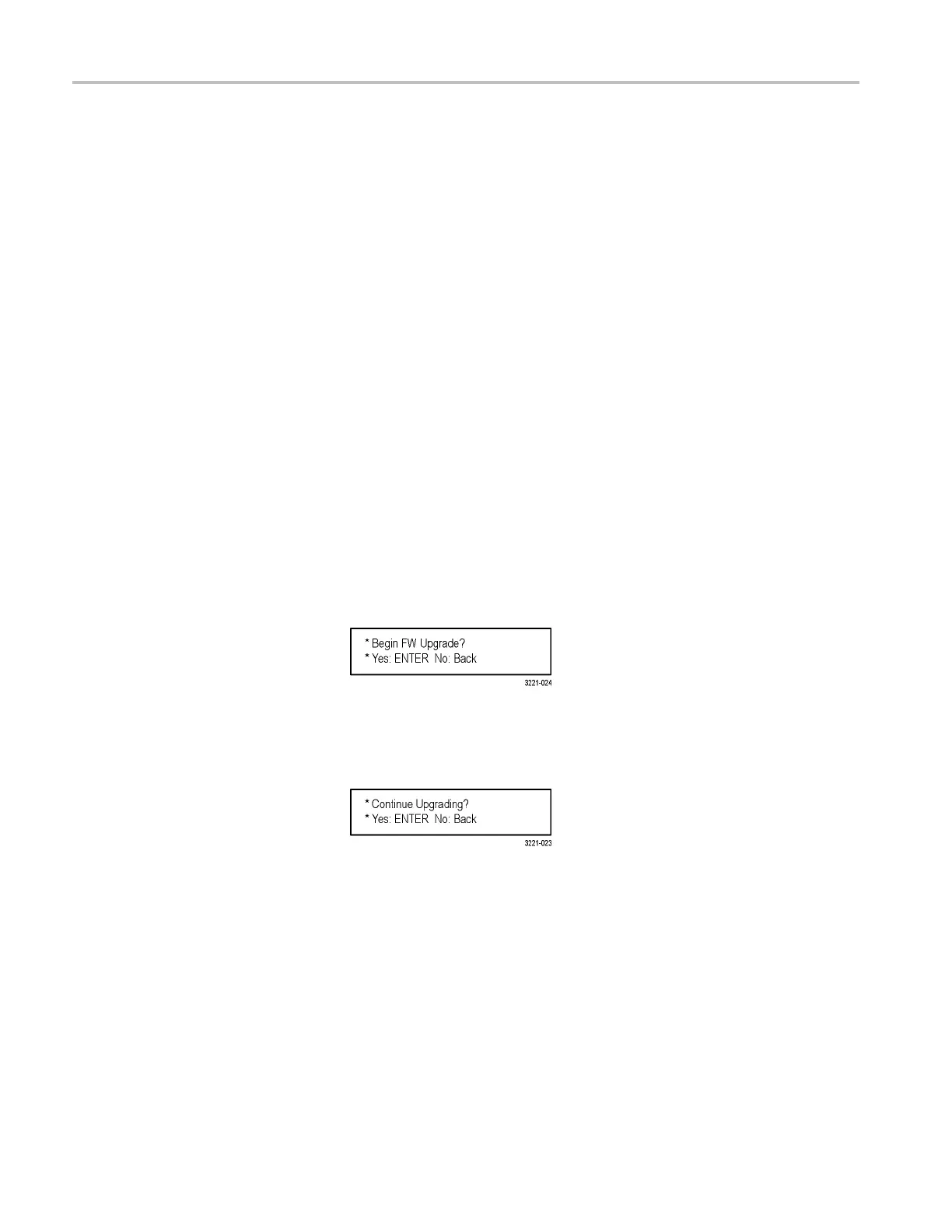

f. Press the ENTER button. A confirmation message is displayed as shown
below.
g. Press ENTER to proceed with the upgrade or press the BACK button to
cancel the upgrade.
h. A second confirmation is displayed as shown below.
i. Press the ENTER button to proceed with the upgrade or press the BACK
button to cancel the upgrade.
j. When you press ENTER, a Waiting for network message is displayed
along with the IP address of the instrument. This indicates the instrument
is ready to be upgraded.
44 ECO8000 Series Automatic Changeover Unit User Manual
