Tektronix TAS 475 Service Manual

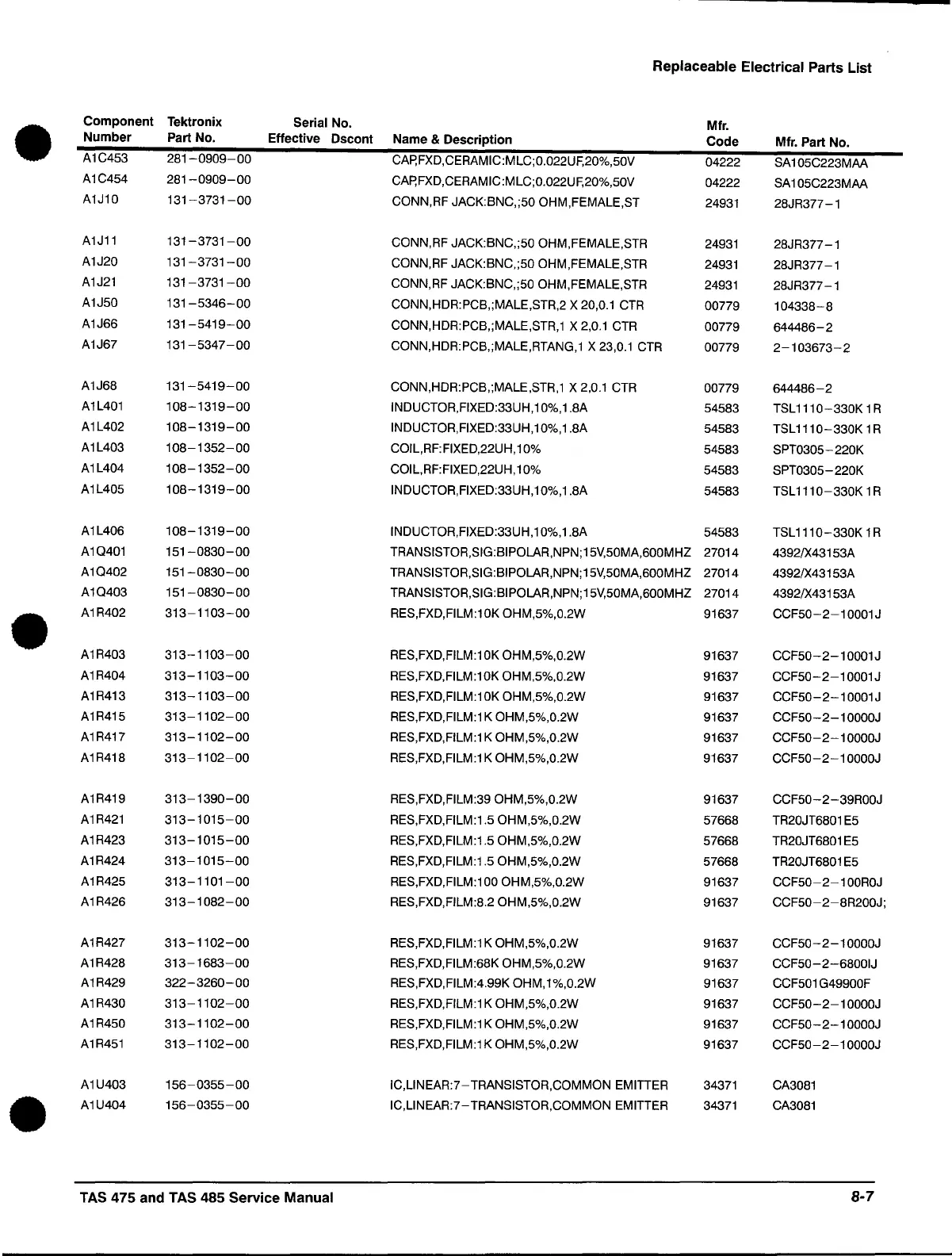

Replaceable Electrical Parts List
•
Component
Tektronix
Serial No.
Mfr .
Number
Part No.
Effective
Dscont
Name & Description
Code
Mfr. Part No.
A1C453
281 0909
00
CAP,FXD,CERAMIC:MLC;0.022UF,20%,50V
04222
SA 1 05C223MAA
A1C454
281-0909-00
CAp,FXD,CERAMIC:MLC;0.022UF,20%,50V
04222
SA 1 05C223MAA
A1J10
131-3731-00
CONN,RF JACK:BNC,;50 OHM,FEMALE,ST
24931
28JR377-1
A1J11
131-3731-00
CONN,RF JACK:BNC,;50 OHM,FEMALE,STR
24931
28JR377-1
A1J20
131-3731-00
CONN,RF JACK:BNC,;50 OHM,FEMALE,STA
24931
28JR377-1
A1J21
131-3731-00
CONN,RF JACK:BNC,;50 OHM,FEMALE,STR
24931
28JR377-1
A1J50
131-5346-00
CONN,HDR:PCB,;MALE,STR,2 X 20,0.1 CTR
00779 104338-8
A1J66
131-5419-00
CONN,HDR:PCB,;MALE,STR,1 X 2,0.1 CTR
00779
644486-2
A1J67
131-5347-00
CONN,HDR:PCB,;MALE,RTANG,1 X 23,0.1 CTR
00779 2-103673-2
A1J68
131-5419-00
CONN,HDR:PCB,;MALE,STR,1 X 2,0.1 CTA
00779 644486-2
A1L401
108-1319-00
INDUCTOR,FIXED:33UH,1 0%, 1.8A
54583
TSL
1110 -330K 1 R
A1L402
108-1319-00
INDUCTOR,FIXED:33UH,1 0%, 1.8A
54583 TSL1110-330K
1R
A1L403
108-1352-00
COIL,RF:FIXED,22UH,10%
54583
SPT0305-220K
A1L404
108-1352-00
COIL,RF:FIXED,22UH,10%
54583
SPT0305-220K
A1L405
108-1319-00
INDUCTOR,FIXED:33UH,10%,1.8A
54583
TSL1110-330K 1 R
A1L406
108-1319-00
INDUCTOR,FIXED:33UH,1 0%, 1.8A
54583
TSL1110-330K1R
A1Q401 151-0830-00
TRANSISTOR,SIG:BIPOLAR,NPN;15V,50MA,600MHZ
27014
4392/X43153A
A1Q402
151-0830-00
TRANSISTOR,SIG:BIPOLAR,NPN;15V,50MA,600MHZ
27014
4392/X43153A
A1Q403
151-0830-00
TRANSISTOR,SIG:BIPOLAR,NPN;15V,50MA,600MHZ
27014
4392/X43153A
•
A1R402 313-1103-00
RES,FXD,FILM:10K OHM,5%,O.2W
91637 CCF50-2-10001J
A1R403
313-1103-00
RES,FXD,FILM:1 OK OHM,5%,0.2W
CCF50-2-10001J 91637
A1R404
313-1103-00
RES,FXD,FILM:10K OHM,5%,0.2W
91637
CCF50-2-1 0001 J
A1R413
313-1103-00
RES,FXD,FILM:1 OK OHM,5%,0.2W
91637
CCF50-2-10001J
A1R415
313-1102-00
RES,FXD,FILM:1 K OHM,5%,0.2W
91637
CCF50-2-10000J
A1R417 313-1102-00
RES,FXD,FILM:1 K OHM,5%,0.2W 91637 CCF50-2-10000J
A1R418 313-1102-00
RES,FXD,FILM:1 K OHM,5%,0.2W 91637
CCF50-2-10000J
A1R419 313-1390-00
RES,FXD,FILM:390HM,5%,0.2W 91637
CCF50-2-39ROOJ
A1R421
313-1015-00
RES,FXD,FILM:1.50HM,5%,0.2W
57668 TR20JT6801
E5
A1R423 313-1015-00
RES,FXD,FILM:1.50HM,5%,0.2W 57668
TR20JT6801E5
A1R424
313-1015-00
RES,FXD,FILM:1.50HM,5%,0.2W
57668 TR20JT6801
E5
A1R425
313-1101-00
RES,FXD,FILM:100 OHM,5%,0.2W 91637
CCF50-2-100ROJ
A1R426
313-1082-00
RES,FXD,FILM:8.20HM,5%,0.2W
91637
CCF50-2-8R200J;
A1R427 313-1102-00
RES,FXD,FILM:1 K OHM,5%,0.2W 91637 CCF50-2-10000J
A1R428 313-1683-00
RES,FXD,FILM:68K OHM,5%,0.2W
91637
CCF50-2-6800IJ
A1R429 322-3260-00
RES,FXD,FILM:4.99K OHM, 1 %,0.2W 91637
CCF501 G49900F
A1R430 313-1102-00
RES,FXD,FILM:1 K OHM,5%,0.2W
91637
CCF50-2-10000J
A1R450
313-1102-00
RES,FXD,FILM:1 K OHM,5%,0.2W
91637
CCF50 - 2 -1 OOOOJ
A1R451 313-1102-00
RES,FXD,FILM:1 K OHM,5%,0.2W
91637
CCF50-2-10000J
A1U403 156-0355-00
IC,LlNEAR:7-TRANSISTOR,COMMON EMITIER 34371 CA3081
•
A1U404
156-0355-00
IC,LlNEAR:7-TRANSISTOR,COMMON EMITIER 34371 CA3081
TAS 475 and TAS 485 Service Manual
8-7
