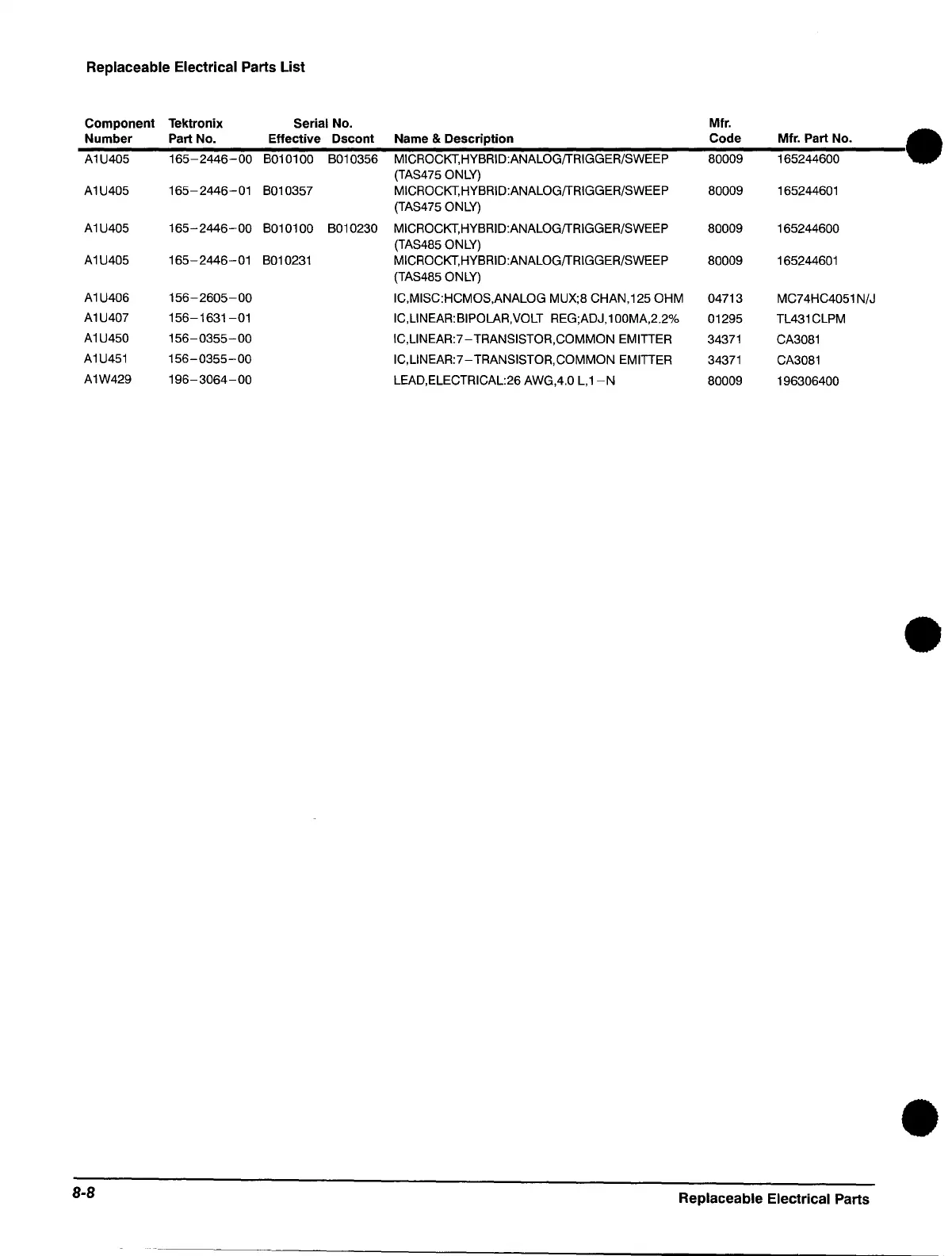

Tektronix TAS 475 Service Manual

Replaceable Electrical Parts List
Component Tektronix Serial No.
Mfr.
Number
Part No.
Effective Dscont
Name
& Description
Code
Mfr. Part No.
•
A1U405
165-2446-00
B010100 B010356 MICROCKT,HYBRID:ANALOG/TRIGGER/SWEEP 80009
165244600
(TAS475 ONLY)
A1U405
165-2446-01
B010357 MICROCKT,HYBRID:ANALOG/TRIGGER/SWEEP 80009 165244601
(TAS475
ONLY)
A1U405
165-2446-00
B010100 B010230 MICROCKT,HYBRID:ANALOG/TRIGGER/SWEEP 80009 165244600
(TAS485 ONLY)
A1U405
165-2446-01
B010231
MICROCKT,HYBRID:ANALOG/TRIGGER/SWEEP 80009
165244601
(TAS485 ONLY)
A1U406
156-2605-00
IC,MISC:HCMOS,ANALOG MUX;8 CHAN,125 OHM
04713
MC74HC4051 N/J
A1U407 156-1631-01
IC,LlNEAR:BIPOLAR,VOLT REG;ADJ,1 00MA,2.2%
01295 TL431CLPM
A1U450
156-0355-00
IC,LlNEAR:7 - TRANSISTOR, COMMON EMITTER 34371
CA3081
A1U451 156-0355-00
IC,LlNEAR:7-TRANSISTOR, COMMON EMITTER
34371
CA3081
A1W429 196-3064-00
LEAD,ELECTRICAL:26 AWG,4.0 L,1-N
80009
196306400
•
•
8-8
Replaceable Electrical Parts
Scan by Zenith
