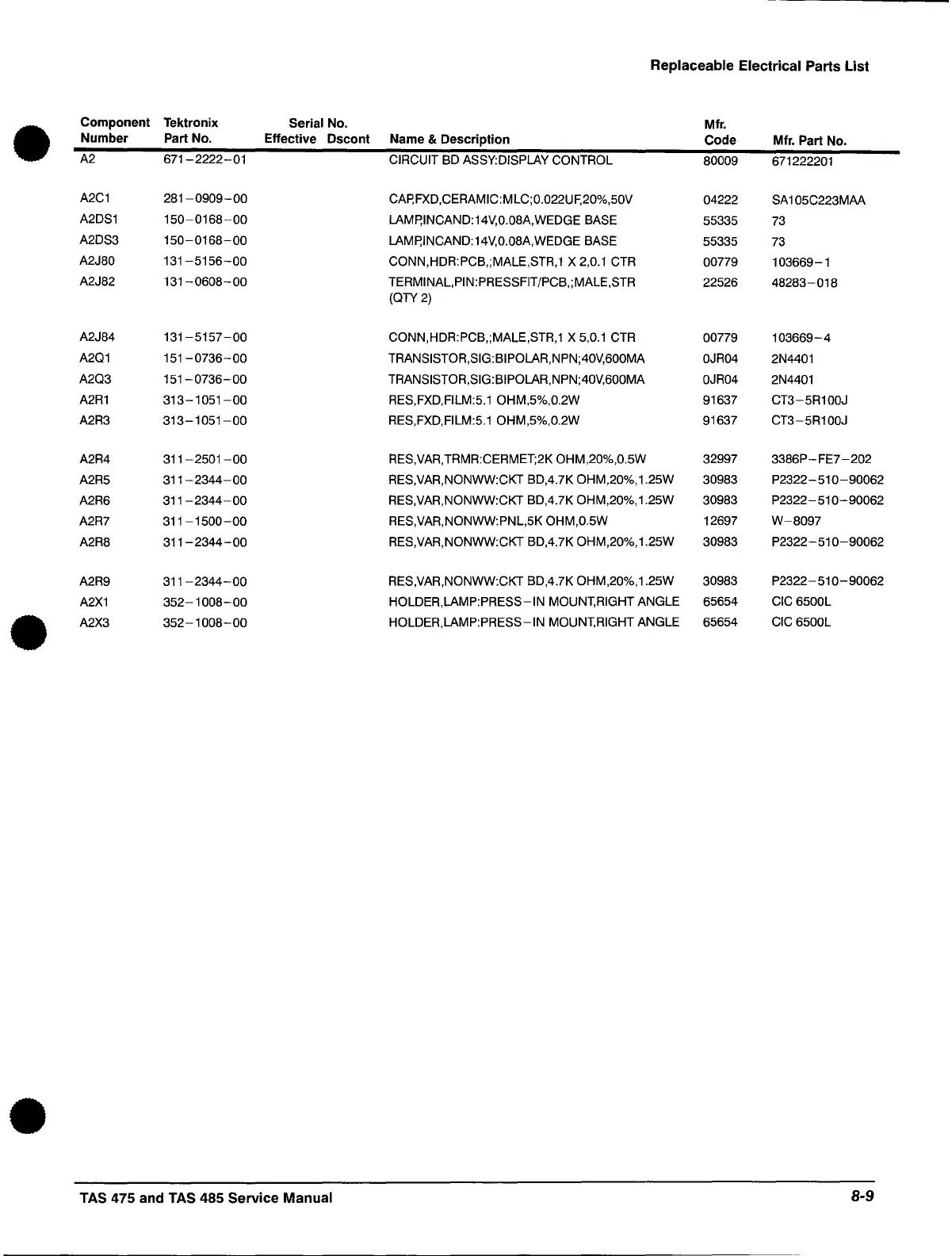

Tektronix TAS 475 Service Manual

Replaceable Electrical Parts List
•
Component
Tektronix
Serial No.
Mfr .
Number
Part No. Effective
Dscont
Name
& Description
Code
Mfr. Part No.
A2
671-2222-01
CIRCUIT BD ASSY:DISPLAY CONTROL
80009
671222201
A2C1
281-0909-00
CAp,FXD,CERAMIC:MLC;0.022UF,20%,50V
04222
SA 1 05C223MAA
A2DS1
150-0168-00
LAMp,INCAND:14V,O.08A,WEDGE BASE
55335
73
A2DS3 150-0168-00
LAMp,INCAND:14V,O.08A,wEDGE BASE
55335
73
A2J80
131-5156-00
CONN,HDR:PCB,;MALE,STR,1 X 2,0.1 CTR
00779 103669-1
A2J82
131-0608-00
TERMINAL,PIN:PRESSFIT/PCB,;MALE,STR
22526
48283-018
(OTY2)
A2J84 131-5157-00
CONN,HDR:PCB,;MALE,STR,1 X 5,0.1 CTR 00779 103669-4
A201 151-0736-00
TRANSISTOR,SIG:BIPOLAR,NPN;40V,600MA OJR04
2N4401
A203 151-0736-00
TRANSISTOR,SIG:BIPOLAR,NPN;40V,600MA OJR04 2N4401
A2R1 313-1051-00 RES,FXD,FILM:5.1 OHM,5%,O.2W 91637 CT3-5R100J
A2R3 313-1051-00 RES,FXD,FILM:5.1 OHM,5%,O.2W 91637 CT3-5R100J
A2R4
311-2501-00 RES,VAR,TRMR:CERMET;2K OHM,20%,O.5W 32997 3386P-FE7-202
A2R5 311-2344-00
RES,VAR,NONWW:CKT BD,4.7K OHM,20%,1.25W 30983 P2322-51 0-90062
A2R6 311 -2344-00
RES,VAR,NONWW:CKT BD,4.7K OHM,20%,1.25W 30983 P2322 - 510 - 90062
A2R7 311-1500-00 RES,VAR,NONWW:PNL,5K OHM,O.5W
12697 W-8097
A2R8 311-2344-00
RES,VAR,NONWW:CKT BD,4.7K OHM,20%,1.25W 30983 P2322-51 0-90062
A2R9 311 -2344-00
RES,VAR,NONWW:CKT BD,4.7K OHM,20%,1.25W 30983 P2322-51 0-90062
A2X1
352-1008-00
HOLDER,LAMP:PRESS-IN MOUNT,RIGHT ANGLE 65654 CIC6500L
•
A2X3
352-1008-00
HOLDER,LAMP:PRESS-IN MOUNT,RIGHT ANGLE 65654 CIC 6500L
•
TAS 475 and TAS 485 Service Manual
8-9
