Tektronix TAS 475 Service Manual

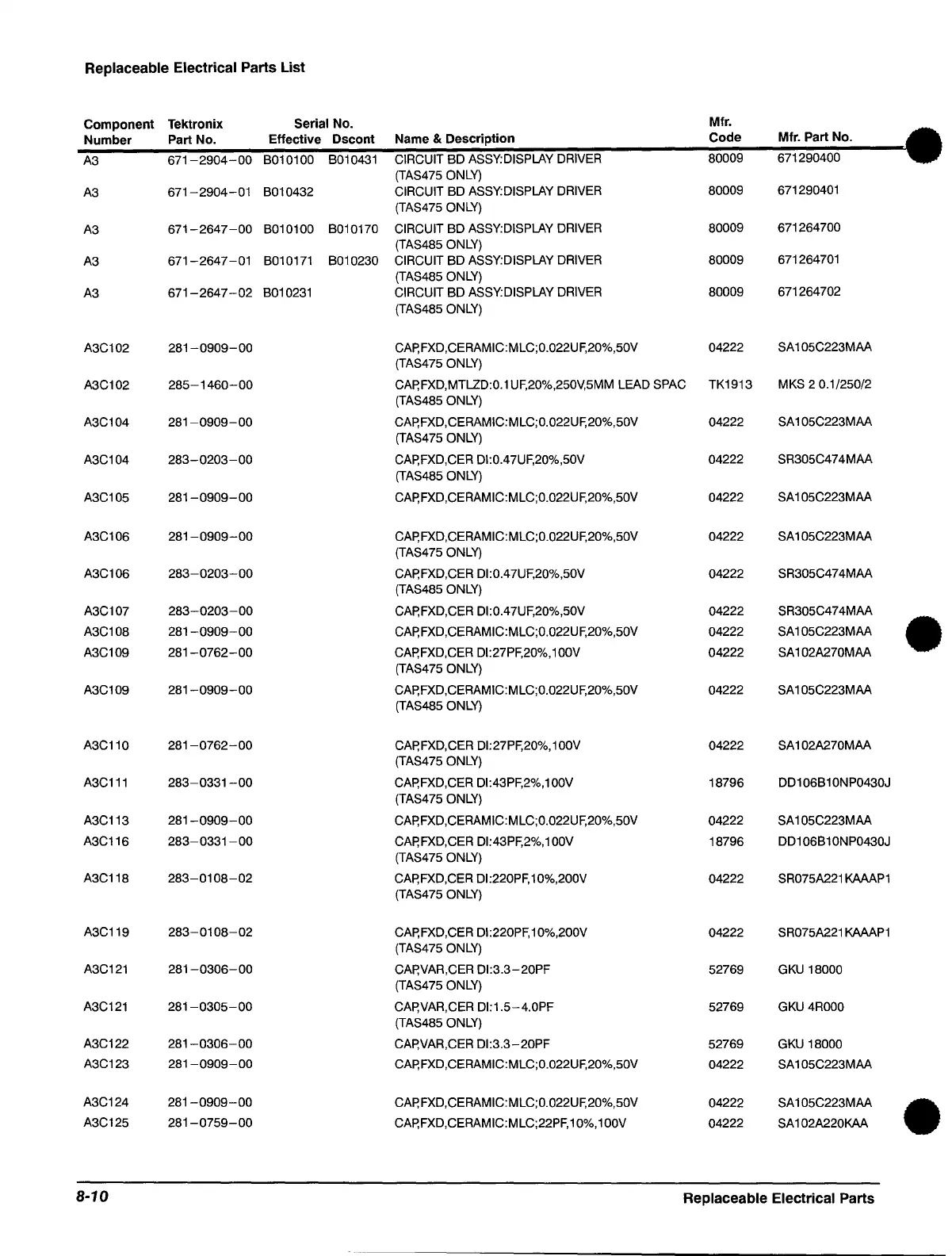

Replaceable Electrical Parts List
Component
Tektronix
Serial No.
Mfr.
Number
Part No.
Effective Dscont
Name
& Description
Code
Mfr. Part No.
A3
671-2904-00 0100
B010431
CIRCUIT BD ASSY:DISPLAY D
80009
671290400
(TAS475 ONLY)
A3
671-2904-01 B010432
CIRCUIT BD ASSY:DISPLAY DRIVER
80009
671290401
(TAS475 ONLY)
A3
671-2647-00 B010100 B010170
CIRCUIT BD ASSY:DISPLAY DRIVER
80009
671264700
(TAS485 ONLY)
A3
671-2647-01 B010171
B010230
CIRCUIT BD ASSY:DISPLAY DRIVER
80009
671264701
(TAS485
ONLY)
A3
671-2647-02 B010231
CIRCUIT BD ASSY:DISPLAY DRIVER
80009
671264702
(TAS485
ONLY)
A3C102
281-0909-00 CAp,FXD,CERAMIC:MLC;0.022UF,20%,50V
04222
SA 1 05C223MAA
(TAS475 ONLY)
A3C102
285-1460-00 CAp,FXD,MTLZD:0.1UF,20%,250V,5MM LEAD SPAC
TK1913 MKS
20.1/250/2
(TAS485 ONLY)
A3C104
281-0909-00 CAp,FXD,CERAMIC:MLC;0.022UF,20%,50V 04222
SA 1 05C223MAA
(TAS475 ONLY)
A3C104
283-0203-00 CAp,FXD,CER DI:0.47UF,20%,50V
04222 SR305C474MAA
(TAS485
ONLY)
A3C105
281-0909-00 CAp,FXD,CERAMIC:MLC;0.022UF,20%,50V 04222
SA 1 05C223MAA
A3C106
281-0909-00
CAp,FXD,CERAMIC:MLC;0.022UF,20%,50V
04222
SA 1 05C223MAA
(TAS475 ONLY)
A3C106
283-0203-00
CAp,FXD,CER DI:0.47UF,20%,50V 04222
SR305C474MAA
(TAS485
ONLY)
A3C107
283-0203-00
CAp,FXD,CER DI:0.47UF,20%,50V 04222 SR305C474MAA
A3C108 281-0909-00 CAp,FXD,CERAMIC:MLC;0.022UF,20%,50V 04222
SA 1 05C223MAA
•
A3C109 281-0762-00 CAp,FXD,CER DI:27PF,20%,100V 04222 SA 1 02A270MAA
(TAS475 ONLY)
A3C109
281-0909-00 CAp,FXD,CERAMIC:MLC;0.022UF,20%,50V 04222 SA 1 05C223MAA
(TAS485 ONLy)
A3C110
281-0762-00
CAp,FXD,CER DI:27PF,20%,1 OOV 04222 SA 1 02A270MAA
(TAS475 ONLY)
A3C111
283-0331-00
CAp,FXD,CER D1:43PF,2%,100V 18796 DD106B10NP0430J
(TAS475 ONLY)
A3C113 281-0909-00 CAp,FXD,CERAMIC:MLC;0.022UF,20%,50V 04222 SA 1 05C223MAA
A3C116
283-0331-00
CAp,FXD,CER DI:43PF,2%,100V 18796 DD1 06B1 ONP0430J
(TAS475 ONLY)
A3C118 283-0108-02
CAp,FXD,CER DI:220PF,1 0%,200V
04222
SR075A221KAAAP1
(TAS475
ONLY)
A3C119
283-0108-02
CAp,FXD,CER DI:220PF,1 0%,200V
04222 SR075A221
KAAAP1
(TAS475 ONLY)
A3C121 281-0306-00
CAp,VAR,CER DI:3.3-20PF 52769 GKU 18000
(TAS475 ONLY)
A3C121 281-0305-00 CAp,VAR,CER DI:1.5-4.0PF 52769 GKU 4ROOO
(TAS485 ONLY)
A3C122 281-0306-00 CAp,VAR,CER DI:3.3-20PF
52769 GKU 18000
A3C123
281-0909-00
CAp,FXD,CERAMIC:MLC;0.022UF,20%,50V
04222
SA 1 05C223MAA
A3C124 281 -0909-00
CAp,FXD,CERAMIC:MLC;0.022UF,20%,50V
04222
SA 1 05C223MAA
•
A3C125 281-0759-00
CAp,FXD,CERAMIC:MLC;22PF,1 0%,1 OOV
04222 SA102A220KAA
8-10
Replaceable Electrical Parts
