Tektronix TAS 475 Service Manual

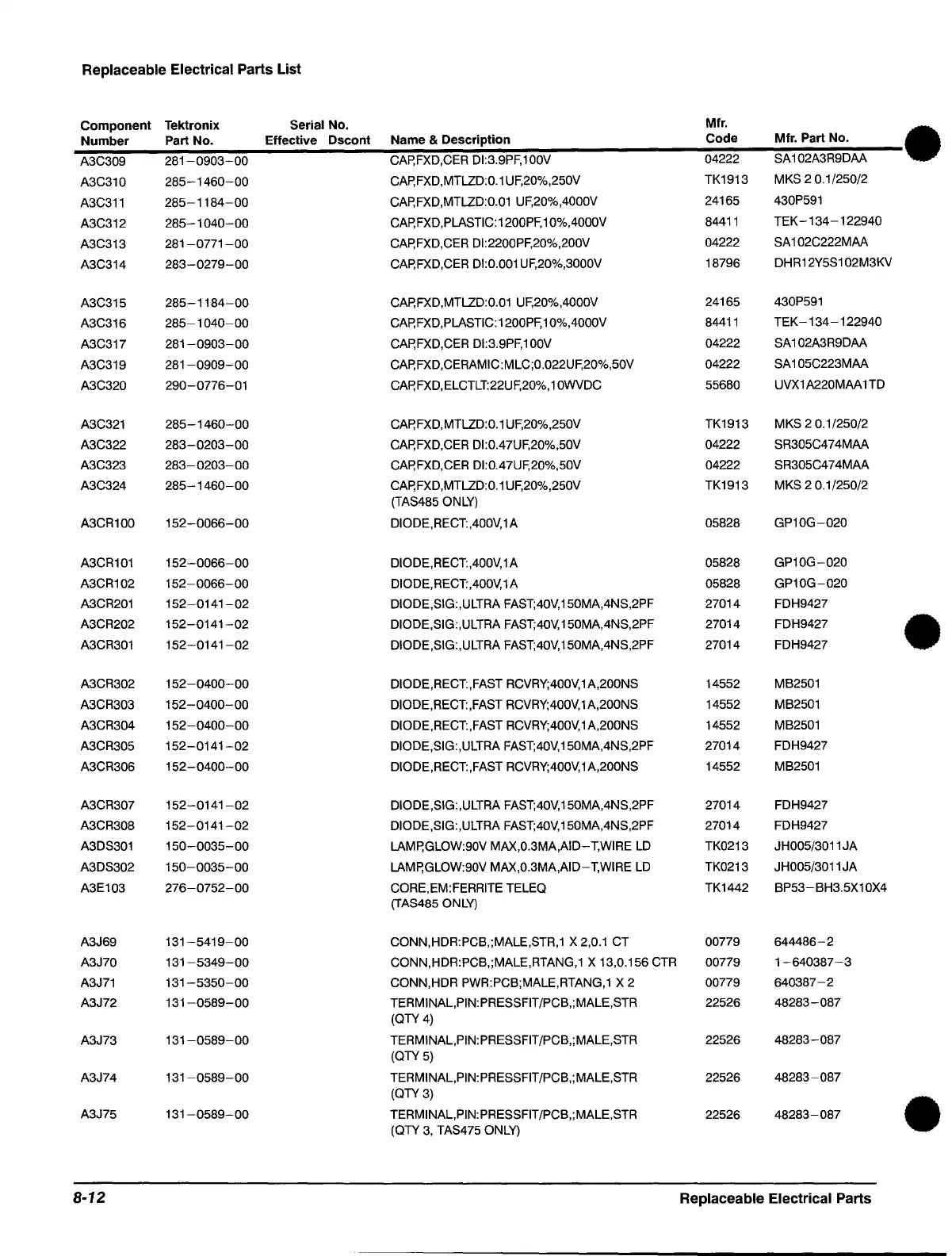

Replaceable Electrical Parts List
Component
Tektronix
Serial No.
Mfr.
•
Number
Part No.
Effective Dscont
Name
& Description
Code
Mfr. Part No.
A3C309
281-0903-00
CAP,FXD,CER DI:3.9PF,100V
04222
SA102A3R9DAA
A3C31 0
285-1460-00
CAp,FXD,MTLZD:0.1 UF,20%,250V
TK1913
MKS 2 0.1/250/2
A3C311
285-1184-00
CAP,FXD,MTLZD:0.01 UF,20%,4000V
24165
430P591
A3C312
285-1040-00
CAp,FXD,PLASTIC: 1200PF, 1 0%,4000V
84411
TEK-134-122940
A3C313
281-0771-00
CAp,FXD,CER DI:2200PF,20%,200V
04222 SA
1 02C222MAA
A3C314
283-0279-00
CAp,FXD,CER DI:0.001 UF,20%,3000V
18796
DHR12Y5S102M3KV
A3C315
285-1184-00
CAp,FXD,MTLZD:0.01 UF,20%,4000V
24165
430P591
A3C316
285-1040-00 CAp,FXD,PLASTIC:1200PF,10%,4000V
84411
TEK-134-122940
A3C317
281-0903-00 CAp,FXD,CER DI:3.9PF,1 OOV
04222
SA
1 02A3R9DAA
A3C319
281 -0909-00
CAP,FXD,CERAMIC:MLC;0.022UF,20%,50V
04222
SA
1 05C223MAA
A3C320
290-0776-01 CAp,FXD,ELCTLT:22UF,20%,10WVDC
55680
UVX1 A220MAA 1 TO
A3C321 285-1460-00 CAp,FXD,MTLZD:0.1 UF,20%,250V
TK1913 MKS 2 0.1/250/2
A3C322 283-0203-00 CAp,FXD,CER DI:0.47UF,20%,50V
04222 SR305C474MAA
A3C323
283-0203-00 CAp,FXD,CER DI:0.47UF,20%,50V 04222 SR305C474MAA
A3C324
285-1460-00 CAp,FXD,MTLZD:0.1 UF,20%,250V TK1913
MKS 2 0.1/250/2
(TAS485 ONLY)
A3CR100
152-0066-00
DIODE,RECT:,400V,1 A
05828 GP10G-020
A3CR101 152-0066-00
DIODE,RECT:,400V,1 A
05828
GP10G-020
A3CR102
152-0066-00
DIODE,RECT:,400V,1A
05828
GP10G-020
A3CR201 152-0141-02
DIODE,SIG:,ULTRA FAST;40V,150MA,4NS,2PF
27014
FDH9427
A3CR202 152-0141-02 DIODE,SIG: ,ULTRA FAST;40V,150MA,4NS,2PF
27014
FDH9427
•
A3CR301
152-0141-02
DIODE,SIG:,ULTRA FAST;40V,150MA,4NS,2PF
27014
FDH9427
A3CR302 152-0400-00 DIODE,RECT:,FAST RCVRY;400V,1 A,200NS
14552 MB2501
A3CR303
152-0400-00 DIODE,RECT: ,FAST RCVRY;400V,1 A,200NS 14552
MB2501
A3CR304
152-0400-00 DIODE,RECT:,FAST RCVRY;400V,1 A,200NS
14552 MB2501
A3CR305
152-0141-02 DIODE,SIG: ,ULTRA FAST;40V,150MA,4NS,2PF
27014
FDH9427
A3CR306 152-0400-00 DIODE,RECT: ,FAST RCVRY;400V,1 A,200NS 14552
MB2501
A3CR307
152-0141-02
DIODE,SIG:,ULTRA FAST;40V,150MA,4NS,2PF
27014
FDH9427
A3CR308 152-0141-02 DIODE,SIG: ,ULTRA FAST;40V,150MA,4NS,2PF
27014
FDH9427
A3DS301 150-0035-00 LAMp,GLOW:90V MAX,0.3MA,AID-T,WIRE LD
TK0213
JH005/3011
JA
A3DS302 150-0035-00 LAMp,GLOW:90V MAX,0.3MA,AID- T,WIRE LD
TK0213 JH005/3011 JA
A3E103
276-0752-00
CORE,EM:FERRITE TELEQ
TK1442
BP53-BH3.5X10X4
(TAS485 ONLY)
A3J69
131-5419-00 CONN,HDR:PCB,;MALE,STR,1 X 2,0.1 CT 00779
644486-2
A3J70
131-5349-00
CONN,HDR:PCB,;MALE,RTANG,1 X 13,0.156 CTR
00779 1-640387-3
A3J71 131-5350-00 CONN,HDR PWR:PCB;MALE,RTANG,1 X 2
00779 640387-2
A3J72 131-0589-00 TERMINAL,PIN:PRESSFIT/PCB,;MALE,STR
22526 48283-087
(QTY4)
A3J73
131-0589-00 TERMINAL,PIN:PRESSFIT/PCB,;MALE,STR
22526 48283-087
(QTY5)
A3J74
131-0589-00 TERMINAL,PIN:PRESSFIT/PCB,;MALE,STR
22526 48283-087
(QTY3)
•
A3J75 131-0589-00
TERMINAL,PIN: PRESSFIT /PCB,;MALE,STR 22526 48283-087
(QTY 3, TAS475 ONLy)
8-12
Replaceable Electrical Parts
