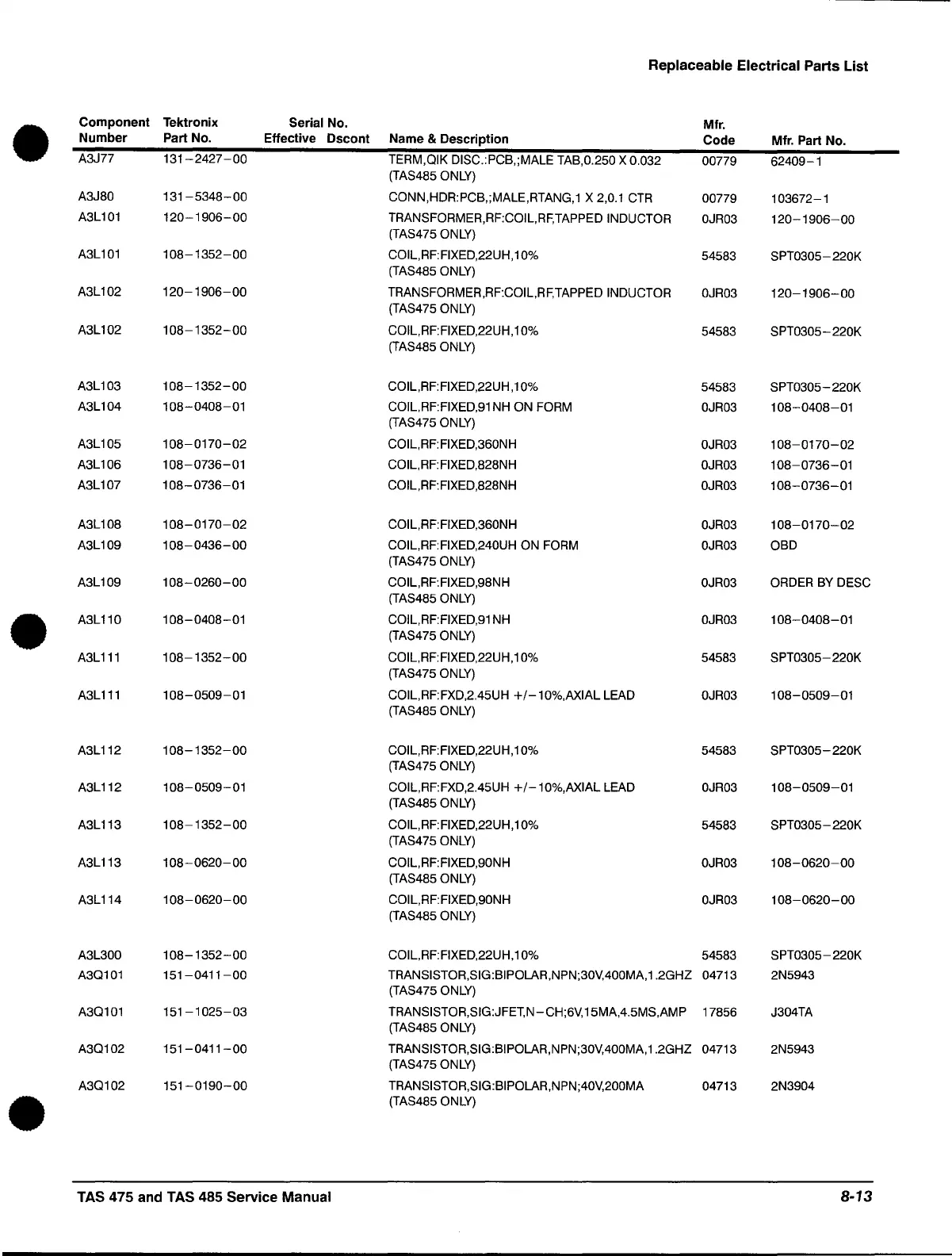

Tektronix TAS 475 Service Manual

Replaceable Electrical Parts List
•
Component Tektronix
Serial No.
Mfr .
Number Part No.
Effective Dscont
Name
& Description
Code Mfr. Part No.
A3J77
131-2427-00
TERM,OIK DISC.:PCB,;MALE TAB,0.250 X 0.032
00779
62409-1
(TAS485 ONLY)
A3J80 131-5348-00
CONN,HDR:PCB,;MALE,RTANG,1 X 2,0.1 CTR
00779 103672-1
A3L101
120-1906-00
TRANSFORMER,RF:COIL,RF,TAPPED INDUCTOR
OJR03
120-1906-00
(TAS475 ONLY)
A3L101
108-1352-00
COIL,RF:FIXED,22UH,10%
54583 SPT0305 - 220K
(TAS485
ONLY)
A3L102
120-1906-00
TRANSFORMER,RF:COIL,RF,TAPPED INDUCTOR
OJR03 120-1906-00
(TAS475 ONLY)
A3L102
108-1352-00
COIL,RF:FIXED,22UH,10%
54583
SPT0305-220K
(TAS485 ONLY)
A3L103 108-1352-00
COIL,RF:FIXED,22UH,10%
54583 SPT0305-220K
A3L104 108-0408-01
COIL,RF:FIXED,91 NH ON FORM
OJR03 108-0408-01
(TAS475 ONLY)
A3L105 108-0170-02
COIL,RF:FIXED,360NH
OJR03 108-0170-02
A3L106 108-0736-01
COIL,RF: FIXED,828NH
OJR03 108-0736-01
A3L107 108-0736-01
COIL,RF:FIXED,828NH
OJR03
108-0736-01
A3L108 108-0170-02
COIL,RF:FIXED,360NH
OJR03
108-0170-02
A3L109 108-0436-00
COIL,RF:FIXED,240UH ON FORM OJR03 OBD
(TAS475
ONLY)
A3L109 108-0260-00
COIL,RF:FIXED,98NH
OJR03
ORDER BY DESC
(TAS485
ONLY)
•
A3L110 108-0408-01 COIL,RF:FIXED,91 NH
OJR03
108-0408-01
(TAS475 ONLY)
A3L 111
108-1352-00
COIL,RF:FIXED,22UH,10% 54583 SPT0305-220K
(TAS475 ONLY)
A3L 111 108-0509-01 COIL,RF:FXD,2.45UH +/-10%,AXIAL LEAD
OJR03
108-0509-01
(TAS485 ONLY)
A3L112 108-1352-00 COIL,RF:FIXED,22UH,10% 54583 SPT0305-220K
(TAS475 ONLy)
A3L112 108-0509-01
COIL,RF:FXD,2.45UH +/-10%,AXIAL LEAD OJR03
108-0509-01
(TAS485 ONLY)
A3L113 108-1352-00 COIL,RF:FIXED,22UH,10%
54583 SPT0305-220K
(TAS475 ONLY)
A3L113 108-0620-00
COIL,RF:FIXED,90NH OJR03 108-0620-00
(TAS485 ONLY)
A3L114 108-0620-00 COIL,RF:FIXED,90NH OJR03 108-0620-00
(TAS485 ONLY)
A3L300
108-1352-00
COIL,RF:FIXED,22UH,10% 54583 SPT0305-220K
A3Q101 151-0411-00
TRANSISTOR,SIG:BIPOLAR,NPN;30V,400MA,1.2GHZ 04713 2N5943
(TAS475 ONLY)
A30101
151-1025-03
TRANSISTOR,SIG:JFET,N - CH;6V, 15MA,4.5MS,AMP
17856
J304TA
(TAS485
ONLY)
A30102 151-0411-00
TRANSISTOR,SIG:BIPOLAR,NPN;30V,400MA,1.2GHZ 04713 2N5943
(TAS475 ONLY)
A30102 151-0190-00
TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA 04713 2N3904
•
(TAS485 ONLY)
TAS 475 and TAS 485 Service Manual
8-13
Scan by Zenith
