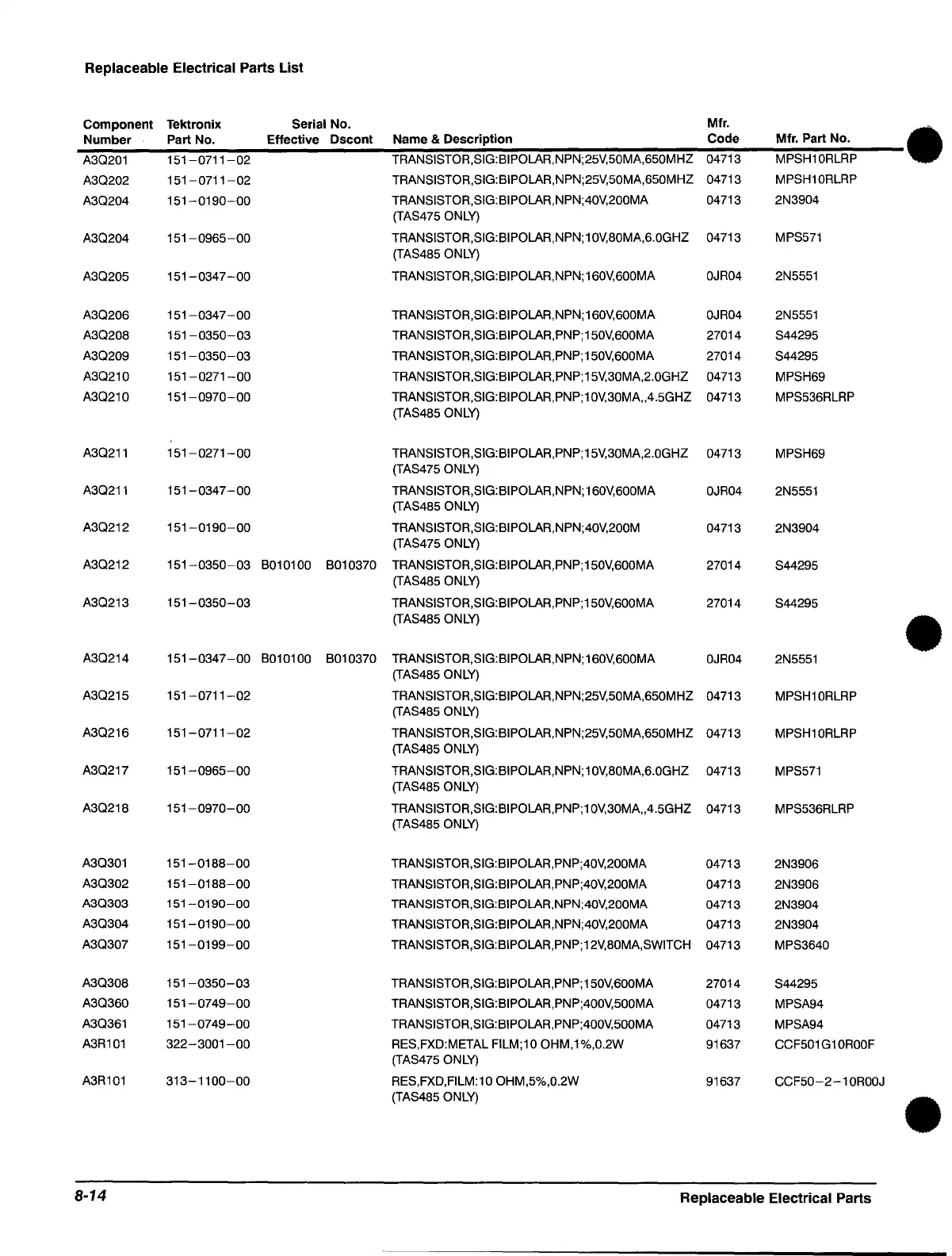

Tektronix TAS 475 Service Manual

Replaceable Electrical Parts List
Component Tektronix
Serial No.
Mfr.
•
Number Part No.
Effective Dscont
Name
& Description
Code Mfr.
Part No.
A3Q201 151-0711-02
TRANSISTOR,SIG:BIPOLAR,NPN;25V,50MA,650MHZ
04713 MPSH10RLRP
A3Q202
151-0711-02
TRANSISTOR,SIG:BIPOLAR,NPN;25V,50MA,650MHZ
04713 MPSH10RLRP
A3Q204
151-0190-00
TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA 04713 2N3904
(TAS475 ONLY)
A3Q204
151-0965-00
TRANSISTOR,SIG:BIPOLAR,NPN; 1 OV,80MA,6.0GHZ 04713 MPS571
(TAS485
ONLY)
A3Q205 151-0347 -00
TRANSISTOR,SIG:BIPOLAR,NPN; 160V,600MA OJR04 2N5551
A3Q206 151-0347-00 TRANSISTOR,SIG:BIPOLAR,NPN;160V,600MA OJR04 2N5551
A3Q208
151-0350-03 TRANSISTOR,SIG:BIPOLAR,PNP;150V,600MA 27014 S44295
A3Q209
151-0350-03 TRANSISTOR,SIG:BIPOLAR,PNP;150V,600MA 27014
S44295
A3Q21 0 151-0271-00
TRANSISTOR,SIG:BIPOLAR,PNP;15V,30MA,2.0GHZ 04713 MPSH69
A3Q21 0 151-0970-00
TRANSISTOR,SIG:BIPOLAR,PNP;10V,30MA,.4.5GHZ 04713 MPS536RLRP
(TAS485
ONLY)
A3Q211
151-0271-00
TRANSISTOR,SIG:BIPOLAR,PNP;15V,30MA,2.0GHZ
04713 MPSH69
(TAS475
ONLY)
A3Q211
151-0347 -00 TRANSISTOR,SIG:BIPOLAR,NPN;160V,600MA
OJR04
2N5551
(TAS485 ONLY)
A3Q212 151-0190-00
TRANSISTOR,SIG:BIPOLAR,NPN;40V,200M
04713 2N3904
(TAS475 ONLY)
A3Q212
151-0350-03
B010100 B010370 TRANSISTOR,SIG:BIPOLAR,PNP;150V,600MA 27014
S44295
(TAS485
ONLY)
A3Q213
151-0350-03 TRANSISTOR,SIG:BIPOLAR,PNP;150V,600MA
27014 S44295
(TAS485
ONLY)
•
A3Q214
151-0347 -00
B010100 B010370 TRANSISTOR,SIG:BIPOLAR,NPN; 160V,600MA
OJR04 2N5551
(TAS485 ONLY)
A3Q215
151-0711-02
TRANSISTOR,SIG:BIPOLAR,NPN;25V,50MA,650MHZ
04713 MPSH10RLRP
(TAS485
ONLY)
A3Q216
151-0711-02
TRANSISTOR,SIG:BIPOLAR,NPN;25V,50MA,650MHZ
04713
MPSH10RLRP
(TAS485
ONLY)
A3Q217
151-0965-00
TRANSISTOR,SIG:BIPOLAR,NPN;10V,80MA,6.0GHZ
04713 MPS571
(TAS485
ONLY)
A3Q218
151-0970-00
TRANSISTOR,SIG:BIPOLAR,PNP;10V,30MA,.4.5GHZ
04713 MPS536RLRP
(TAS485
ONLY)
A3Q301 151-0188-00
TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA
04713 2N3906
A3Q302
151-0188-00
TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA 04713 2N3906
A3Q303 151-0190-00
TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA
04713 2N3904
A3Q304
151-0190-00
TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA 04713 2N3904
A3Q307 151-0199-00
TRANSISTOR,SIG:BIPOLAR,PNP;12V,80MA,SWITCH
04713 MPS3640
A3Q308
151-0350-03
TRANSISTOR,SIG:BIPOLAR,PNP;150V,600MA 27014
S44295
A3Q360
151-0749-00
TRANSISTOR,SIG:BIPOLAR,PNP;400V,500MA 04713
MPSA94
A3Q361 151-0749-00
TRANSISTOR,SIG:BIPOLAR,PNP;400V,500MA 04713
MPSA94
A3R101
322-3001-00
RES,FXD:METAL FILM;10 OHM,1%,O.2W 91637
CCF501
G1 OROOF
(TAS475 ONLy)
A3R101
313-1100-00
RES,FXD,FILM:10 OHM,5%,O.2W
91637
CCF50 - 2 -1 OROOJ
(TAS485 ONLY)
•
8-14
Replaceable Electrical Parts
