Tektronix TAS 475 Service Manual

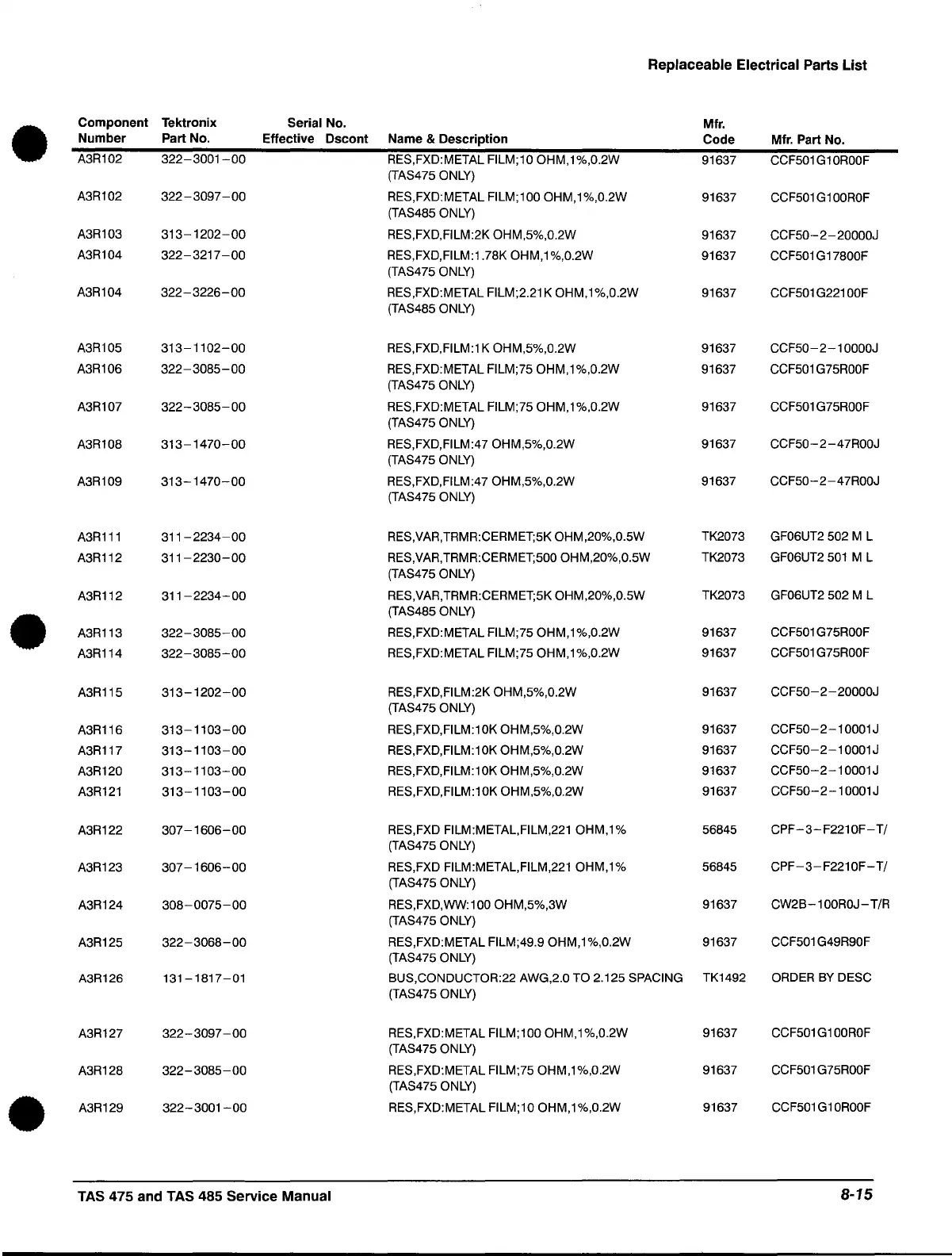

Replaceable Electrical Parts List
•
Component Tektronix
Serial No.
Mfr.
Number Part No.
Effective
Dscont Name & Description
Code Mfr. Part No.
A3R102 322-3001-00
RES,FXD:METAL FILM;10 OHM,1%,O.2W
91637 CCF501 G1 OROOF
(TAS475 ONLY)
A3R102 322-3097-00
RES,FXD:METAL FILM;100 OHM,1%,O.2W
91637
CCF501 G1 OOROF
(TAS485 ONLY)
A3R103
313-1202-00
RES,FXD,FILM:2K OHM,5%,O.2W
91637 CCF50-2-20000J
A3R104 322-3217 -00
RES,FXD,FILM:1.78K OHM,1%,O.2W
91637 CCF501G17800F
(TAS475 ONLY)
A3R104 322-3226-00
RES,FXD:METAL FILM;2.21 K OHM,1%,O.2W
91637 CCF501 G221 OOF
(TAS485 ONLY)
A3R105 313-1102-00
RES,FXD,FILM:1 K OHM,5%,O.2W 91637 CCF50-2-10000J
A3R106 322-3085-00
RES,FXD:METAL FILM;75 OHM,1%,O.2W 91637 CCF501 G75ROOF
(TAS475 ONLY)
A3R107 322-3085-00 RES,FXD:METAL FILM;75 OHM,1%,O.2W 91637 CCF501 G75ROOF
(TAS475 ONLY)
A3R108 313-1470-00 RES,FXD,FILM:470HM,5%,O.2W
91637 CCF50-2-47ROOJ
(TAS475 ONLY)
A3R109 313-1470-00 RES,FXD,FILM:470HM,5%,O.2W
91637
CCF50-2-47ROOJ
(TAS475 ONLY)
A3R111 311-2234-00
RES,VAR,TRMR:CERMET;5K OHM,20%,O.5W TK2073
GF06UT2
502 M L
A3R112
311-2230-00 RES,VAR,TRMR:CERMET;500 OHM,20%,O.5W TK2073
GF06UT2
501 M L
(TAS475
ONLY)
A3R112
311-2234-00 RES,VAR,TRMR:CERMET;5K OHM,20%,O.5W
TK2073 GF06UT2 502 M L
•
(TAS485 ONLY)
A3R113 322-3085-00
RES,FXD:METAL FILM;75 OHM,1%,O.2W 91637
CCF501 G75ROOF
A3R114
322-3085-00 RES,FXD:METAL FILM;75 OHM,1%,O.2W
91637 CCF501 G75ROOF
A3R115 313-1202-00
RES,FXD,FILM:2K OHM,5%,O.2W 91637
CCF50-2-20000J
(TAS475 ONLY)
A3R116
313-1103-00 RES,FXD,FILM:1 OK OHM,5%,O.2W
91637
CCF50-2-10001J
A3R117
313-1103-00 RES,FXD,FILM:10K OHM,5%,O.2W 91637
CCF50-2-10001J
A3R120
313-1103-00 RES,FXD,FILM:10K OHM,5%,O.2W
91637
CCF50-2-10001J
A3R121
313-1103-00 RES,FXD,FILM:10K OHM,5%,O.2W
91637
CCF50-2-10001J
A3R122
307-1606-00 RES,FXD FILM:METAL,FILM,221 OHM,1%
56845
CPF-3-F2210F- T/
(TAS475 ONLY)
A3R123 307-1606-00
RES,FXD FILM:METAL,FILM,221 OHM,1% 56845
CPF-3-F2210F- T/
(TAS475 ONLY)
A3R124 308-0075-00 RES,FXD,WW:100 OHM,5%,3W
91637
CW2B-100ROJ- T/R
(TAS475
ONLY)
A3R125
322 - 3068 - 00 RES,FXD:METAL FILM;49.9 OHM,1%,O.2W 91637
CCF501 G49R90F
(TAS475
ONLY)
A3R126
131-1817-01 BUS,CONDUCTOR:22 AWG,2.0 TO 2.125 SPACING
TK1492 ORDER BY DESC
(TAS475 ONLY)
A3R127
322-3097-00 RES,FXD:METAL FILM;100 OHM,1%,O.2W
91637 CCF501 G1 OOROF
(TAS475 ONLY)
A3R128
322 -
3085 - 00 RES,FXD:METAL FILM;75 OHM,1%,O.2W 91637
CCF501 G75ROOF
(TAS475 ONLY)
•
A3R129
322-3001-00 RES,FXD:METAL FILM;10 OHM,1%,O.2W 91637
CCF501 G1 OROOF
TAS 475 and TAS 485 Service Manual
8-15
