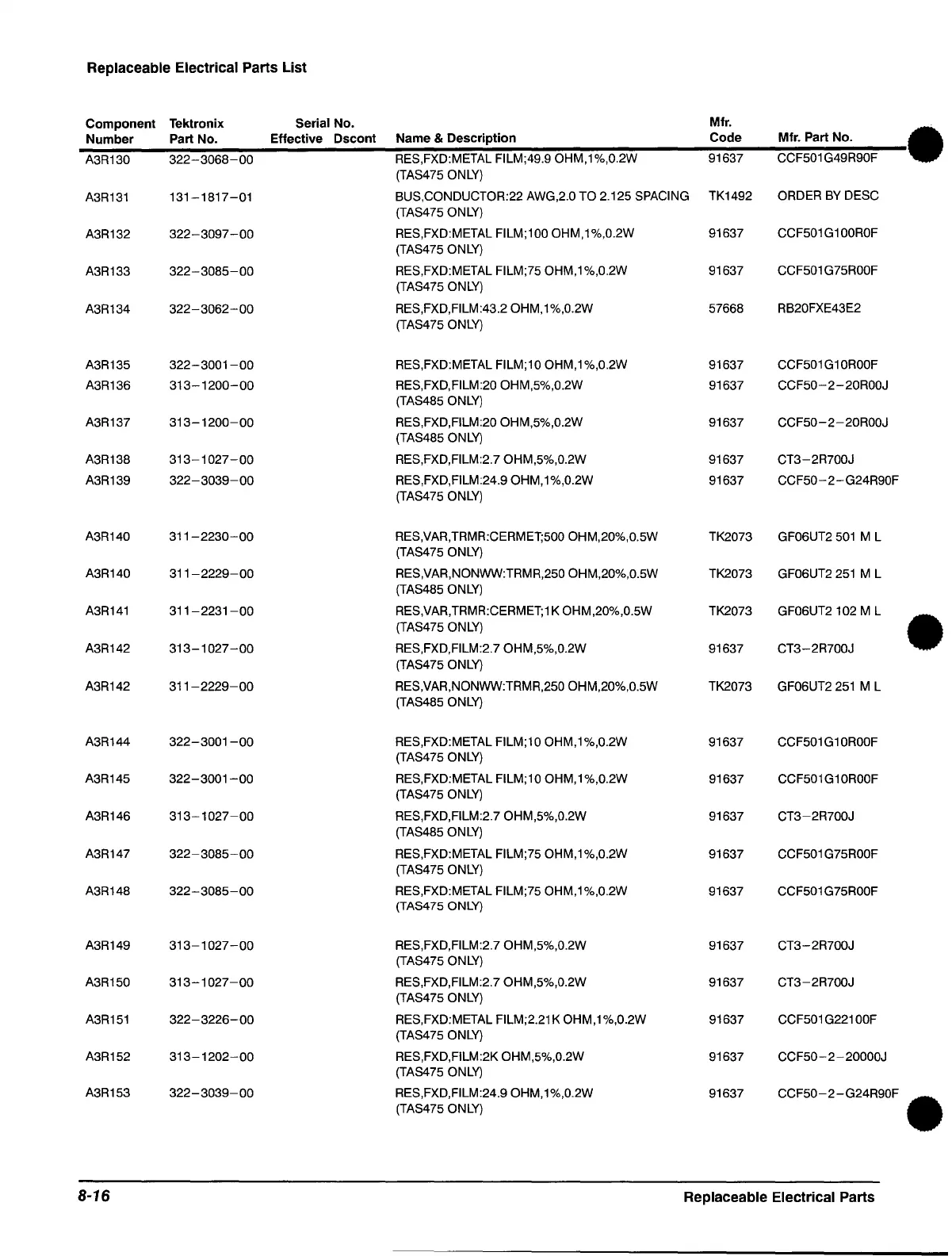

Tektronix TAS 475 Service Manual

Replaceable Electrical Parts List
Component
Tektronix
Serial No.
Mfr.
•
Number
Part No. Effective Dscont
Name
& Description
Code
Mfr. Part No.
A3R130
322-3068-00
RES,FXD:METAL FILM;49.9 OHM,1%,0.2W
91637 CCF501 G49R90F
(TAS475 ONLY)
A3R131
131-1817-01
BUS,CONDUCTOR:22 AWG,2.0 TO 2.125 SPACING TK1492
ORDER
BY DESC
(TAS475 ONLY)
A3R132 322-3097-00
RES,FXD:METAL FILM;100 OHM,1%,0.2W
91637 CCF501 G1 OOROF
(TAS475 ONLY)
A3R133
322-3085-00
RES,FXD:METAL FILM;75 OHM,1%,0.2W
91637 CCF501 G75ROOF
(TAS475 ONLY)
A3R134
322-3062-00
RES,FXD,FILM:43.2 OHM, 1 %,0.2W 57668
RB20FXE43E2
(TAS475 ONLY)
A3R135 322-3001-00
RES,FXD:METAL FILM;10 OHM,1%,0.2W
91637
CCF501 G1 OROOF
A3R136
313-1200-00 RES,FXD,FILM:20 OHM,5%,0.2W
91637
CCF50-2-20ROOJ
(TAS485 ONLY)
A3R137 313-1200-00 RES,FXD,FILM:20 OHM,5%,0.2W 91637 CCF50-2-20ROOJ
(TAS485 ONLY)
A3R138
313-1027-00 RES,FXD,FILM:2.70HM,5%,0.2W
91637
CT3-2R700J
A3R139 322-3039-00 RES,FXD,FILM:24.90HM,1%,0.2W 91637 CCF50-2-G24R90F
(TAS475 ONLY)
A3R140
311-2230-00
RES,VAR,TRMR:CERMET;500 OHM,20%,0.5W TK2073 GF06UT2 501 M L
(TAS475 ONLY)
A3R140 311-2229-00 RES,VAR,NONWW:TRMR,250 OHM,20%,O.5W
TK2073
GF06UT2251 M L
(TAS485 ONLY)
A3R141 311-2231-00 RES,VAR,TRMR:CERMET;1 K OHM,20%,0.5W
TK2073 GF06UT2 102
M L
•
(TAS475 ONLY)
A3R142 313-1027-00 RES,FXD,FILM:2.70HM,5%,0.2W 91637 CT3-2R700J
(TAS475 ONLy)
A3R142 311-2229-00 RES,VAR,NONWW:TRMR,250 OHM,20%,0.5W TK2073 GF06UT2251 M L
(TAS485 ONLY)
A3R144 322-3001 -00
RES,FXD:METAL FILM;10 OHM,1%,0.2W 91637 CCF501 G1 OROOF
(TAS475 ONLY)
A3R145 322-3001-00 RES,FXD:METAL FILM;1 0 OHM, 1 %,0.2W
91637
CCF501G10ROOF
(TAS475
ONLY)
A3R146 313-1027-00 RES,FXD,FILM:2.70HM,5%,0.2W 91637 CT3-2R700J
(TAS485 ONLY)
A3R147 322-3085-00 RES,FXD:METAL FILM;75 OHM,1%,0.2W
91637 CCF501 G75ROOF
(TAS475 ONLY)
A3R148 322-3085-00 RES,FXD:METAL FILM;75 OHM,1%,O.2W 91637 CCF501 G75ROOF
(TAS475 ONLy)
A3R149 313-1027-00 RES,FXD,FILM:2.70HM,5%,0.2W
91637
CT3-2R700J
(TAS475 ONLY)
A3R150 313-1027-00 RES,FXD,FILM:2.70HM,5%,0.2W 91637 CT3-2R700J
(TAS475 ONLY)
A3R151 322-3226-00 RES,FXD:METAL FILM;2.21 K OHM, 1 %,0.2W 91637 CCF501 G221 OOF
(TAS475 ONLY)
A3R152 313-1202-00 RES,FXD,FILM:2K OHM,5%,0.2W
91637 CCF50-2-20000J
(TAS475 ONLy)
A3R153 322-3039-00 RES,FXD,FILM:24.9 OHM,1 %,O.2W
91637
CCF50-2-G24R90F.
(TAS475 ONLY)
8-16
Replaceable Electrical Parts
Scan by Zenith
