Tektronix TAS 475 Service Manual

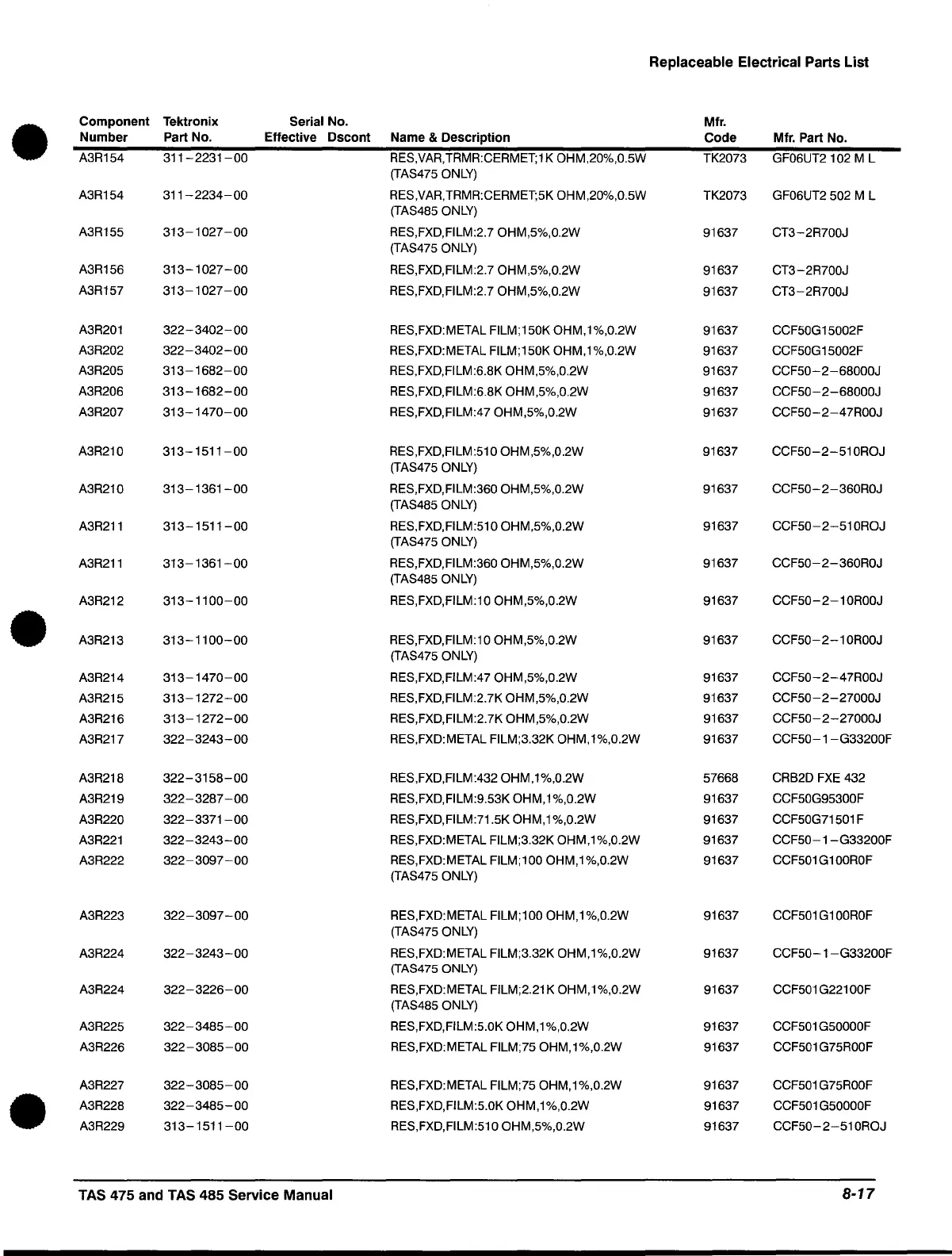

Replaceable Electrical Parts List
•
Component Tektronix Serial No.
Mfr.
Number Part No. Effective Dscont
Name
& Description
Code Mfr. Part No.
A3R154 311-2231-00
RES,VAR,TRMR:CERMET;1 K OHM,20%,0.5W TK2073
GF06UT2 102
M L
(TAS475 ONLY)
A3R154
311-2234-00
RES,VAR,TRMR:CERMET;5K OHM,20%,0.5W
TK2073 GF06UT2 502
M L
(TAS485 ONLY)
A3R155 313-1027-00
RES,FXD,FILM:2.70HM,5%,0.2W 91637 CT3-2R700J
(TAS475 ONLY)
A3R156 313-1027-00
RES,FXD,FILM:2.70HM,5%,0.2W 91637
CT3-2R700J
A3R157 313-1027-00
RES,FXD,FILM:2.70HM,5%,0.2W
91637 CT3-2R700J
A3R201
322-3402-00 RES,FXD:METAL FILM;150K OHM,1%,0.2W
91637 CCF50G15002F
A3R202
322-3402-00
RES,FXD:METAL FILM;150K OHM, 1 %,0.2W
91637 CCF50G 15002F
A3R205
313-1682-00
RES,FXD,FILM:6.8K OHM,5%,0.2W
91637
CCF50-2-68000J
A3R206 313-1682-00
RES,FXD,FILM:6.8K OHM,5%,0.2W 91637 CCF50-2-68000J
A3R207 313-1470-00 RES,FXD,FILM:470HM,5%,0.2W 91637 CCF50-2-47ROOJ
A3R21 0 313-1511-00 RES,FXD,FILM:510 OHM,5%,0.2W 91637 CCF50-2-510ROJ
(TAS475 ONLY)
A3R21 0
313-1361-00
RES,FXD,FILM:360 OHM,5%,0.2W 91637
CCF50-2-360ROJ
(TAS485 ONLY)
A3R211 313-1511-00 RES,FXD,FILM:510 OHM,5%,0.2W 91637
CCF50-2-510ROJ
(TAS475 ONLY)
A3R211
313-1361-00 RES,FXD,FILM:360 OHM,5%,0.2W 91637 CCF50-2-360ROJ
(TAS485 ONLY)
A3R212 313-1100-00 RES,FXD,FILM:10 OHM,5%,0.2W 91637
CCF50 - 2 -1 OROOJ
•
A3R213
313-1100-00 RES,FXD,FILM:100HM,5%,0.2W 91637 CCF50-2-10ROOJ
(TAS475 ONLY)
A3R214
313-1470-00
RES,FXD,FILM:470HM,5%,0.2W
91637 CCF50-2-47ROOJ
A3R215
313-1272-00 RES,FXD,FILM:2.7K OHM,5%,0.2W 91637 CCF50-2-27000J
A3R216
313-1272-00 RES,FXD,FILM:2.7K OHM,5%,0.2W 91637
CCF50-2-27000J
A3R217 322-3243-00 RES,FXD:METAL FILM;3.32K OHM, 1 %,0.2W 91637
CCF50-1-G33200F
A3R218
322-3158-00 RES,FXD,FILM:4320HM,1%,0.2W 57668 CRB2D FXE 432
A3R219
322-3287-00
RES,FXD,FILM:9.53K OHM, 1 %,0.2W 91637 CCF50G95300F
A3R220
322-3371-00 RES,FXD,FILM:71.5K OHM,1 %,0.2W 91637
CCF50G71501 F
A3R221
322-3243-00 RES,FXD:METAL FILM;3.32K OHM,1 %,0.2W 91637
CCF50-1-G33200F
A3R222
322-3097-00 RES,FXD:METAL FILM;1 00 OHM, 1 %,0.2W 91637 CCF501 G1 OOROF
(TAS475 ONLY)
A3R223
322-3097-00
RES,FXD:METAL FILM;100 OHM,1%,0.2W 91637 CCF501 G1 OOROF
(TAS475 ONLY)
A3R224
322-3243-00 RES,FXD:METAL FILM;3.32K OHM, 1 %,0.2W 91637 CCF50-1-G33200F
(TAS475 ONLY)
A3R224 322-3226-00
RES,FXD:METAL FILM;2.21K OHM,1%,0.2W
91637
CCF501 G221 OOF
(TAS485 ONLY)
A3R225
322-3485-00
RES,FXD,FILM:5.0K OHM,1%,0.2W 91637 CCF501 G50000F
A3R226
322 -
3085 - 00 RES,FXD:METAL FILM;75 OHM,1%,0.2W 91637 CCF501 G75ROOF
A3R227 322-3085-00 RES,FXD:METAL FILM;75 OHM,1%,0.2W 91637 CCF501 G75ROOF
•
A3R228 322-3485-00
RES,FXD,FILM:5.0K OHM,1%,0.2W 91637 CCF501 G50000F
A3R229 313-1511-00 RES,FXD,FILM:510 OHM,5%,0.2W 91637 CCF50-2-510ROJ
TAS 475 and TAS 485 Service Manual
8-17
