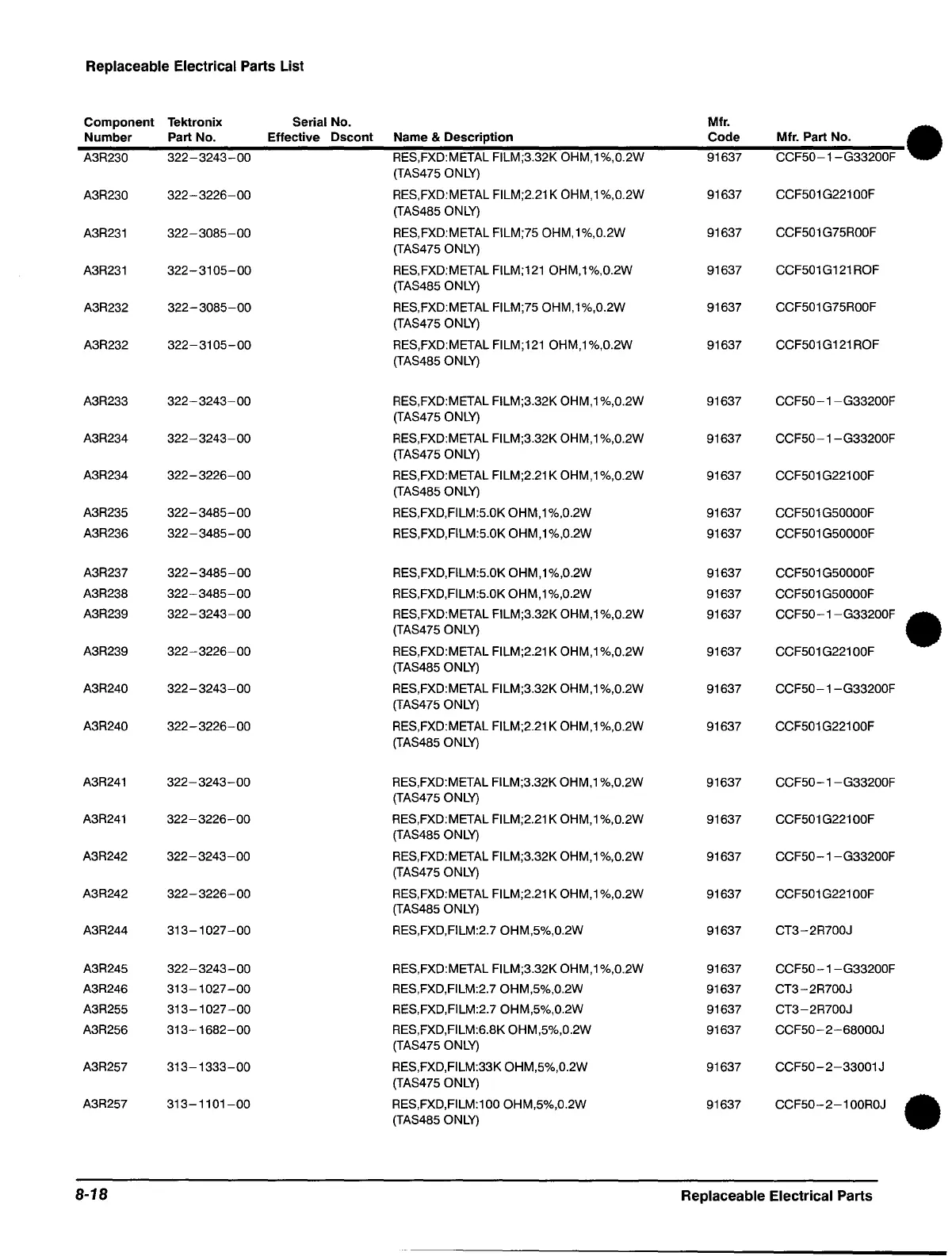

Tektronix TAS 475 Service Manual

Replaceable Electrical Parts List
Component Tektronix
Serial No. Mfr.
•
Number Part No.
Effective Dscont Name
& Description Code Mfr. Part No.
A3R230
322-3243-00 RES,FXD:METAL FILM;3.32K OHM,1%,O.2W 91637
CCF50-1-G33200F
(TAS475 ONLY)
A3R230
322-3226-00 RES,FXD:METAL FILM;2.21 K OHM,1 %,O.2W
91637 CCF501 G221 OOF
(TAS485 ONLY)
A3R231
322-3085-00 RES,FXD:METAL FILM;75 OHM,1%,O.2W
91637 CCF501 G75ROOF
(TAS475 ONLY)
A3R231 322-3105-00
RES,FXD:METAL FILM;121 OHM,1%,O.2W 91637 CCF501 G121 ROF
(TAS485 ONLY)
A3R232 322-3085-00 RES,FXD:METAL FILM;75 OHM,1 %,O.2W 91637
CCF501 G75ROOF
(TAS475 ONLY)
A3R232 322-3105-00 RES,FXD:METAL FILM;121 OHM,1%,O.2W 91637
CCF501 G121 ROF
(TAS485 ONLY)
A3R233 322-3243-00 RES,FXD:METAL FILM;3.32K OHM,1 %,O.2W
91637
CCF50-1-G33200F
(TAS475 ONLY)
A3R234 322-3243-00 RES,FXD:METAL FILM;3.32K OHM,1 %,O.2W
91637
CCF50-1-G33200F
(TAS475 ONLY)
A3R234 322-3226-00
RES,FXD:METAL FILM;2.21 K OHM,1 %,O.2W 91637 CCF501 G221 OOF
(TAS485 ONLY)
A3R235 322-3485-00 RES,FXD,FILM:5.0K OHM,1 %,O.2W
91637 CCF501 G50000F
A3R236
322 - 3485 -
00
RES,FXD,FILM:5.0K OHM,1%,O.2W
91637 CCF501 G50000F
A3R237 322 - 3485 - 00
RES,FXD,FILM:5.0K OHM,1%,O.2W
91637 CCF501 G50000F
A3R238 322-3485-00 RES,FXD,FILM:5.0K OHM,1%,O.2W
91637 CCF501 G50000F
A3R239 322-3243-00
RES,FXD:METAL FILM;3.32K OHM,1%,O.2W 91637 CCF50-1-G33200F
•
(TAS475 ONLY)
A3R239 322-3226-00
RES,FXD:METAL FILM;2.21 K OHM,1 %,O.2W 91637 CCF501 G221 OOF
(TAS485 ONLY)
A3R240
322-3243-00 RES,FXD:METAL FILM;3.32K OHM,1 %,O.2W
91637 CCF50-1-G33200F
(TAS475 ONLY)
A3R240
322-3226-00 RES,FXD: METAL FILM;2.21 K OHM ,1 %,O.2W
91637 CCF501 G221 OOF
(TAS485 ONLY)
A3R241 322-3243-00
RES,FXD:METAL FILM;3.32K OHM,1 %,O.2W 91637 CCF50-1-G33200F
(TAS475 ONLY)
A3R241 322-3226-00
RES,FXD:METAL FILM;2.21 K OHM,1 %,O.2W
91637
CCF501 G221 OOF
(TAS485 ONLY)
A3R242 322-3243-00
RES,FXD:METAL FILM;3.32K OHM,1 %,O.2W 91637 CCF50-1-G33200F
(TAS475 ONLY)
A3R242 322-3226-00
RES,FXD:METAL FILM;2.21 K OHM,1 %,O.2W
91637
CCF501 G221 OOF
(TAS485 ONLY)
A3R244 313-1027-00 RES,FXD,FILM:2.70HM,5%,O.2W
91637
CT3-2R700J
A3R245
322-3243-00 RES,FXD:METAL FILM;3.32K OHM,1 %,O.2W 91637 CCF50-1-G33200F
A3R246 313-1027-00
RES,FXD,FILM:2.70HM,5%,O.2W 91637 CT3-2R700J
A3R255 313-1027-00 RES,FXD,FILM:2.70HM,5%,O.2W 91637 CT3-2R700J
A3R256 313-1682-00 RES,FXD,FILM:6.8K OHM,5%,O.2W 91637 CCF50-2-68000J
(TAS475 ONLY)
A3R257
313-1333-00 RES,FXD,FILM:33K OHM,5%,O.2W 91637
CCF50-2-33001J
(TAS475 ONLY)
A3R257
313-1101-00
RES,FXD,FILM:1000HM,5%,O.2W 91637 CCF50-2-100ROJ
•
(TAS485 ONLY)
8-18
Replaceable Electrical Parts
