Tektronix TAS 475 Service Manual

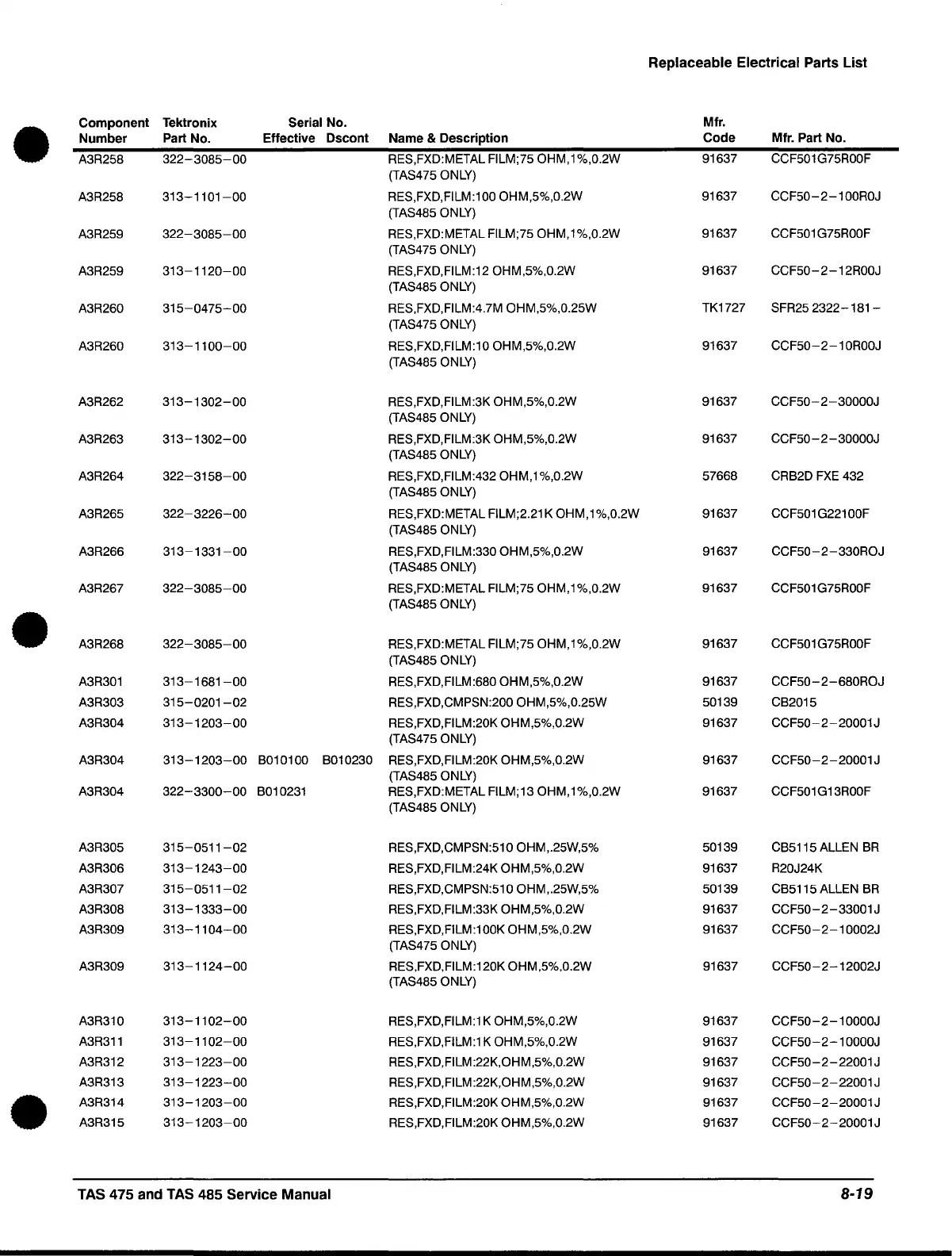

Replaceable Electrical Parts List
•
Component
Tektronix Serial No.
Mfr.
Number Part No.
Effective Dscont Name & Description
Code Mfr. Part No.
A3R258
322-3085-00 RES,FXD:METAL FILM;75 OHM, 1 %,0.2W
91637
CCF501 G75ROOF
(TAS475 ONLY)
A3R258 313-1101-00
RES,FXD,FILM:100 OHM,5%,0.2W
91637 CCF50-2-100ROJ
(TAS485 ONLY)
A3R259
322-3085-00 RES,FXD:METAL FILM;75 OHM,1%,0.2W
91637 CCF501 G75ROOF
(TAS475 ONLY)
A3R259
313-1120-00 RES,FXD,FILM:120HM,5%,0.2W
91637 CCF50-2-12ROOJ
(TAS485
ONLY)
A3R260
315-0475-00 RES,FXD,FILM:4.7M OHM,5%,0.25W
TK1727 SFR252322-181-
(TAS475 ONLY)
A3R260
313-1100-00 RES,FXD,FILM:10 OHM,5%,0.2W
91637 CCF50-2-10ROOJ
(TAS485 ONLY)
A3R262 313-1302-00 RES,FXD,FILM:3K OHM,5%,0.2W
91637 CCF50-2-30000J
(TAS485 ONLY)
A3R263 313-1302-00 RES,FXD,FILM:3K OHM,5%,0.2W
91637 CCF50-2-30000J
(TAS485 ONLY)
A3R264
322-3158-00
RES,FXD,FILM:432 OHM,1 %,0.2W
57668 CRB2D FXE 432
(TAS485 ONLY)
A3R265
322-3226-00
RES,FXD:METAL FILM;2.21 K OHM,1 %,0.2W
91637 CCF501 G221 OOF
(TAS485 ONLY)
A3R266
313-1331-00 RES,FXD,FILM:330 OHM,5%,0.2W 91637 CCF50-2-330ROJ
(TAS485 ONLY)
A3R267
322-3085-00 RES,FXD:METAL FILM;75 OHM,1%,0.2W 91637 CCF501 G75ROOF
(TAS485 ONLY)
•
A3R268 322-3085-00 RES,FXD:METAL FILM;75 OHM,1%,0.2W
91637 CCF501 G75ROOF
(TAS485 ONLY)
A3R301
313-1681 -00
RES,FXD,FILM:680 OHM,5%,0.2W
91637 CCF50-2-680ROJ
A3R303 315-0201 -02 RES,FXD,CMPSN:200 OHM,5%,0.25W 50139 CB2015
A3R304
313-1203-00 RES,FXD,FILM:20K OHM,5%,0.2W 91637 CCF50-2-20001J
(TAS475 ONLY)
A3R304
313-1203-00
B010100 B010230 RES,FXD,FILM:20K OHM,5%,0.2W
91637 CCF50-2-20001J
(TAS485 ONLY)
A3R304 322-3300-00 B010231 RES,FXD:METAL FILM;13 OHM,1%,0.2W
91637
CCF501 G13ROOF
(TAS485 ONLY)
A3R305 315-0511 -02 RES,FXD,CMPSN:510 OHM,.25W,5% 50139 CB5115 ALLEN BR
A3R306
313-1243-00
RES,FXD,FILM:24K OHM,5%,0.2W 91637 R20J24K
A3R307
315-0511-02
RES,FXD,CMPSN:5100HM,.25W,5%
50139
CB5115 ALLEN BR
A3R308
313-1333-00 RES,FXD,FILM:33K OHM,5%,0.2W 91637 CCF50-2-33001J
A3R309
313-1104-00
RES,FXD,FILM:100K OHM,5%,0.2W 91637 CCF50-2-10002J
(TAS475 ONLY)
A3R309
313-1124-00
RES,FXD,FILM:120K OHM,5%,0.2W 91637 CCF50-2-12002J
(TAS485 ONLY)
A3R31 0 313-1102-00 RES,FXD,FILM:1 K OHM,5%,0.2W 91637 CCF50-2-10000J
A3R311
313-1102-00
RES,FXD,FILM:1 K OHM,5%,0.2W 91637 CCF50-2-10000J
A3R312
313-1223-00
RES,FXD,FILM:22K,OHM,5%,0.2W 91637 CCF50-2-22001J
A3R313 313-1223-00
RES,FXD,FILM:22K,OHM,5%,0.2W
91637
CCF50-2-22001 J
•
A3R314
313-1203-00
RES,FXD,FILM:20K OHM,5%,0.2W 91637 CCF50-2-20001J
A3R315
313-1203-00
RES,FXD,FILM:20K OHM,5%,0.2W 91637 CCF50-2-20001J
TAS 475 and TAS 485 Service Manual
8-19
