Tektronix TAS 475 Service Manual

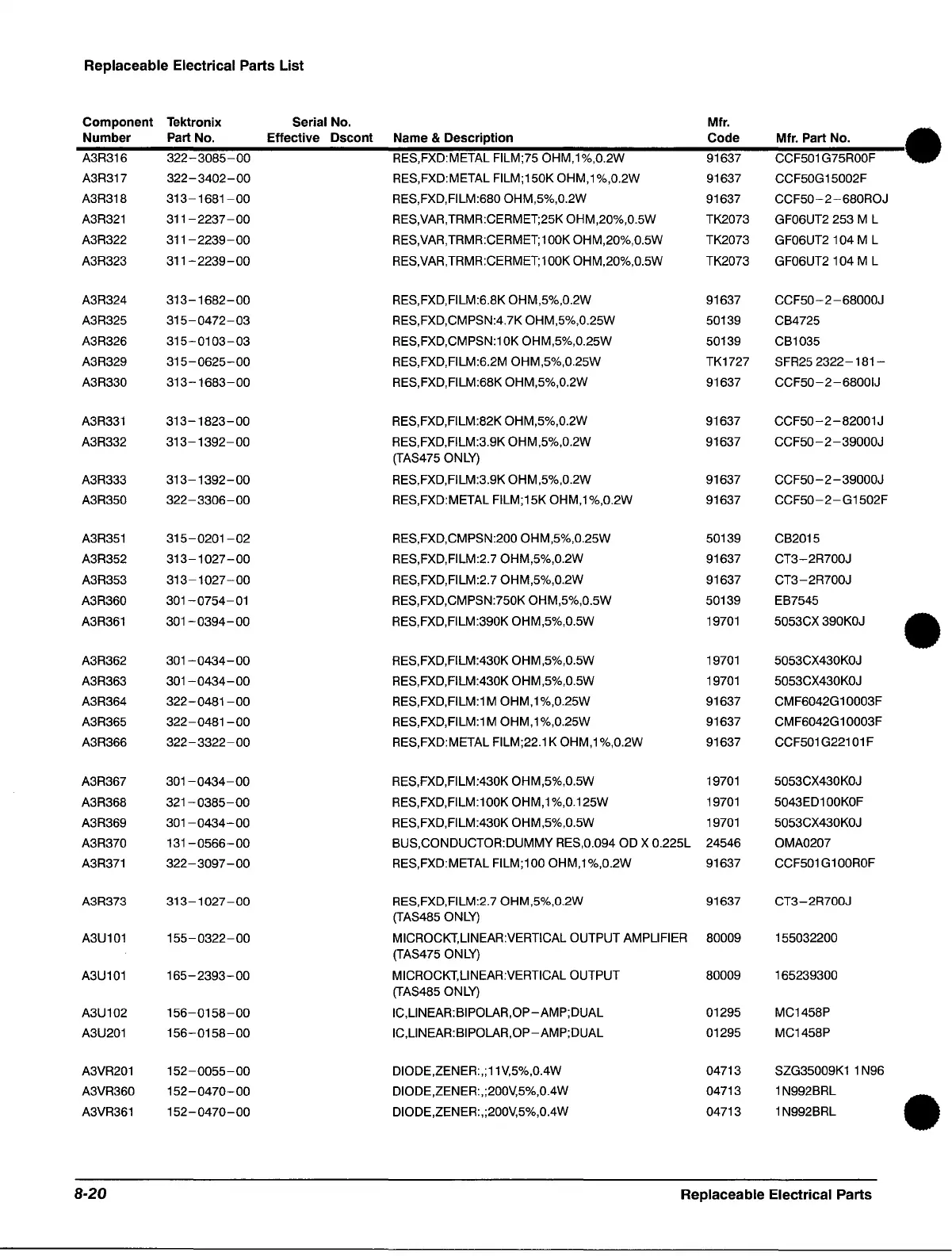

Replaceable Electrical Parts List
Component Tektronix Serial No. Mfr.
Number
Part No.
Effective
Dscont
Name
& Description Code Mfr. Part No.
•
A3R316 322 - 3085 - 00 RES,FXD:METAL FILM;75 OHM,1%,0.2W 91637
CCF501 G75ROOF
A3R317 322-3402-00 RES,FXD:METAL FILM;150K OHM,1%,0.2W 91637
CCF50G15002F
A3R318
313-1681-00
RES,FXD,FILM:680 OHM,5%,0.2W 91637 CCF50-2-680ROJ
A3R321
311-2237-00
RES,VAR,TRMR:CERMET;25K OHM,20%,0.5W TK2073 GF06UT2 253 M L
A3R322
311-2239-00 RES,VAR,TRMR:CERMET;1 OOK OHM,20%,0.5W TK2073 GF06UT2 104 M L
A3R323
311-2239-00 RES,VAR,TRMR:CERMET;1 OOK OHM,20%,0.5W TK2073
GF06UT2 104
M L
A3R324
313-1682-00 RES,FXD,FILM:6.8K OHM,5%,0.2W 91637 CCF50-2-68000J
A3R325
315-0472-03
RES,FXD,CMPSN:4.7K OHM,5%,0.25W 50139 CB4725
A3R326
315-0103-03 RES,FXD,CMPSN:1 OK OHM,5%,0.25W 50139
CB1035
A3R329 315-0625-00 RES,FXD,FILM:6.2M OHM,5%,0.25W TK1727 SFR252322-181-
A3R330 313-1683-00 RES,FXD,FILM:68K OHM,5%,0.2W 91637 CCF50-2-6800IJ
A3R331 313-1823-00 RES,FXD,FILM:82K OHM,5%,0.2W 91637
CCF50-2-82001J
A3R332
313-1392-00 RES,FXD,FILM:3.9K OHM,5%,0.2W 91637 CCF50-2-39000J
(TAS475 ONLY)
A3R333 313-1392-00 RES,FXD,FILM:3.9K OHM,5%,0.2W 91637
CCF50 - 2 - 39000J
A3R350
322 - 3306 - 00 RES,FXD:METAL FILM;15K OHM,1%,0.2W 91637 CCF50-2-G1502F
A3R351
315-0201-02 RES,FXD,CMPSN:200 OHM,5%,0.25W 50139
CB2015
A3R352
313-1027-00 RES,FXD,FILM:2.70HM,5%,0.2W 91637 CT3-2R700J
A3R353
313-1027-00
RES,FXD,FILM:2.70HM,5%,0.2W
91637 CT3-2R700J
A3R360
301-0754-01 RES,FXD,CMPSN:750K OHM,5%,0.5W 50139 EB7545
A3R361
301-0394-00 RES,FXD,FILM:390K OHM,5%,0.5W 19701 5053CX 390KOJ
•
A3R362 301-0434-00 RES,FXD,FILM:430K OHM,5%,0.5W 19701 5053CX430KOJ
A3R363 301-0434-00 RES,FXD,FILM:430K OHM,5%,0.5W
19701
5053CX430KOJ
A3R364 322-0481-00 RES,FXD,FILM:1 M OHM,1 %,0.25W
91637 CMF6042G10003F
A3R365 322-0481-00 RES,FXD,FILM:1 M OHM,1 %,0.25W
91637
CMF6042G10003F
A3R366
322
- 3322 - 00
RES,FXD:METAL FILM;22.1 K OHM, 1 %,0.2W
91637 CCF501 G221 01 F
A3R367
301-0434-00 RES,FXD,FILM:430K OHM,5%,0.5W 19701 5053CX430KOJ
A3R368 321-0385-00
RES,FXD,FILM:100K OHM,1%,0.125W
19701
5043ED100KOF
A3R369 301-0434-00 RES,FXD,FILM:430K OHM,5%,0.5W 19701 5053CX430KOJ
A3R370
131-0566-00 BUS,CONDUCTOR:DUMMY RES,0.094 00 X 0.225L
24546 OMA0207
A3R371 322-3097-00 RES,FXD:METAL FILM;100 OHM,1%,0.2W
91637 CCF501 G1 OOROF
A3R373
313-1027-00 RES,FXD,FILM:2.70HM,5%,O.2W 91637 CT3-2R700J
(TAS485 ONLY)
A3U101 155-0322-00
MICROCKT,L1NEAR:VERTICAL OUTPUT AMPLIFIER 80009 155032200
(TAS475 ONLY)
A3U101 165-2393-00
MICROCKT,L1NEAR:VERTICAL OUTPUT 80009 165239300
(TAS485 ONLY)
A3U102 156-0158-00
IC,L1NEAR:BIPOLAR,OP-AMP;DUAL 01295
MC1458P
A3U201
156-0158-00 IC,L1NEAR:BIPOLAR,OP-AMP;DUAL 01295 MC1458P
A3VR201
152-0055-00 DIODE,ZENER:,;11V,5%,0.4W
04713 SZG35009K1
1 N96
A3VR360 152-0470-00 DIODE,ZENER:,;200V,5%,0.4W
04713
1N992BRL
•
A3VR361 152-0470-00 DIODE,ZENER:,;200V,5%,0.4W
04713
1N992BRL
8-20
Replaceable Electrical Parts
