Tektronix TekScope THS710A User Manual

MEAS
3–36
THS710A, THS720A, THS730A & THS720P User Manual

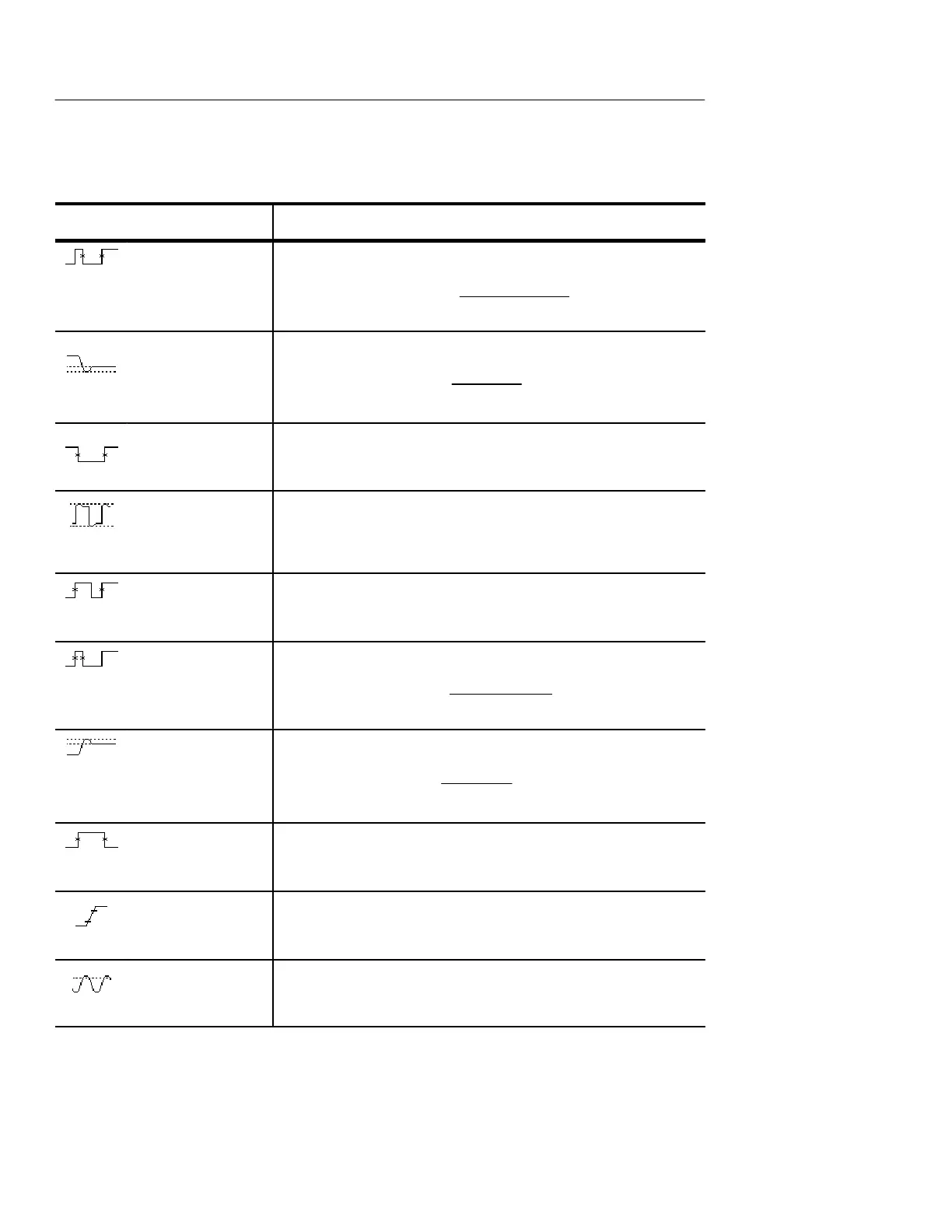

Scope-Mode Measurement Definitions (Cont.)
Name Definition
–Duty Measurement of the first cycle in the waveform.
Negative Duty Cycle 
Negative Width
Period
 100%
–Over Measured over the entire waveform.
Negative Overshoot 
Low–Min
Amplitude
 100%
–Width Measurement of the first negative pulse in the waveform.
The time between the 50% amplitude points.
Pk–Pk Measured over the entire waveform.
Amplitude = Max – Min
Period Time it takes for the first complete signal cycle to complete
in the waveform. Measured in seconds.
+Duty Measurement of the first cycle in the waveform.
Positive Duty Cycle 
Positive Width
Period
 100%
+Over Measured over the entire waveform.
Positive Overshoot 
Max–High
Amplitude
 100%
+Width Measurement of the first positive pulse in the waveform.
The time between the 50% amplitude points.
Rise Time that the leading edge of the first pulse in the waveform
takes to rise from 10% to 90% of its amplitude.
RMS The true Root Mean Square voltage over the entire
waveform.
