THS710A, THS720A, THS730A & THS720P User Manual
3–35

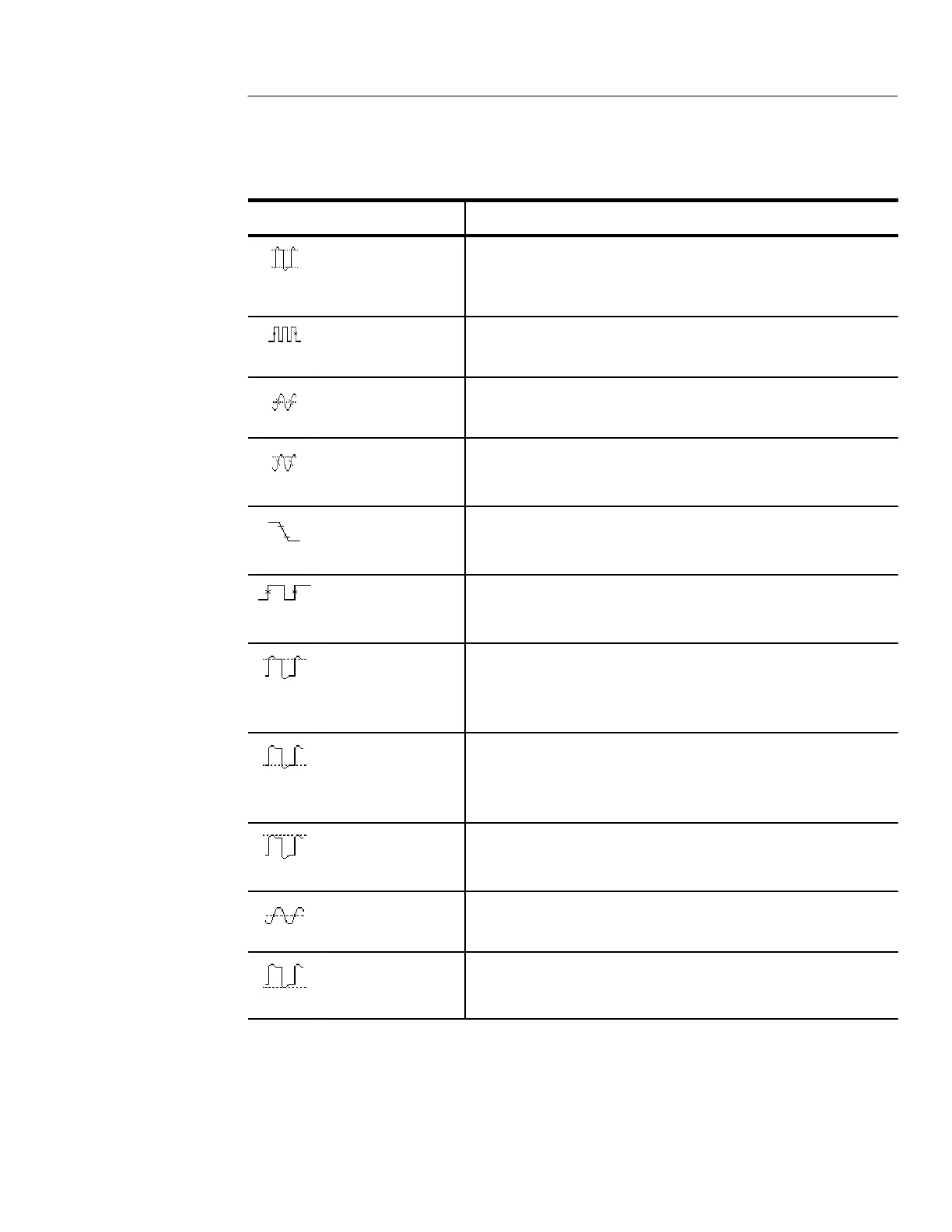

Scope-Mode Measurement Definitions
Name Definition
Ampl Measured over the entire waveform.
Amplitude = High (100%) – Low (0%)
BrstW The duration of a burst. Measured over the entire waveform.
cMean The arithmetic mean over the first cycle in the waveform.
cRMS The true Root Mean Square voltage over the first cycle in
the waveform.
Fall Time that the falling edge of the first pulse in the waveform
takes to fall from 90% to 10% of its amplitude.
Freq Reciprocal of the period of the first cycle in the waveform.
Measured in Hertz (Hz).
High The value used as 100%. Calculated using either the
min/max or the histogram method. Measured over the entire
waveform.
Low The value used as 0%. Calculated using either the min/max
or the histogram method. Measured over the entire
waveform.
Max The maximum amplitude. The most positive peak voltage
measured over the entire waveform.
Mean The arithmetic mean over the entire waveform.
Min The minimum amplitude. The most negative peak voltage
measured over the entire waveform.
