DISPLAY/HARMONICS
THS710A, THS720A, THS730A & THS720P User Manual
3–15

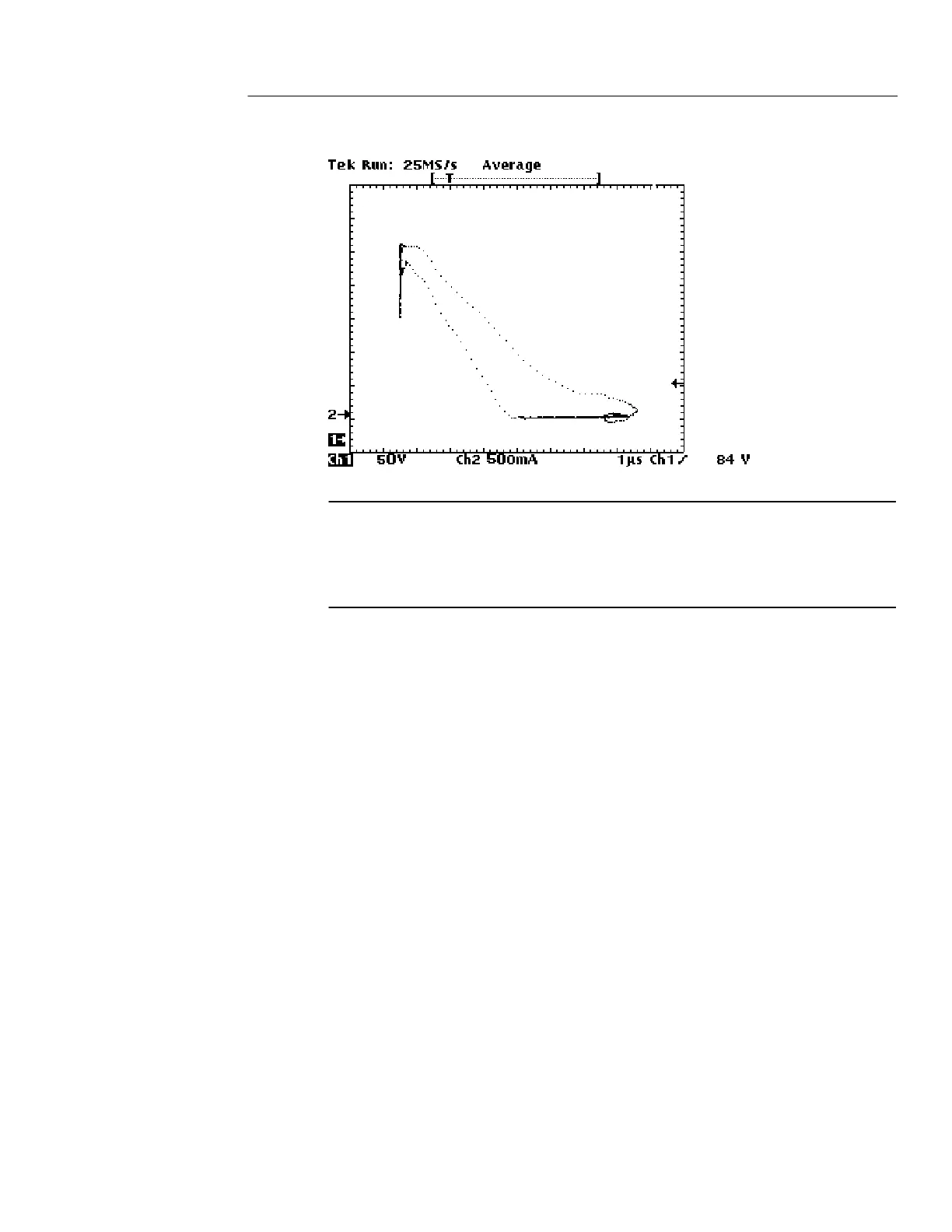

NOTE. The above XY-display example shows the I-V characteristic of
a switching power MOSFET. The current waveform, displayed in the
vertical axis, is measured using a Tektronix A6302 current probe and
AM503B current-probe amplifier.
The following functions do not work in XY display format:
H Ref or Math waveforms
H Cursors
H Horizontal MAG
H Autorange (resets display format to YT)
