Save an d Recall
6. A message will a
ppear asking if you want to continue to view mode, as data
on the display screen will be lost. Select YES to recall the selected setup.
7. Observe that t
he recalled setup is displayed and that STOP appears on the
screen.
8. Press the Ru
n/Stop button to exit view mode and resume measurements in
the recalled operating confi guration.
View Stored Screens
To scroll through the memories while looking at the stored screens, do the
following
:
1
Maximum USB memory size supported is 2 GB

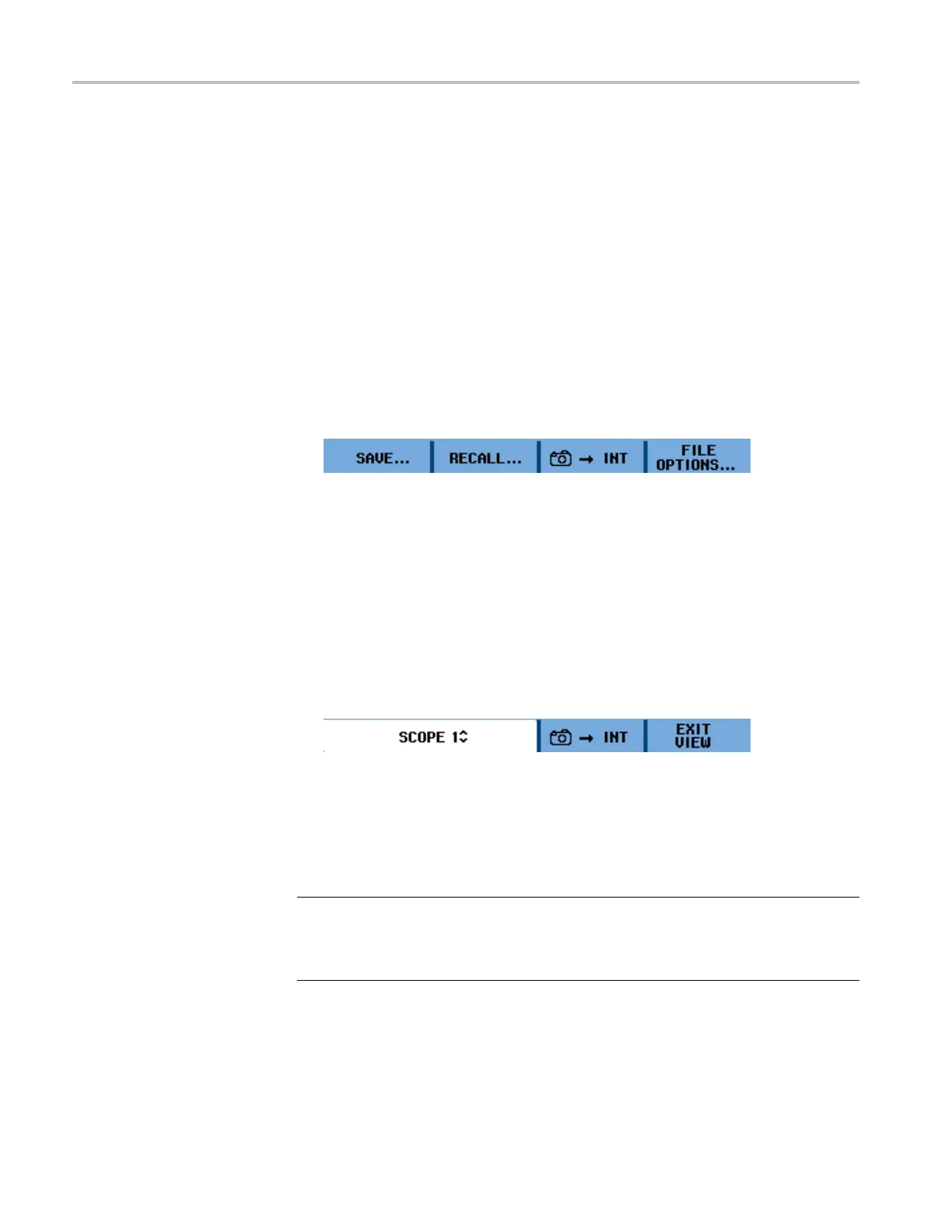

1. Press the Save button. Once the menu appears, the display screen will be
frozen.
2. Select RECALL.
3. Select the target memory: INT (internal memory) or USB (USB device).
4. Press the Enter button.
5. Highlight any file.
6. Selec
t VIEW.
7. A message will appear asking if you want to continue to view mode, as data
on th
e display screen w i ll be lost. Select YES to view the file and open the
viewer menu.
8. Use the up and down arrow keys to scroll through all stored s creens.
9. Select the function 3 button to save the screen to internal memory or a USB
device (if connected).
10. Press the Run/Stop button to exit view mode and resume me asurements.
NOTE. The replay screens of a saved record + setup cannot be viewed while the
instrument is in VIEW mode. Only the screen at the instant of saving can be
reviewed in this way. To see all replay screens, recall them from memory using the
RECALL option. (See page 74, Recall Screens with Associated Setups.)
76 THS3000 Series Oscilloscopes User Manual
