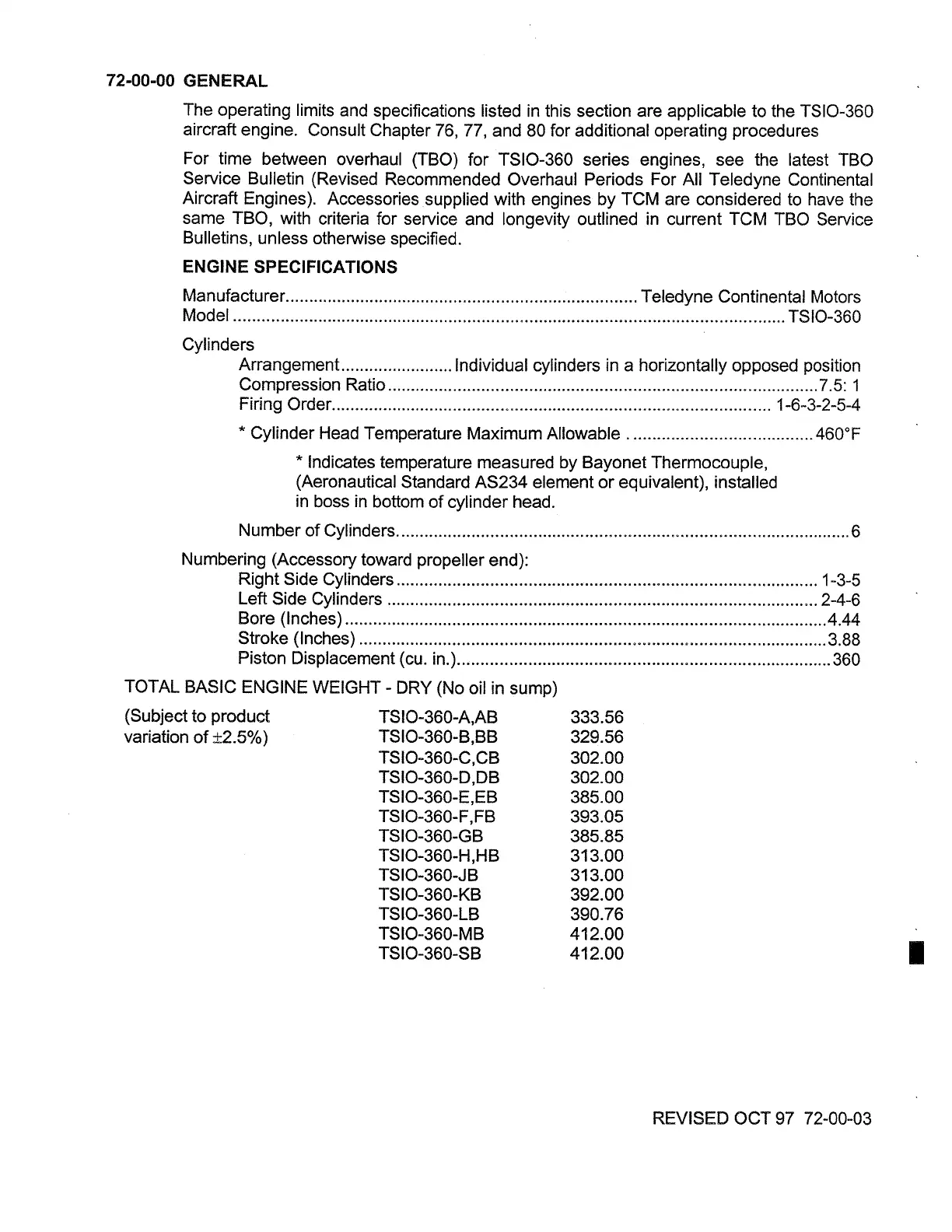

72-00-00 GENERAL
The operating limits and specifications listed in this section are applicable to the TSIO-360
aircraft engine. Consult Chapter 76, 77, and 80 for additional operating procedures
For time between overhaul (TBO) for TSIO-360 series engines, see the latest TBO
Service Bulletin (Revised Recommended Overhaul Periods For All Teledyne Continental
Aircraft Engines). Accessories supplied with engines by TCM are considered to have the
same PBO, with criteria for service and longevity outlined in current TCM
TB0 Service
Bulletins, unless otherwise specified.
ENGINE SPECIFICATIONS
........................................................................... Manufacturer Teledyne Continental Motors
..................................................................................................................... Model TSIO-368
Cylinders
........................ Arrangement Individual cylinders in a horizontally opposed position
Compression Ratio.
....................................................................................... 7.5: 1
Firing Order.
......................................................................................... 1-6-3-2-5-4
.......................................
* Cylinder Head Temperature Maximum Allowable 460°F
* Indicates temperature measured by Bayonet Thermocouple,
(Aeronautical Standard AS234 element or equivalent), installed
in boss in bottom of cylinder head.
Number of Cylinders.
.............................................................................................. 6
Numbering (Accessory toward propeller end):
Right Side Cylinders
......................................................................................... 1-3-5
Left Side Cylinders
........................................................................................... 2-4-6
Bore (Inches)
...................................................................................................... 4.44
Stroke (Inches)
................................................................................................... 3.88
Piston Displacement (cu. in.)
........................................................................... ... 360
TOTAL BASIC ENGINE WEIGHT
- DRY (No oil in sump)
(Subject to product
TSIO-360-A,AB
variation of -t2.5%) TSIO-360-B,BB
TSIOS60-C,CB
TSIO-360-D,DB
TSIO-360-E,EB
TSIO-360-F,FB
TSIO-36049
TSIO-360-H,HB
TSIO-36049
TSIO-360-KB
TSIO-360-LB
TSIO-360-MB
TSIO-360-SB
