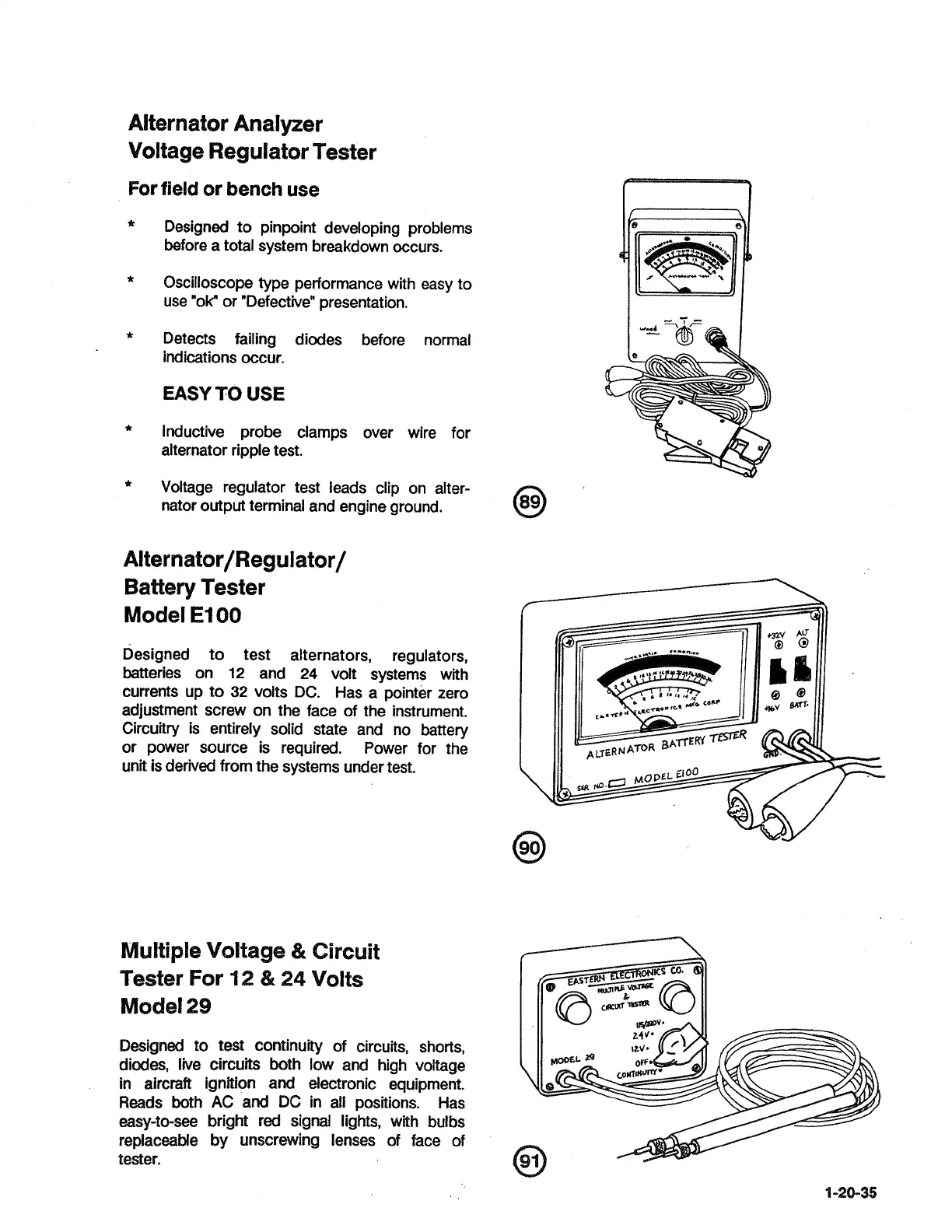

Teledyne TSIO-360-KB User Manual

Alternator Analyzer
Voltage Regulator Tester
For field or bench use
*
Designed to pinpoint developing problems
before a total system breakdown occurs.
*
Oscilloscope type performance with easy to
use
"ok" or "Defective" presentation.
* Detects failing diodes before normal
indications occur.
EASY TO USE
* Inductive probe clamps over wire for
alternator ripple test.
*
Vdtage regulator test leads clip on alter-
nator output terminal and engine ground.
Alternator/Regulator/
Battery Tester
Model
El 00
Designed to test alternators, regulators,
batteries on
12 and 24 volt systems with
currents up to
32 volts DC. Has a pointer zero
adjustment screw on the face of the instrument.
Circuitry is entirely solid state and no battery
or power source is required. Power for the
unit is derived from the systems under test.
Multiple VQItage & Circuit
fester For
12 & 24 Volts
Model
29
Designed to test continuity of circuits, shorts,
diades, live circuits both low and high voltage
in aircraft ignition and electronic equipment.
Reads both
A6 and DC in all positions, Has
easy-to-see bright red signal lights, with bulbs
repiaceaMe by unscrewing lenses of face of
tester.

Teledyne TSIO-360-KB Specifications

General

Brand	Teledyne
Model	TSIO-360-KB
Category	Engine
Language	English
