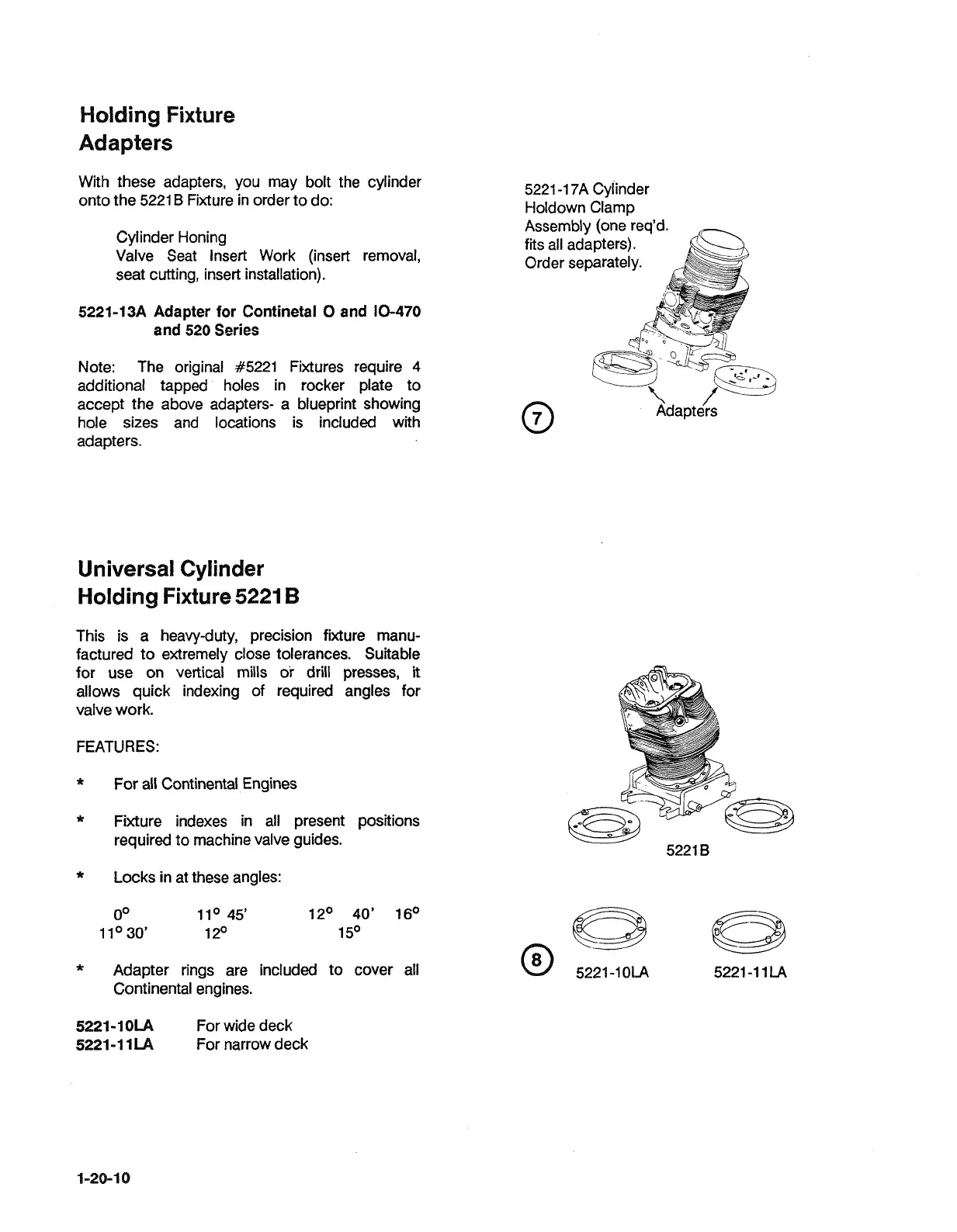

Holding Fixture
Adapters
With these adapters, you may bolt the cylinder
onto the 5221
B
Fixture in order to do:
Cylinder Honing
Valve Seat
Insert Work (insert removal,
seat cutting, insert installation).
5221-13A Adapter for Continetal
0
and 10-470
and 520 Series
Note: The original
#5221 Fixtures require
4
additional tapped holes in rocker plate to
accept the above adapters- a blueprint showing
hole sizes and locations is included with
adapters.
Universal Cylinder
Holding Fixture
5221
B
This is a heavy-duty, precision fixture manu-
factured to extremely close tolerances.
Suitable
for use on vertical mills or drill presses,
it
allows quick indexing of required angles for
valve work.
FEATURES:
*
For all Continental Engines
*
Fixture indexes in all present positions
required to machine valve guides.
*
Locks in at these angles:
*
Adapter rings are included to cover all
Continental engines.
5221 -1 7A Cylinder
Holdown Clamp
Assembly (one req'd.
fits all
Order
'
/
Adapters
5221-1
0LA For wide deck
5221-llLA For narrow deck
