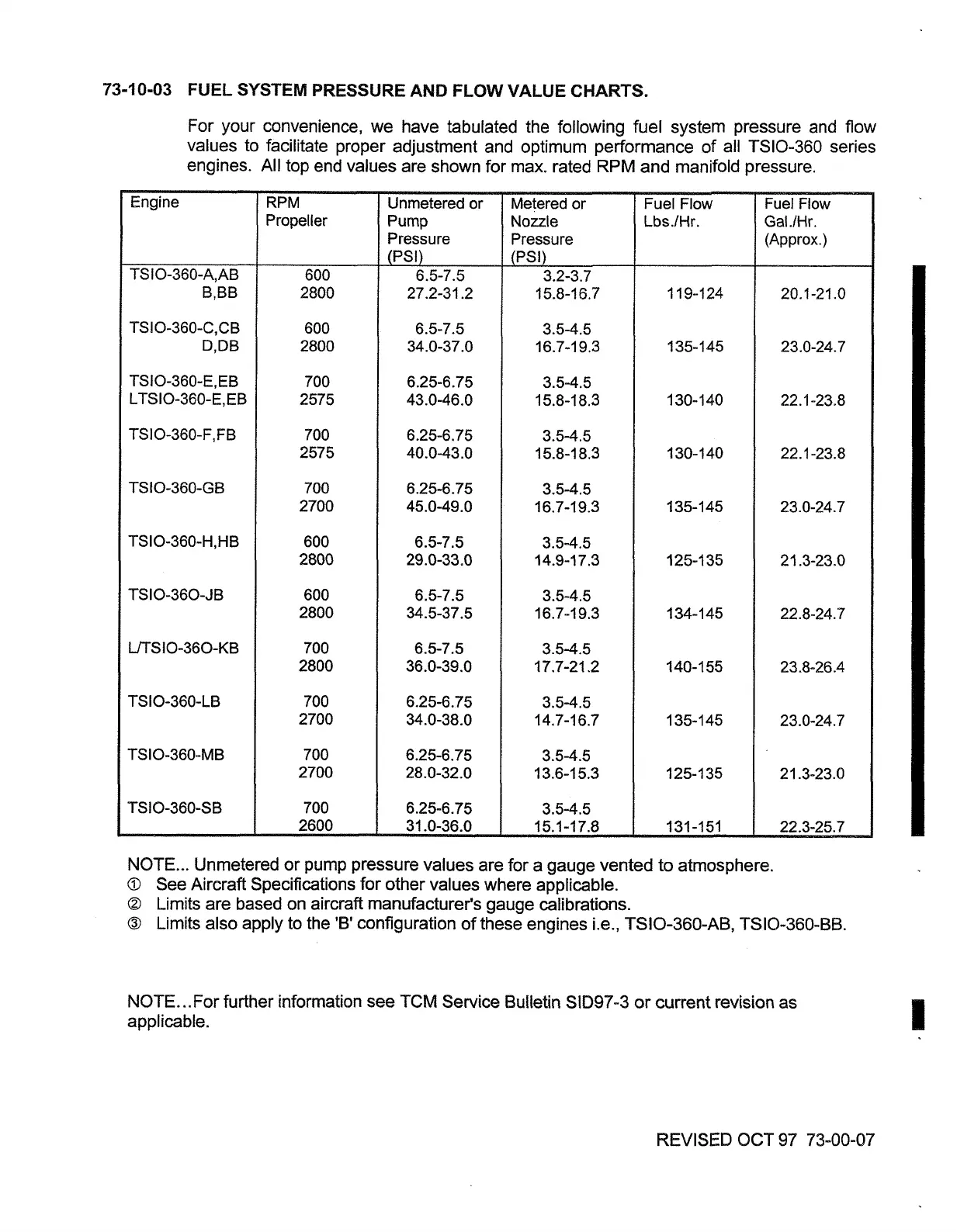

73-10-03
FUEL SYSTEM PRESSURE
AND FLOW VALUE
CHARTS.
For your convenience, we have tabulated the following fuel system pressure and flow
values to facilitate proper adjustment and optimum performance of all TSIO-360 series
engines. All top end values are shown for max. rated
RPM
and manifold pressure.
NOTE
...
Unmetered or pump pressure values are for a gauge vented to atmosphere.
O
See Aircraft Specifications for other values where applicable.
O
Limits are based on aircraft manufacturer's gauge calibrations.
O
Limits also apply to the
'B'
configuration of these engines i.e., TSIO-360-AB, TSIQ-360-BB.
NOTE..
.
For further information see TCM Service Bufletin SlD97-3 or current revision as
applicable.
