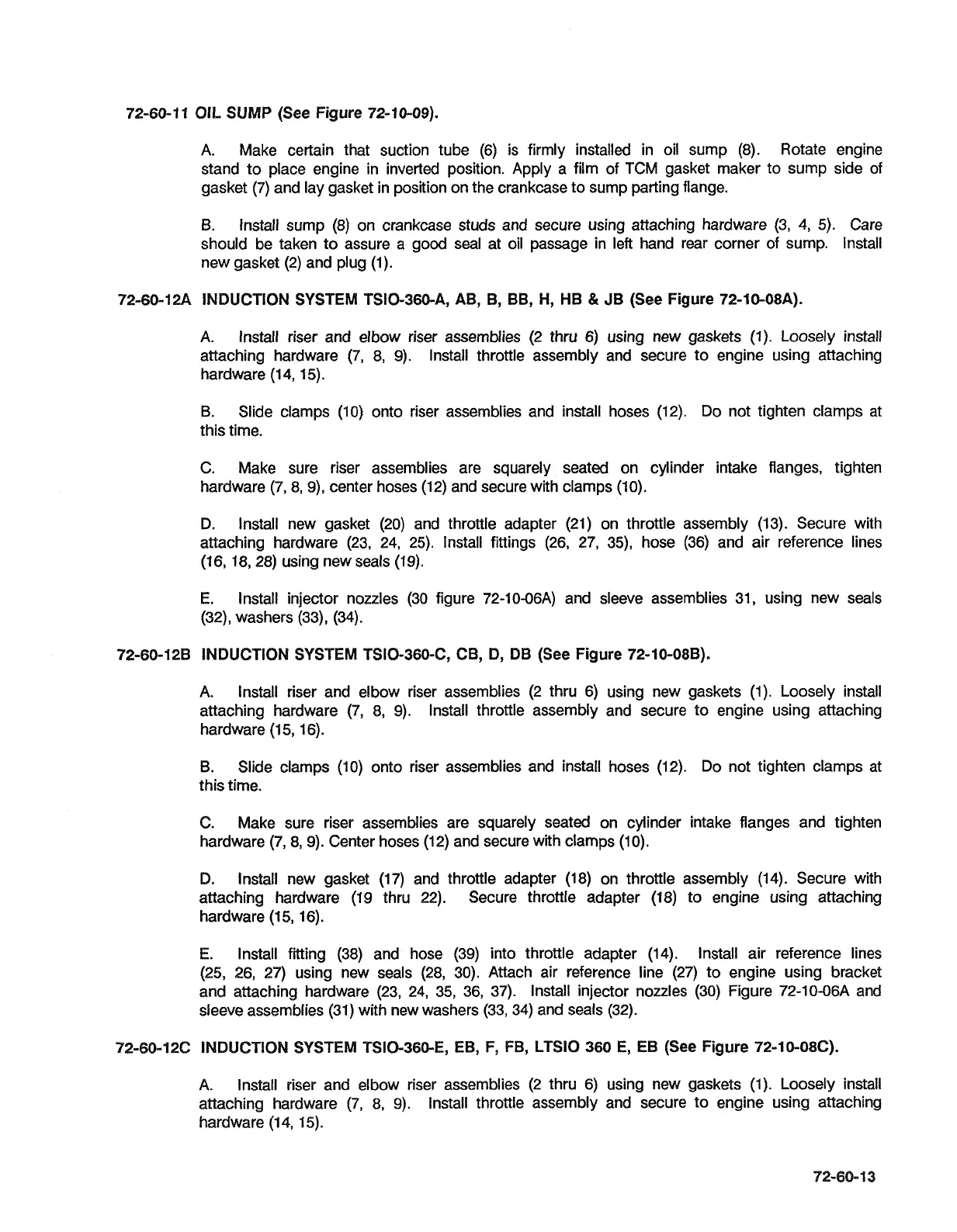

72-60-1
1
Olb
SUMP
(See Figure 72-10-09).
A.
Make certain that suction tube
(6)
is firmly installed
in oil sump
(8).
Rotate engine
stand to place engine in inverted position. Apply a film of TCM gasket maker to sump side of
gasket
(7)
and lay gasket in position on the crankcase to sump parting flange.
8.
lnstall sump
(8)
on crankcase studs and secure using attaching hardware
(3, 4, 5).
Care
should be taken to assure a good seal at oil passage in left hand rear corner of sump. lnstall
new gasket
(2)
and plug
(1).
72-60-12A INDUCTION SYSTEM TSIO-360-A, AB, B,
BB,
H, HB
&
JB (See Figure 72-10-08A).
A.
Install riser and elbow riser assemblies
(2
thru
6)
using new gaskets (1). Loosely install
attaching hardware
(7, 8, 9).
lnstall throttle assembly and secure to engine using attaching
hardware
(1 4,15).
B.
Slide clamps
(10)
onto riser assemblies and install hoses
(12).
Do not tighten clamps at
this time.
C. Make sure riser assemblies are squarely seated on cylinder intake flanges, tighten
hardware
(7, 8,9),
center hoses
(12)
and secure with clamps
(10).
D.
lnstall new gasket
(20)
and throttle adapter
(21)
on throttle assembly
(13).
Secure with
attaching hardware
(23, 24, 25).
lnstall fittings
(26, 27, 35),
hose
(36)
and air reference lines
(1 6,
18,
28)
using new seals
(1 9).
E.
lnstall injector nozzles
(30
figure
72-10-06A)
and sleeve assemblies
31,
using new seals
(32),
washers
(33), (34).
72-60-128 INDUCTION SYSTEM TSIO-3604, CB, D, DB (See Figure 72-10-08B).
A.
lnstall riser and elbow riser assemblies
(2
thru
6)
using new gaskets (1). Loosely install
attaching hardware
(7,
8,
9).
lnstall throttle assembly and secure to engine using attaching
hardware
(1 5,16).
B.
Slide clamps (10) onto riser assemblies and install hoses (12). Do not tighten clamps
at
this time.
C.
Make sure riser assemblies are squarely seated on cylinder intake flanges and tighten
hardware
(7,8,9).
Center hoses (1
2)
and secure with clamps
(1
0).
D.
Install new gasket
(17)
and throttle adapter
(18)
on throttle assembly
(14).
Secure with
attaching hardware
(19
thru
22).
Secure throttle adapter
(18)
to engine using attaching
hardware
(1
5,
16).
E.
lnstall fming
(38)
and hose
(39)
into throttle adapter
(14).
lnstall air reference lines
(25,
26,
27)
using new seals
(28, 30).
Attach air reference line
(27)
to engine using bracket
and attaching hardware
(23, 24, 35, 36, 37).
lnstall injector nozzles
(30)
Figure
72-10-06A
and
sleeve assemblies
(31)
with new washers
(33, 34)
and seals
(32).
92-60-12C INDUCTION SYSTEM TSIO-360-E, EB, F,
FB,
LTSIO 360
E,
EB (See Figure 72-10-08C).
A.
Install riser and elbow riser assemblies
(2
thru
6)
using new gaskets
(1).
Loosely install
attaching hardware
(7,
8,
9).
Install throttle assembly and secure to engine using attaching
hardware
(1 4, 15).
