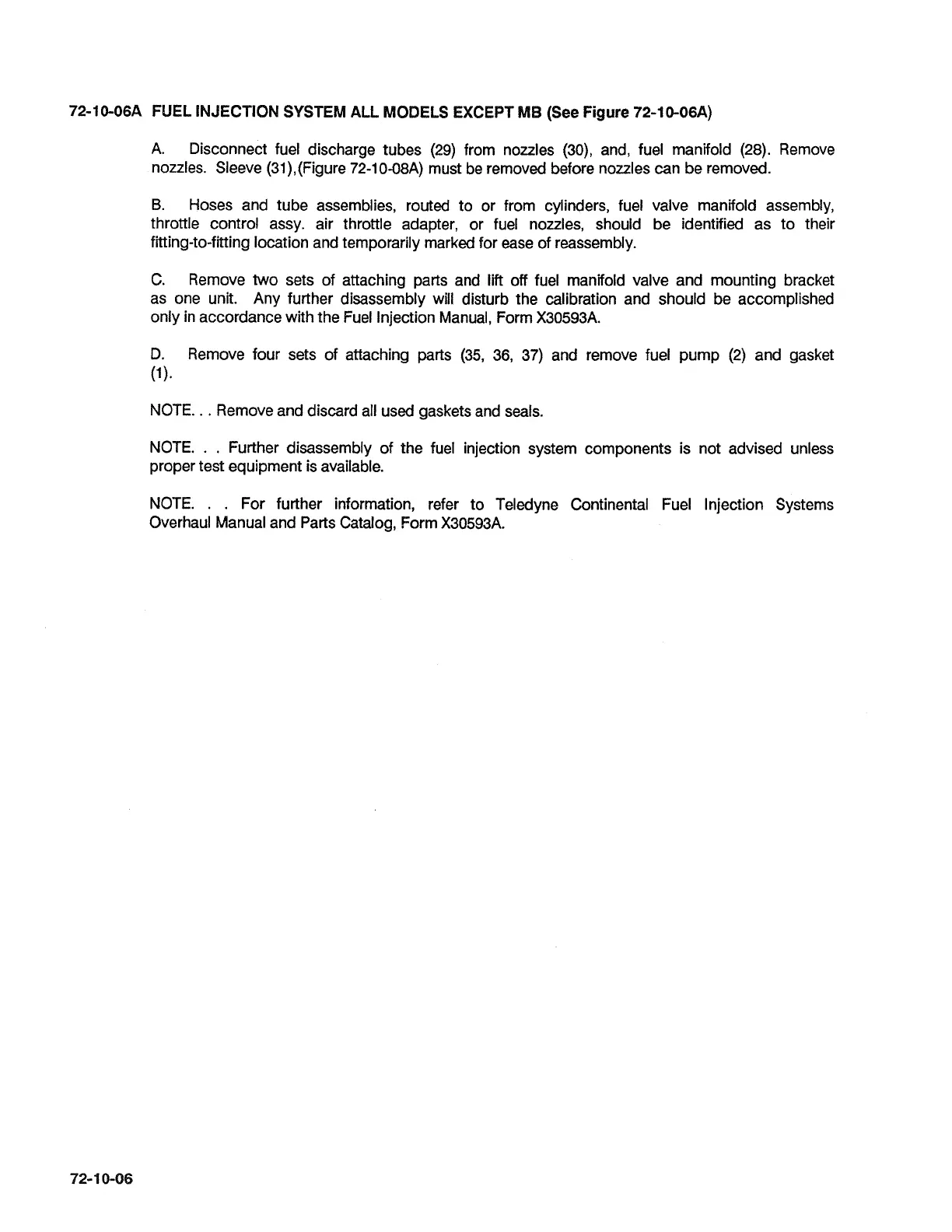

72-10-06A FUEL INJECTION SYSTEM ALL MODELS EXCEPT
MB
(See
Figure
72-10-06A)
A.
Disconnect fuel discharge tubes (29) from nozzles
(30), and, fuel manifold (28). Remove
nozzles. Sleeve
(31),(Figure 72-10-08A) must be removed before nozzles can be removed.
8.
Hoses and tube assemblies, routed to or from cylinders, fuel valve manifold assembly,
throttle control assy. air throttle adapter, or fuel nozzles, should be identified as to their
fiing-to-fiing location and temporarily marked for ease of reassembly.
C.
Remove two sets of attaching parts and lift off fuel manifold valve and mounting bracket
as one unit. Any further disassembly will disturb the calibration and should be accomplished
only in accordance with the Fuel Injection Manual, Form
X30593A.
D.
Remove four sets of attaching parts (35,
36,
37) and remove fuel pump (2) and gasket
(1).
NOTE.
.
. Remove and discard all used gaskets and seals.
NOTE.
.
.
Further disassembly of the fuel injection system components is not advised unless
proper test equipment is available.
NOTE.
.
.
For further information, refer to Teledyne Continental Fuel Injection Systems
Overhaul Manual and Parts Catalog, Form
X30593A.
