Teledyne TSIO-360-KB User Manual

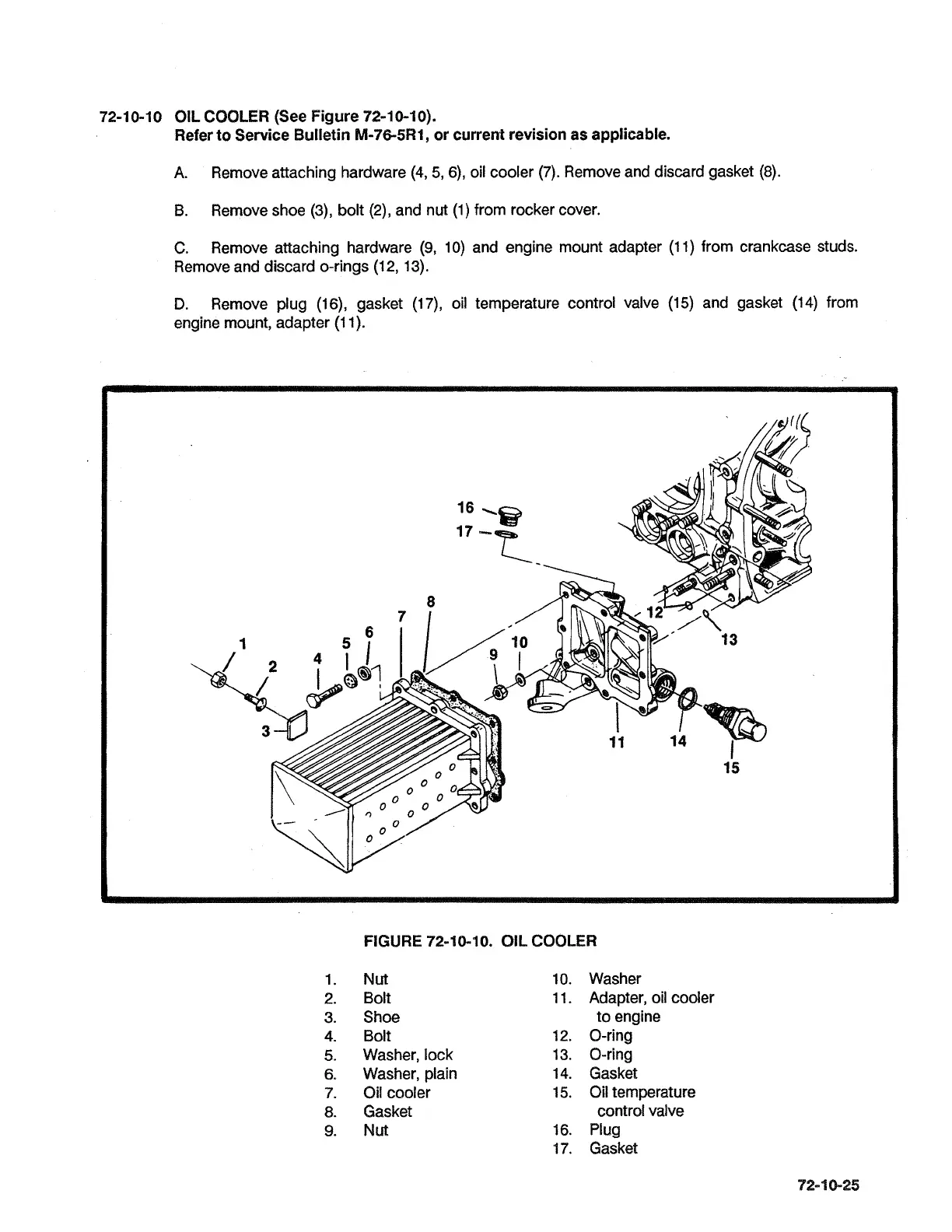

72-10-10 OIL COOLER (See Figure 72-10-10).
Refer to Service Bulletin M-76-5R1, or current revision as applicable.
A.
Remove attaching hardware
(4,5, 6), oil cooler (7). Remove and discard gasket (8).
6. Remove shoe (3), bolt (2), and nut (1) from rocker cover.
C.
Remove attaching hardware (9, 10) and engine mount adapter (1 1) from crankcase studs.
Remove and discard o-rings (1
2, 13).
D.
Remove plug (16), gasket (17), oil temperature control valve (15) and gasket (14) from
engine mount, adapter
(1 1).
FIGURE
72-10-10. OIL COOLER
Nut
Bolt
Shoe
Bolt
Washer, lock
Washer, plain
Oil
c~oler
Gasket
Nut
Washer
Adapter, oil
cooler
to engine
O-ring
O-ring
Gasket
Oil temperature
control valve
Plug
Gasket
