Teledyne TSIO-360-KB User Manual

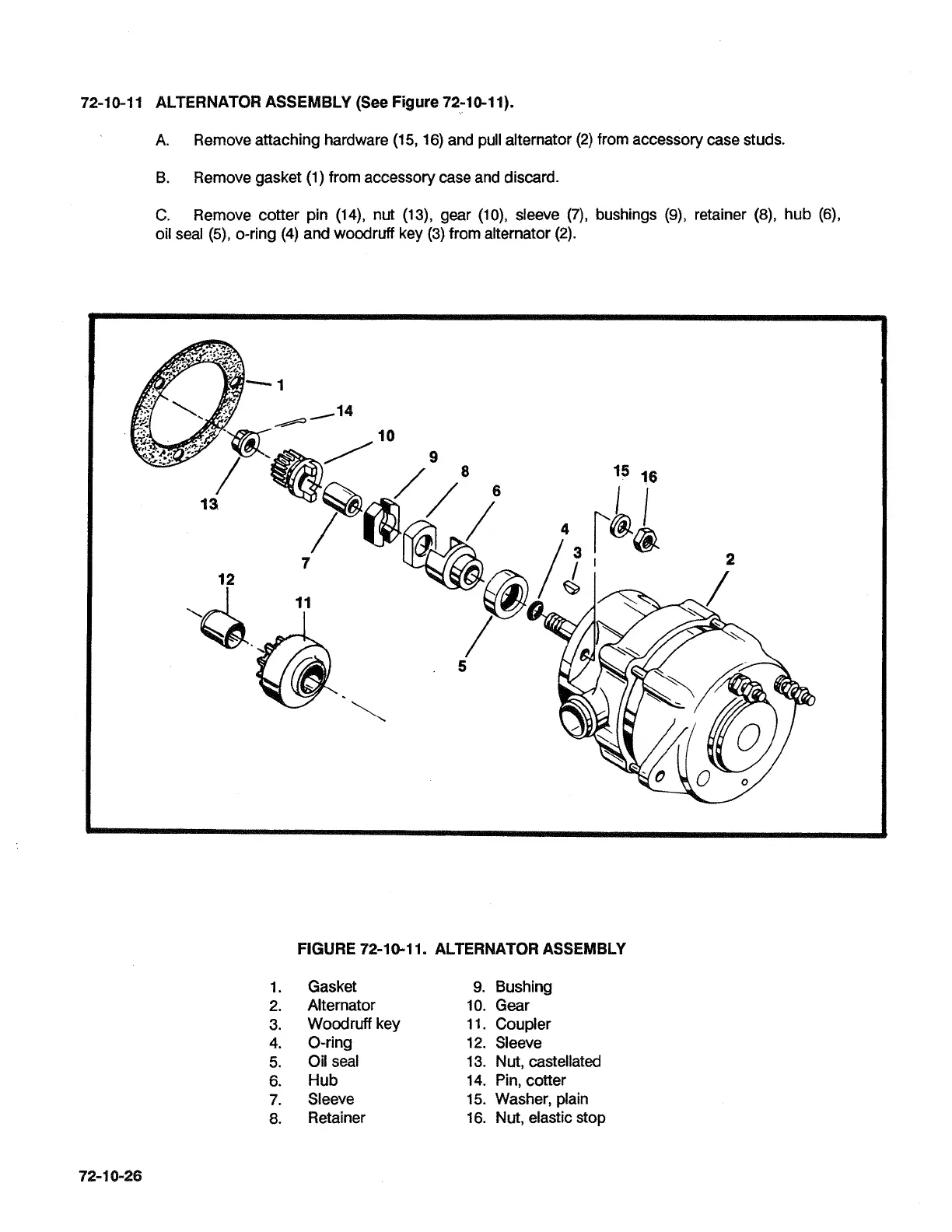

72-10-1 1 ALTERNATOR ASSEMBLY (See Figure 72-10.1 1).
A.
Remove attaching hardware (15, 16) and pull alternator (2) from accessory case studs.
B.
Remove gasket (1) from accessory case and discard.
C.
Remove cotter pin (14), nut (13), gear (lo), sleeve (7), bushings (9), retainer (8), hub (6),
oil seal (5), o-ring (4) and woodruff key (3) from alternator (2).
FIGURE 72-10-1 1. ALTERNATOR ASSEMBLY
1.
Gasket
2. Alternator
3. Woodruffkey
4. O-ring
5. Oil seal
6. Hub
7. Sleeve
8. Retainer
9. Bushing
10. Gear
11. Coupler
12. Sleeve
13. Nut, castellated
14. Pin, cotter
15. Washer, plain
16. Nut, elastic stop
