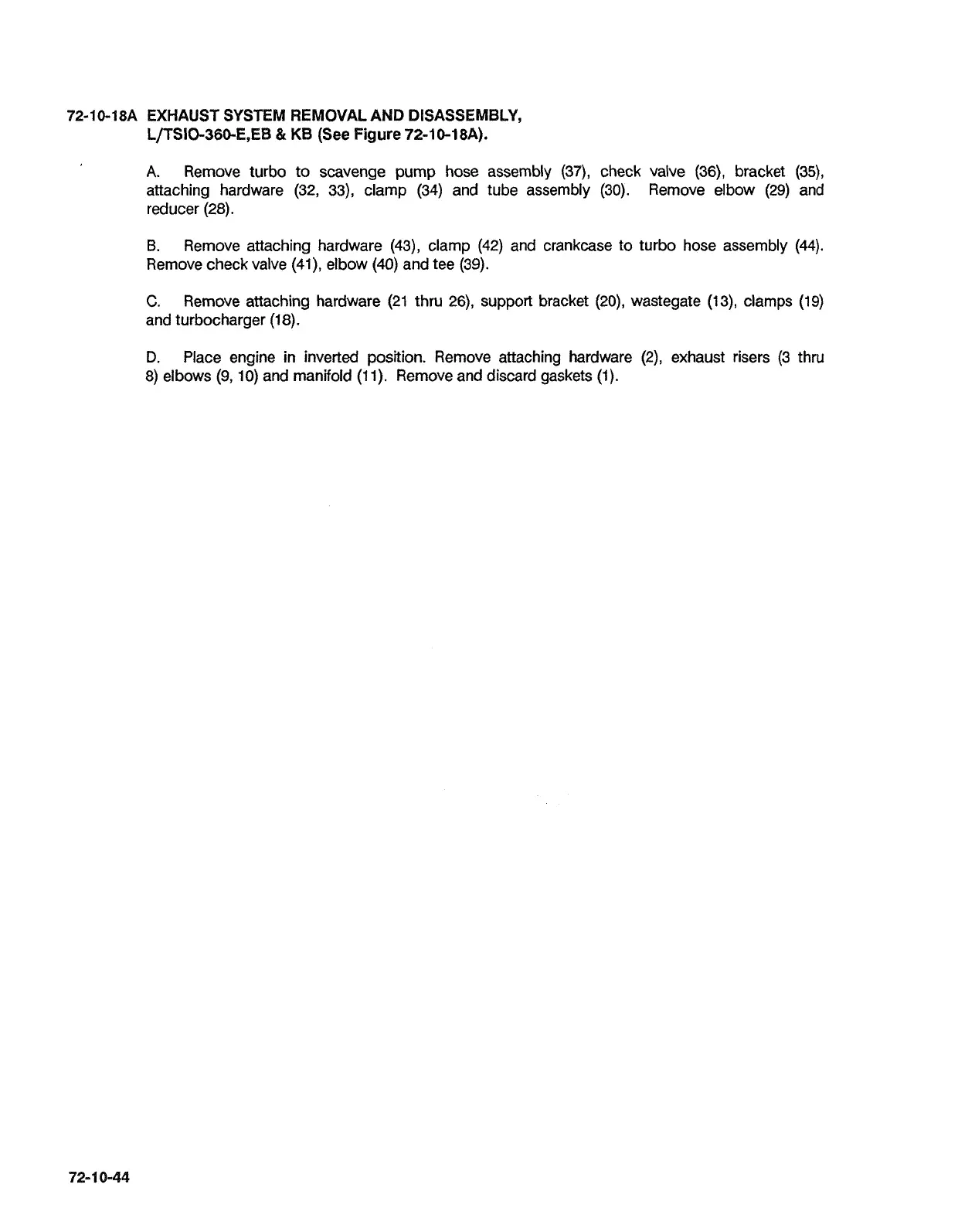

72-10-18A EXHAUST SYSTEM REMOVAL AND DISASSEMBLY,
L/TSIO-360-E,EB
&
KB
(See
Figure
72-1
0-1
8A).
A.
Remove turbo to scavenge pump hose assembly (37), check valve
(36),
bracket (35),
attaching hardware (32, 33), clamp (34) and tube assembly (30).
Remove elbow
(29)
and
reducer
(28).
B.
Remove attaching hardware (43), clamp (42) and crankcase to turbo hose assembly
(44).
Remove check valve (41), elbow
(40)
and tee (39).
C.
Remove attaching hardware (21 thru 26), support bracket (20)' wastegate (13), clamps (19)
and turbocharger (1
8).
D.
Place engine in inverted position. Remove attaching hardware
(2),
exhaust risers (3 thru
8)
elbows
(9,
10) and manifold (11). Remove and discard gaskets (1).
