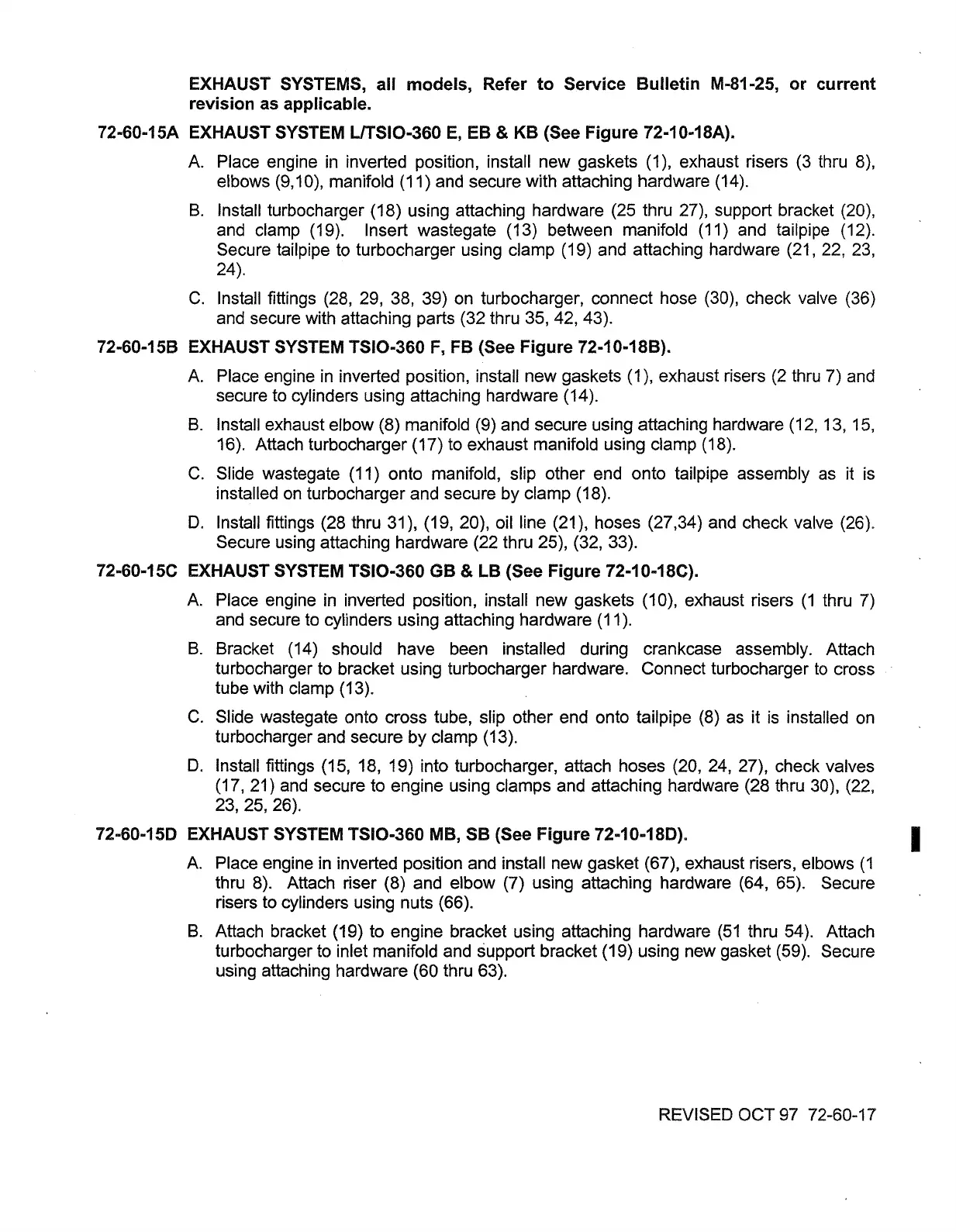

EXHAUST SYSTEMS, all models, Refer to Service Bulletin M-81-25, or current
revision as applicable.
72-60-1
5A EXHAUST SYSTEM LITSIO-360 E, EB
&
KB (See Figure 72-1 0-1 8A).
A. Place engine in inverted position, install new gaskets (I), exhaust risers (3 thru 8),
elbows
(9,10), manifold (I I) and secure with attaching hardware (14).
B. Install turbocharger (18) using attaching hardware (25 thru
27), support bracket (20),
and clamp (19). Insert wastegate (13) between manifold (1 1) and tailpipe (12).
Secure tailpipe to turbocharger using clamp (19) and attaching hardware (21, 22, 23,
24).
C.
Install fittings (28, 29, 38, 39) on turbocharger, connect hose (30), check valve (36)
and secure with attaching parts (32 thru 35, 42, 43).
72-60-1 58 EXHAUST SYSTEM TSIO-360
F,
FB (See Figure 72-1 0-1 88).
A. Place engine in inverted position, install new gaskets (I), exhaust risers
(2
thru 7) and
secure to cylinders using attaching hardware (14).
B. lnstall exhaust elbow (8) manifold (9) and secure using attaching hardware (1 2, 13, 15,
16). Attach turbocharger (17) to exhaust manifold using clamp (1
8).
C.
Slide wastegate (1 1) onto manifold, slip other end onto tailpipe assembly as it is
installed on turbocharger and secure by clamp (18).
D.
Install fittings (28 thru 31), (19, 20), oil line (21), hoses (27,34) and check valve (26).
Secure using attaching hardware (22 thru
25), (32, 33).
72-60-1 5C EXHAUST SYSTEM TSIO-360 GB
&
LB (See Figure 72-10-18C).
A. Place engine in inverted position, install new gaskets (lo), exhaust risers (I thru
7)
and secure to cylinders using attaching hardware (1 1).
B.
Bracket (14) should have been installed during crankcase assembly. Attach
turbocharger to bracket using turbocharger hardware. Connect turbocharger to
cross
tube with clamp (13).
C.
Slide wastegate onto cross tube, slip other end onto tailpipe (8) as it is installed on
turbocharger and secure by clamp (1 3).
D.
Install fittings (15, 18, 19) into turbocharger, attach hoses (20, 24, 27), check valves
(17, 21) and secure to engine using clamps and attaching hardware (28 thru
30), (22,
23, 25, 26).
72-60-151) EXHAUST SYSTEM TSIO-360 MB, SB (See Figure 72-10-181)).
I
A. Place engine in inverted position and install new gasket (67), exhaust risers, elbows
(4
thru
8).
Attach riser (8) and elbow
(7)
using attaching hardware (64, 65). Secure
risers to cylinders using nuts (66).
€3.
Attach bracket (19) to engine bracket using attaching hardware (51 thru 54). Attach
turbocharger to inlet manifold and support bracket (1 9) using new gasket (59). Secure
using attaching hardware (60 thru 63).
REVISED
6CT
97 72-60-1
