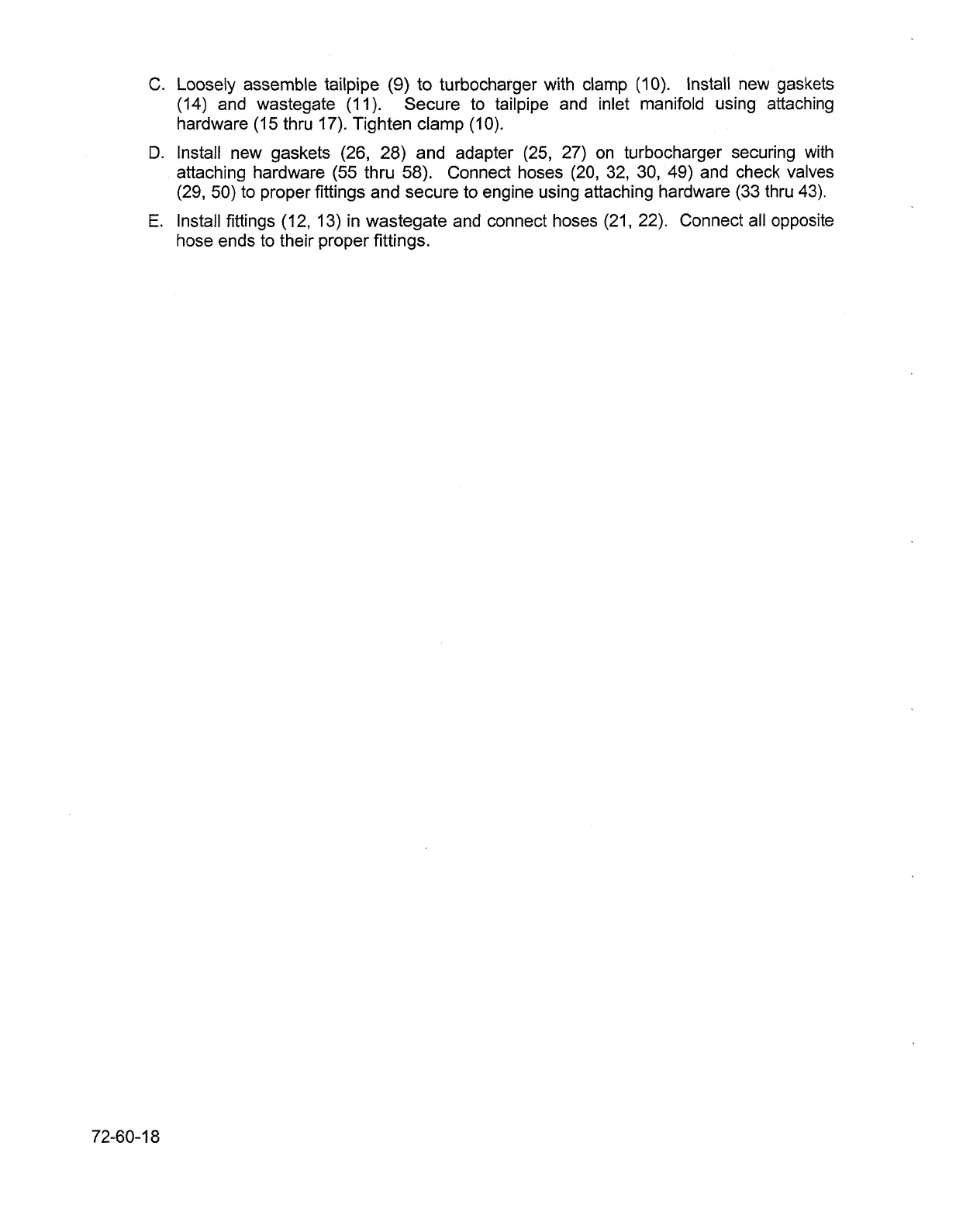

C.
Loosely assemble tailpipe
(9)
to turbocharger with clamp (10). Install new gaskets
(14) and wastegate (11).
Secure to tailpipe and inlet manifold using attaching
hardware (15 thru 17). Tighten clamp
(1 0).
D.
Install new gaskets (26, 28) and adapter (25, 27) on turbocharger securing with
attaching hardware (55 thru 58). Connect hoses (20, 32, 30, 49) and check valves
(29, 50) to proper fittings and secure to engine using attaching hardware (33 thru 43).
E.
Install fittings (12, 13) in wastegate and connect hoses (21, 22). Connect all opposite
hose ends to their proper fittings.
