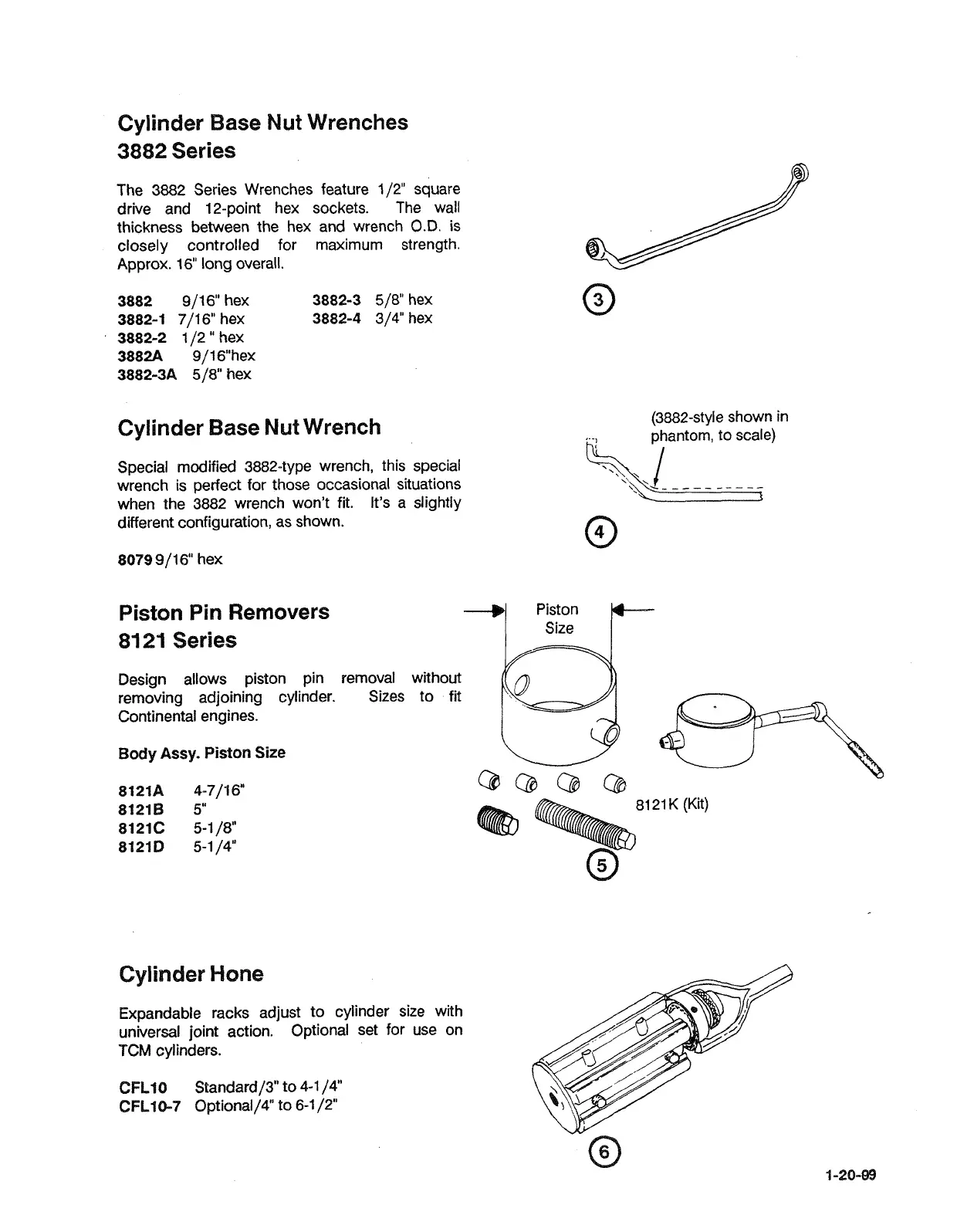

Cylinder Base Nut Wrenches
3882 Series
The 3882 Series Wrenches feature 1/2" square
drive and 12-point hex sockets. The wall
thickness between the hex and wrench
O.D. is
closely controlled for maximum strength.
Approx. 16" long overall.
3882 9/16 hex 3882-3 5/8" hex
3882-1 7/16" hex 3882-4 3/4" hex
3882-2 112 " hex
3882A 9/16"hex
3882-3A 518" hex
Cylinder Base Nut Wrench
Special modified 3882-type wrench, this special
wrench is
perfed for those occasional situations
when the 3882 wrench won't fit. It's
a slightly
different configuration,
as shown.
(3882-style shown in
TI phantom, to scale)
8079 9/16" hex
Piston Pin Removers
8121 Series
Design allows piston pin removal without
removing adjoining cylinder. Sizes to
fit
Continental engines.
Body Assy. Piston Size
8121A 4-7/16"
81218 5"
8121C 5-1/8"
81210 5-1 /4'"
Cylinder Hone
Expandable racks adjust to cylinder size with
universal joint action. Optional set for use on
TCM cylinders.
