Common Parts Kit
Does not include Expanding Guide Bodies or
cutting
tools.
See
below.
Select Size Parts are not part of
8116
kit.
You
buy only what you need (reamers, expanding
guide bodies, boring bars, etc.).

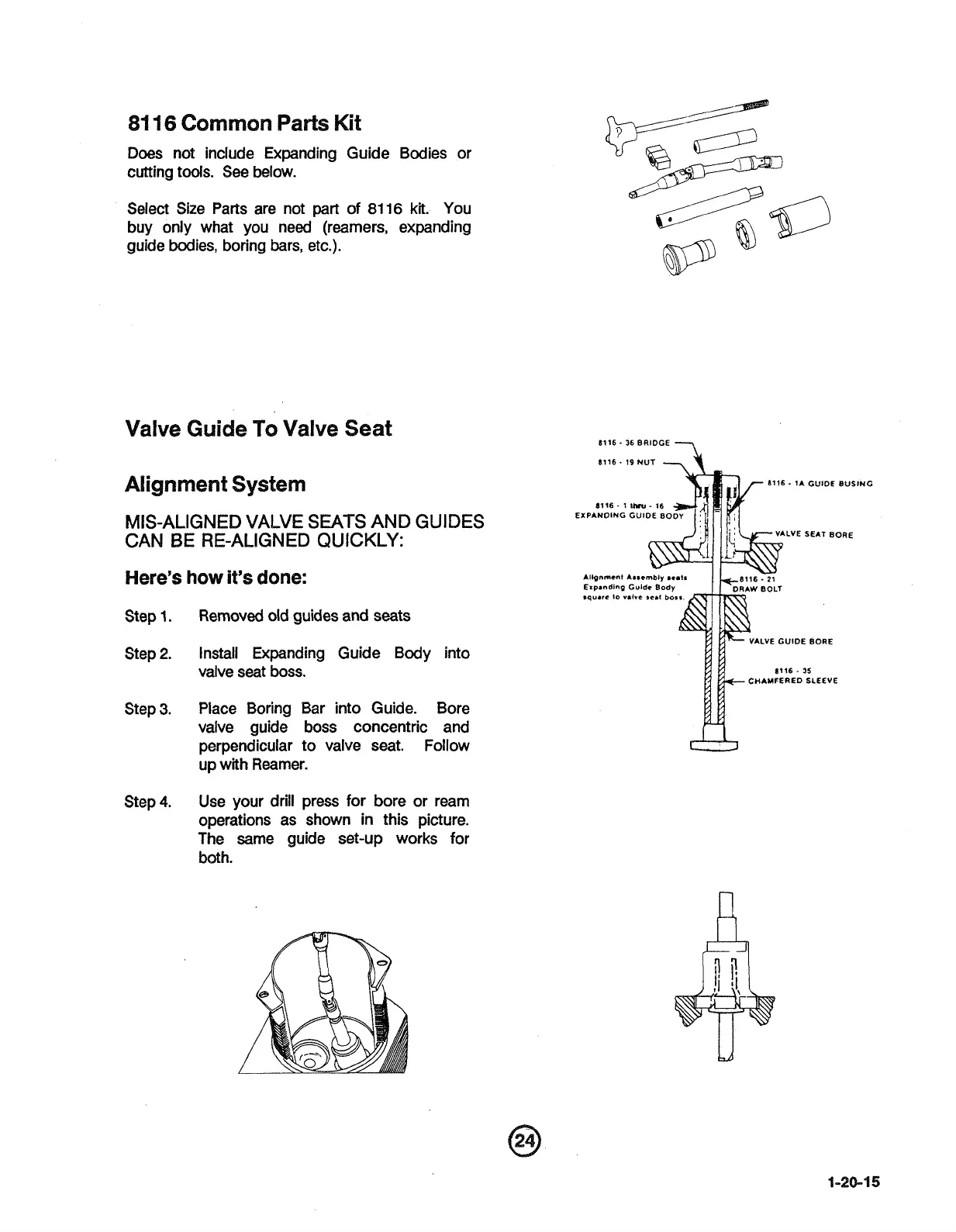

Valve Guide To Valve Seat
Alignment System
MIS-ALIGNED VALVE SEATS AND GUIDES
CAN
BE
RE-ALIGNED QUICKLY:
Here's
how
it's
done:
Step
1.
Removed old guides and seats
Step
2.
Install Expanding Guide Body into
valve seat boss.
Step
3.
Place Boring Bar into Guide. Bore
valve guide boss concentric and
perpendicular to valve seat. Follow
up with Reamer.
Step
4.
Use your drill press for bore or ream
operations as shown in this picture.
The same guide set-up works for
both.
8116
-
36 BRIDGE
7
1116.
19
NUT
-
$
8116
-
1A GUIDE BUSING
8116.
1
t(Vu
-
16
EXPANDING GUIDE 80
LVE SEAT BORE
aquare
lo
v*lvt real
bor.
VALVE GUIDE BORE
CUAMFERED SLEEVE
