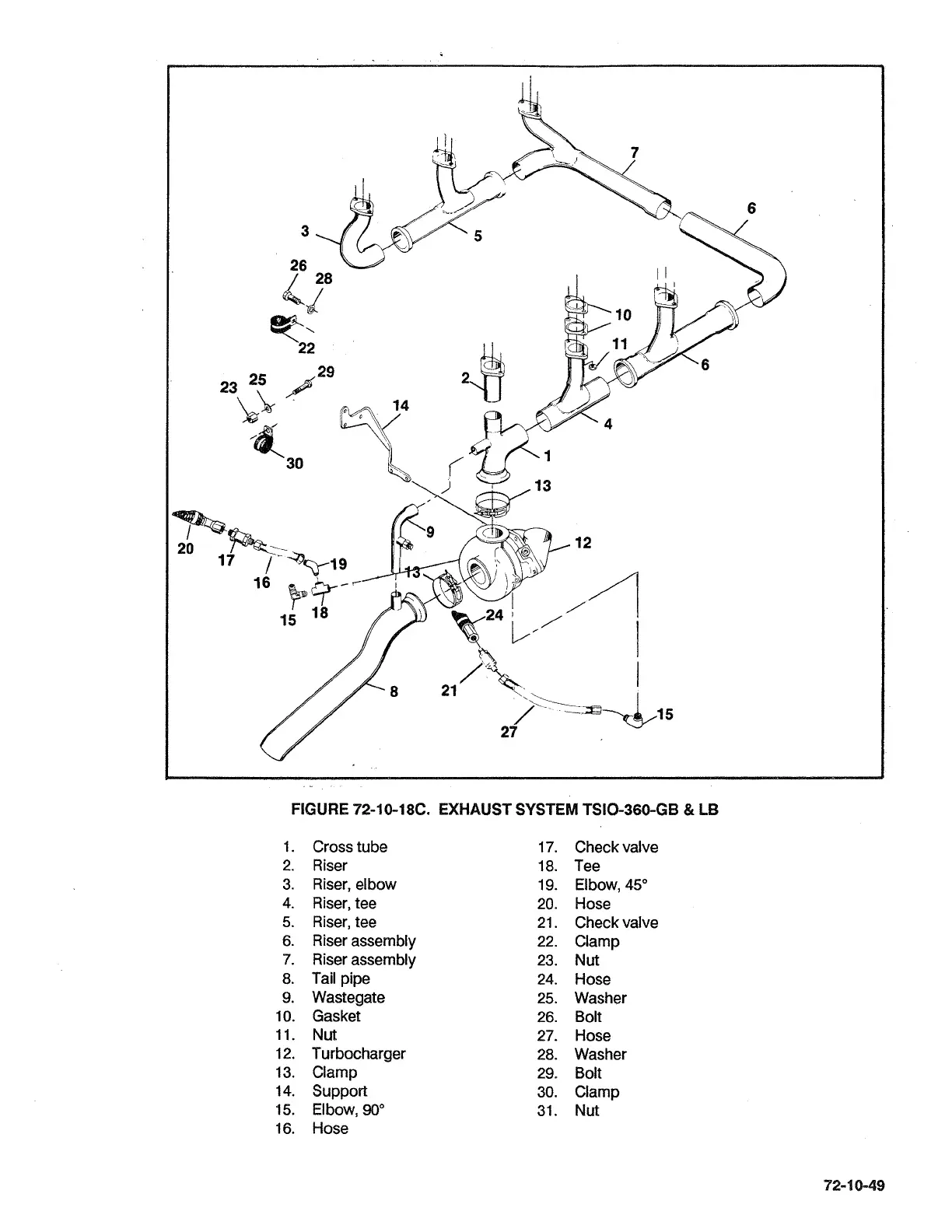

FIGURE
92-10-18C.
EXHAUST SYSTEM TSlO-360-GB
&
LB
Cross tube
Riser
Riser, elbow
Riser, tee
Riser, tee
Riser assembly
Riser assembly
Tail pipe
Wastegate
Gasket
Nut
Turbocharger
Clamp
Suppoft
Elbow,
90"
Hose
Check valve
Tee
Elbow,
45"
Hose
Check valve
Clamp
Nut
Hose
Washer
Bolt
Hose
Washer
Bolt
Clamp
Nut
